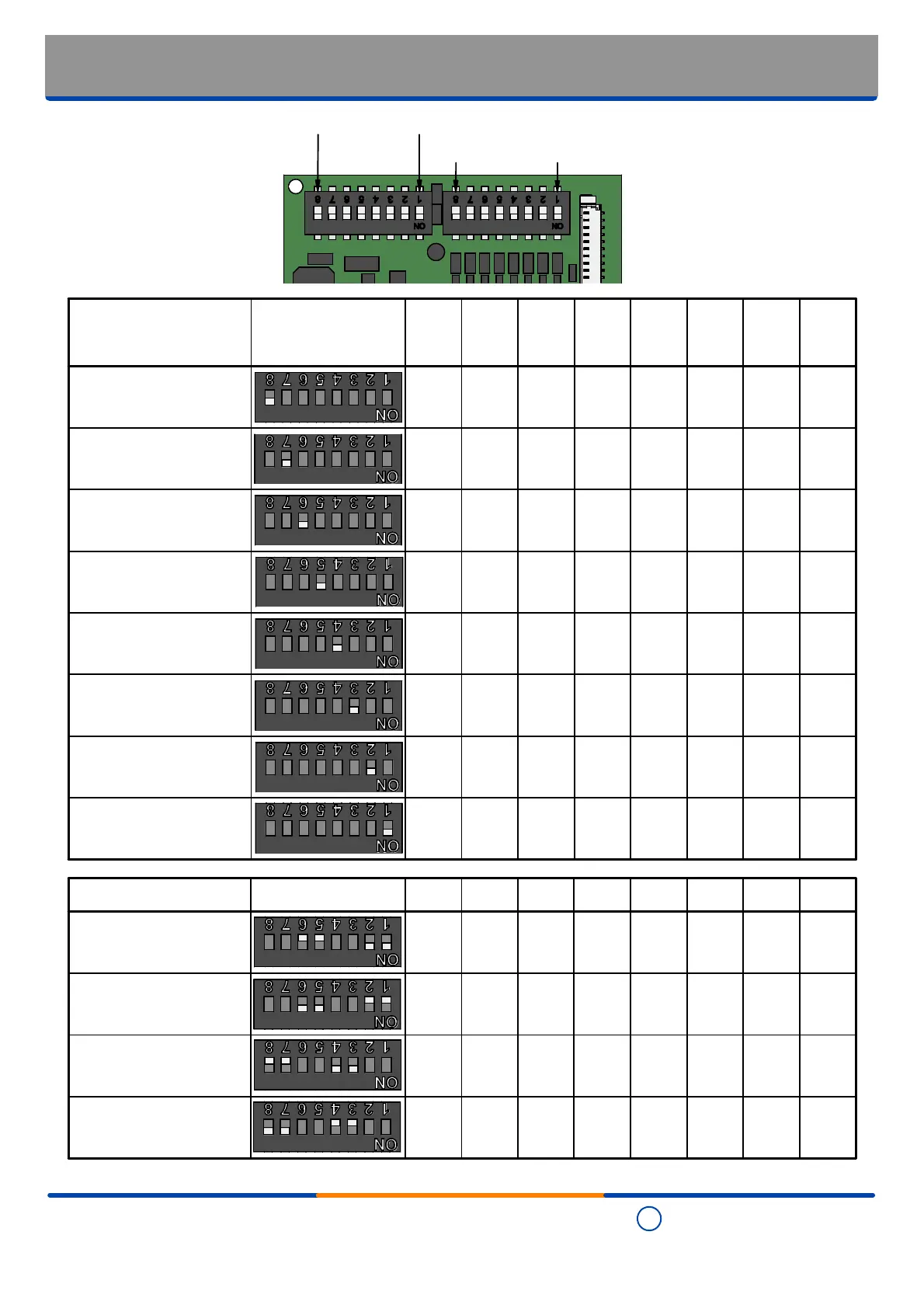

Universal eight signal input (4-20mA) 'dip switch' setting options
(continued)
JP2-8 JP2-1
Function Setting JP5-8 JP5-7 JP5-6 JP5-5 JP5-4 JP5-3 JP5-2 JP5-1
Output 1 = 3V3 (68k) - - OFF OFF - - ON ON
Output 1 = 12V - - ON ON - - OFF OFF
Output 2 = 3V3 (68k) OFF OFF - - ON ON - -
Output 2 = 12V ON ON - - OFF OFF - -
Connect 100Ω precision
resistor(s) for 4-20mA
current measurement
Setting JP2-8 JP2-7 JP2-6 JP2-5 JP2-4 JP2-3 JP2-2 JP2-1
GPi 1: connected ON - - - - - - -
GPi 2: connected - ON - - - - - -
GPi 3: connected - - ON - - - - -
GPi 4: connected - - - ON - - - -
GPi 5: connected - - - - ON - - -
GPi 6: connected - - - - - ON - -
GPi 7: connected - - - - - - ON -
GPi 8: connected - - - - - - - ON
