4 Installation and connection
4.1 Prepare the placing space for the machine, which must be perfectly horizontal and strong enough
according to the machine weight.
4.2 The area for the placing of the machine must be completely empty of other material and big enough
to grant the worker moving during the use and the maintenance. Our advice is to leave a free space
around the four sides of the machine of about 50 cm.
4.3 Connection to the supply net. Before the connection, be sure that the line voltage corresponds to
the machine connection.
If the machine is three-phase, it must be 400V.
If the machine is mono-phase, it must be 230V.
The connection must be executed through a cable consistent with the engine power considering that
it is compulsory to connect the machine with a net equipped of a highly-sensitive differential switch
with intervention threshold Id < 30 mA.
It is compulsory to use extension cords to connect the machine to the supply net and the machine
placing must grant that the connections are not damaged, being far from the passage ways and
avoiding mechanical efforts and damages.
The machine is equipped with a movable socket to be connected with the supply cable; it will be
inserted into the fix plug in the machine system.

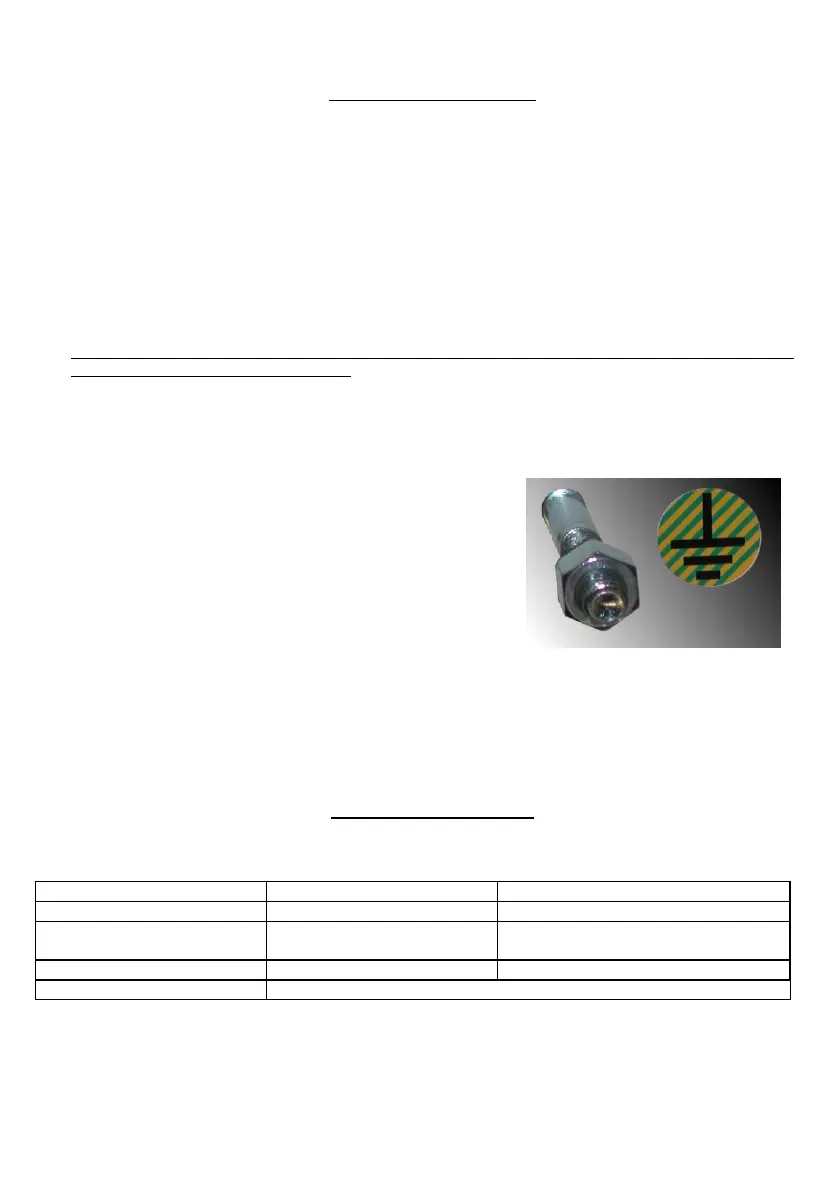

4.4 It is compulsory to connect the machine with a
grounding system with a resistance value able to grant a
contact tension not higher than 25V.
For a better grounding there is the possibility to connect
the machine with the grounding. The picture shows the
position of the grounding indicated by the purpose symbol
(As shown in the picture ).
4.5 Lighting:
The machine use is allowed only in case of normal ambient lighting. In case the ambient lighting is
insufficient, the user must arrange an extra integrative lighting in order to grant the complete visibility of
all the machine components and the working phases.
Missing the above mentioned lighting, use and starting of the machine are absolutely
forbidden.
5 Machine standard toolings
The machine is delivered with the following standard toolings:
Machine type
Bending pins
Bending bushes
PG 26
n°3 Ø36
n°2 Ø48, n°1 Ø55, n°1 Ø69, n°1 Ø100
PG 30 – PG 35
PGT 32/25
n°3 Ø36
n°2 Ø48 - n°1 Ø55 - n°1 Ø69
n°1 Ø100 - n°1 Ø130
PG 40
n°3 Ø48
n°2 Ø68 - n°2 Ø87 - n°1 Ø130
For all the machines
Bending square with hexagon
