TECMOR PG 35 three-phase - Use of the Machine; Use of the Standard Machine; General Controls of the Standard Machine

3
4
5
6
7
8
9
1
10
5
6 Worker assigned
The machine can be used only by experienced staff working directly in the construction or rod-setting sites.
The staff can be helped by assistants who must have a safe distance according to the maximum bending
length.
7 Worker position

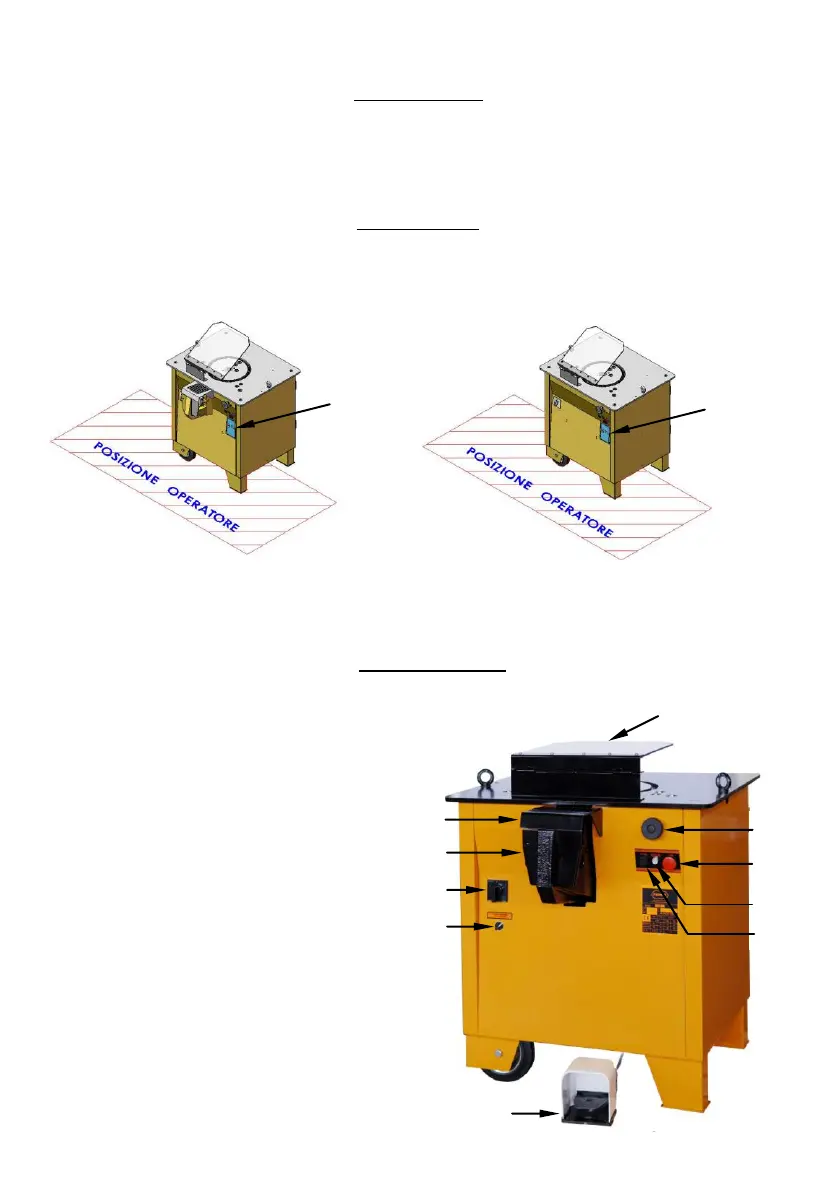

The correct worker position must be as indicated in the following picture.
As shown by the picture, the position reserved to the worker is in the front of the machine, which is indicated
by the machine plate.
8 Use of the machine
8a Use of the standard machine
8a.1 General controls of the machine:
1. Protection for the bending area.
2. Regulation handle.
3. Emergency STOP button.
4. Supply light.
5. Return-reset button.
6. Remote control for pedal used by operator.
7. Speed selector (only PG 26 mono-phase)
8. Main inverter-switch.
9. Shear (only for combined machines).
10. Protection for the cutting area
(only for combined machines).
Machine plate
2
Machine plate
