6.6 FITTING AND REMOVING THE PLUG TOOL
1.
Press the locking pin (1) in.
2. Remove the retaining wedge (3).
3. Press the locking pin (2) in.
4. Remove the retaining wedge (4).
5. Pull out the plug tool.
CAUTION!
Pay attention to the weight of the plug tool! Transport the plug tool securely and use a lifting
gear if necessary.
6. Storing the plug tool safely and securing it against shifting.

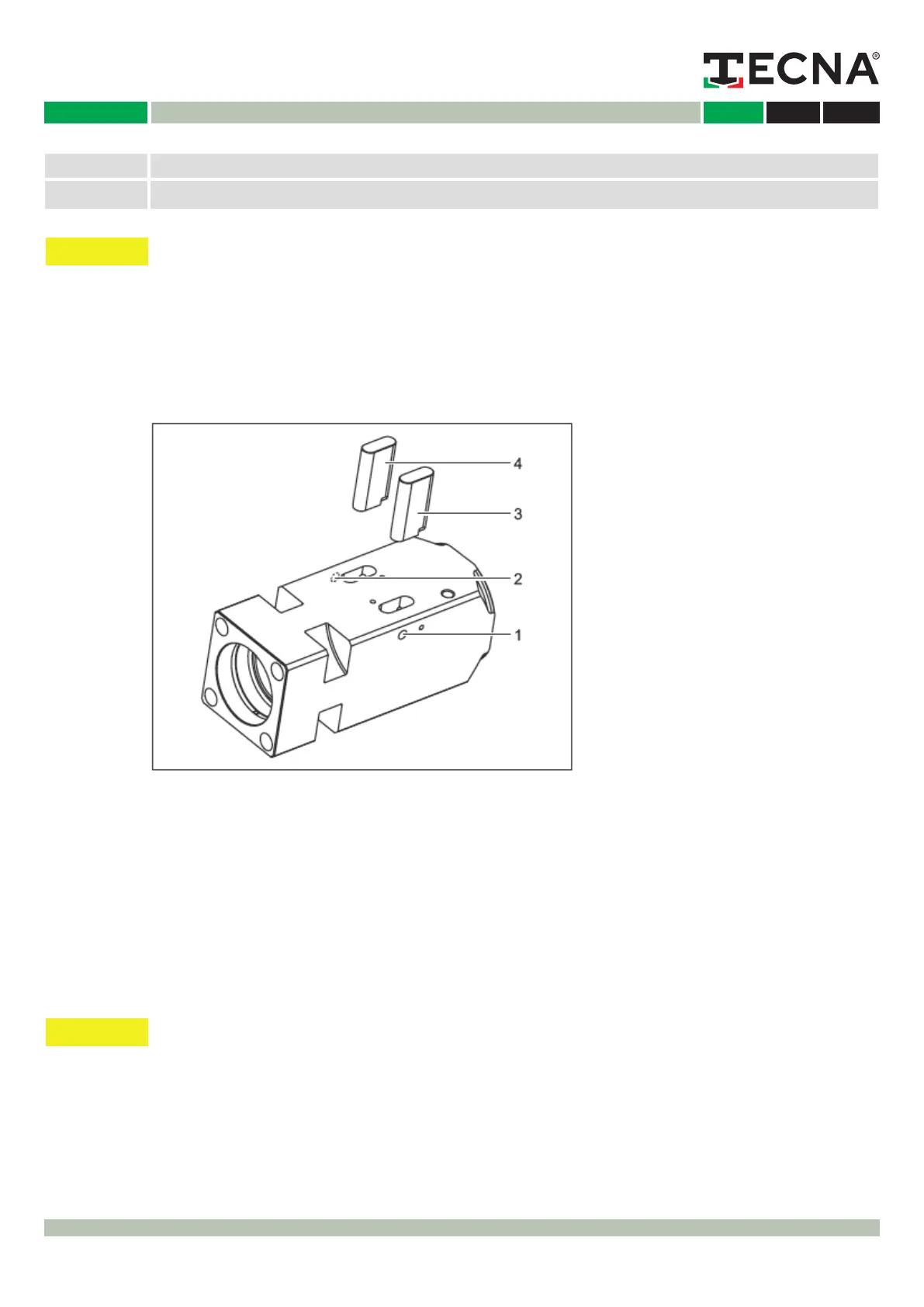

FIGURE 8: Removing the plug tool
REMOVING THE PLUG TOOL
CAUTION!
Pay attention to the weight of the plug tool! Transport the plug tool securely and use a lifting gear
if necessary.
6. Insert the retaining wedges (3) and (4) again till the locking pins (1) and (2) are released again.
