4.2
ALTERNATE
AIR
Alternate Air knob is located on the central pedestal; when the knob
is
fully pulled out-
ward from the instrument panel, injectors receive maximum hot air. During normal opera-
tion, the knob
is
set
in
OFF
positio~
4.3
DEFROST
AND
CABIN
HEAT
Two knobs, located on the lower side
of
the central pedestal, allow Defrost and Cabin Heat
function. The one marked
as
"Defrost and Cabin Heat" allows hot air
to
perfo
rm
wind-
shield defrost and partially cabin heat.
The cabin heat control knob, when fully outward, allows cabin
to
receive maximum hot air.
When both cabin heat and defrost and cabin heat are pulled, air
is
partitioned.
I

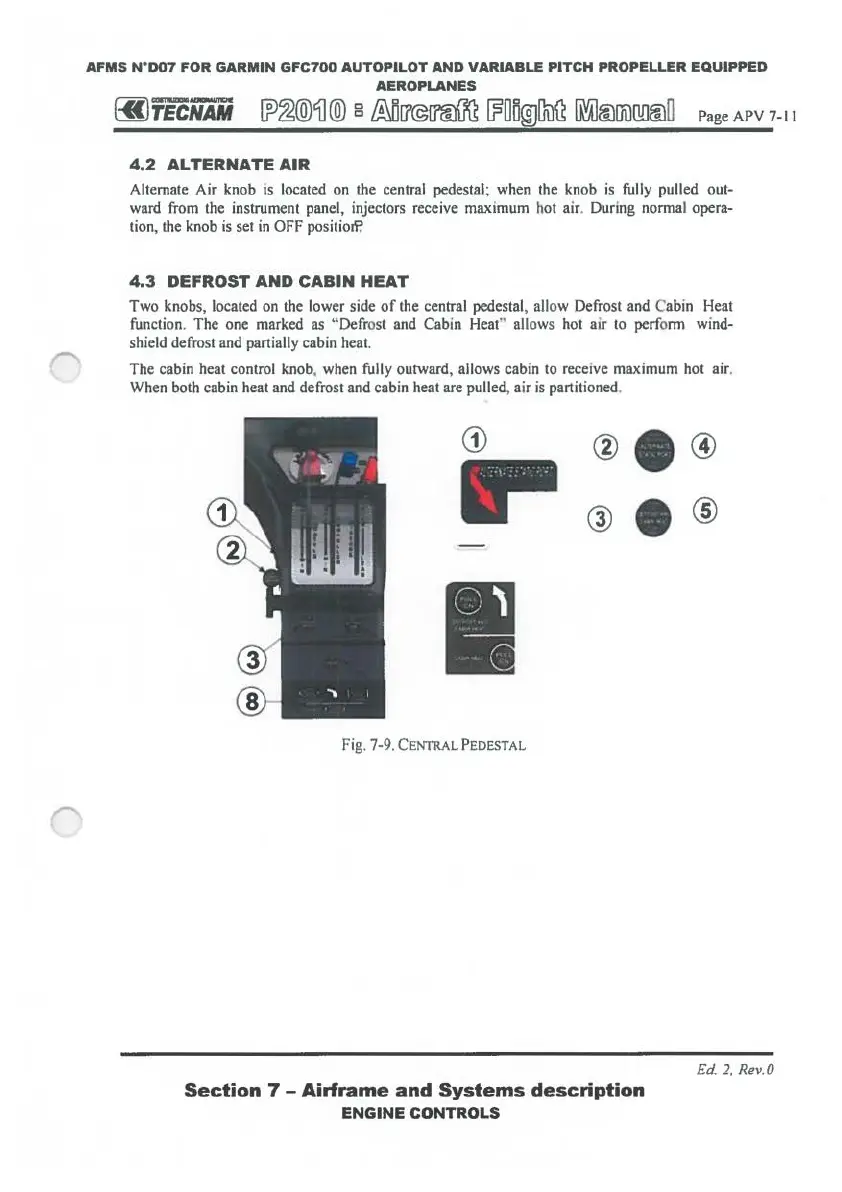

Fig. 7-9.
CENTRAL
PEDESTAL
Section
7 -
Airframe
and
Systems
description
ENGINE
CONTROLS
Ed.
2,
Rev
.a
