2.2. FUSELAGE
The P2010 fuselage is mainly made by carbon fibres composite materials.
The fuselage is made by two main shells that are later assembled bonding the two main bod-
ies and the floor (composite) and adding aluminium parts that allow the connection of the
main landing gear, seats, wing and instrument panel.
Fuselage and vertical fin are thus a unique body.
2.3. EMPENNAGES
2.3.1. HORIZONTAL TAIL
The horizontal tail is an all-moving type; the stabilizer and elevator form a single uniform
plane called stabilator that rotates to the desired pitch setting.
The stabilator structure (see Figure 7-2) is made-up by two aluminium spar and ribs.
Aluminium skin panels are riveted to the above elements.
A trim tab provides stick force adjustment and longitudinal compensation through a control
wheel located between pilot and co-pilot seats.

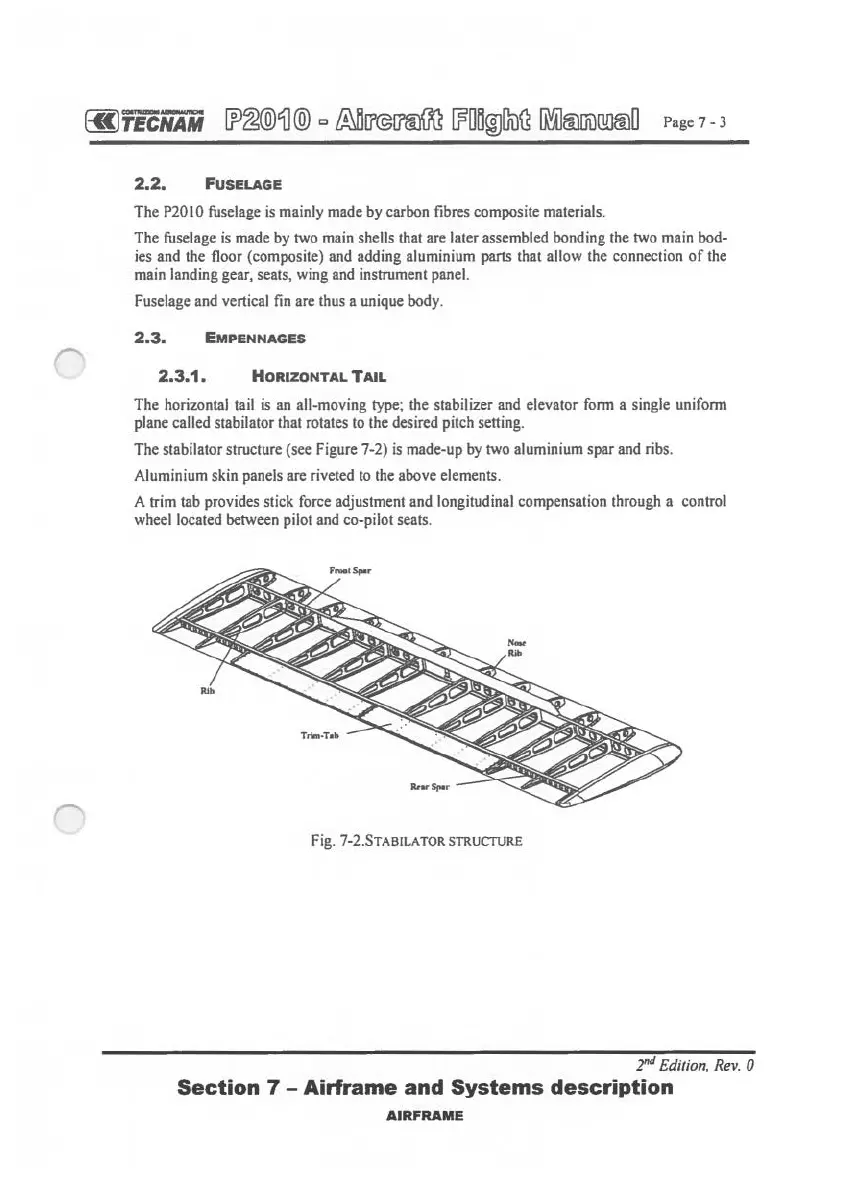

Fig. 7-2.STABILATOR STRUCTURE
2"" Edition, Rev. 0
Section 7 - Airframe and Systems description
AIRFRAME
