AFMS
N"D07
FOR
GARMIN
GFC700
AUTOPILOT
AND
VARIABLE
PITCH
PROPELLER
EQUIPPED
AEROPLANES
11.2
INTERNAL
LIGHTS
On the cabin ceiling are located four map lights, two
in
the front area (pilot) and two
in
the
rear area (passengers).
In
the central area
of
the cabin ceiling is located a spot light used to illuminate the pedestal
during night flight operations. All ceiling lights are dimmable by a dedicated dimmer.
=-~

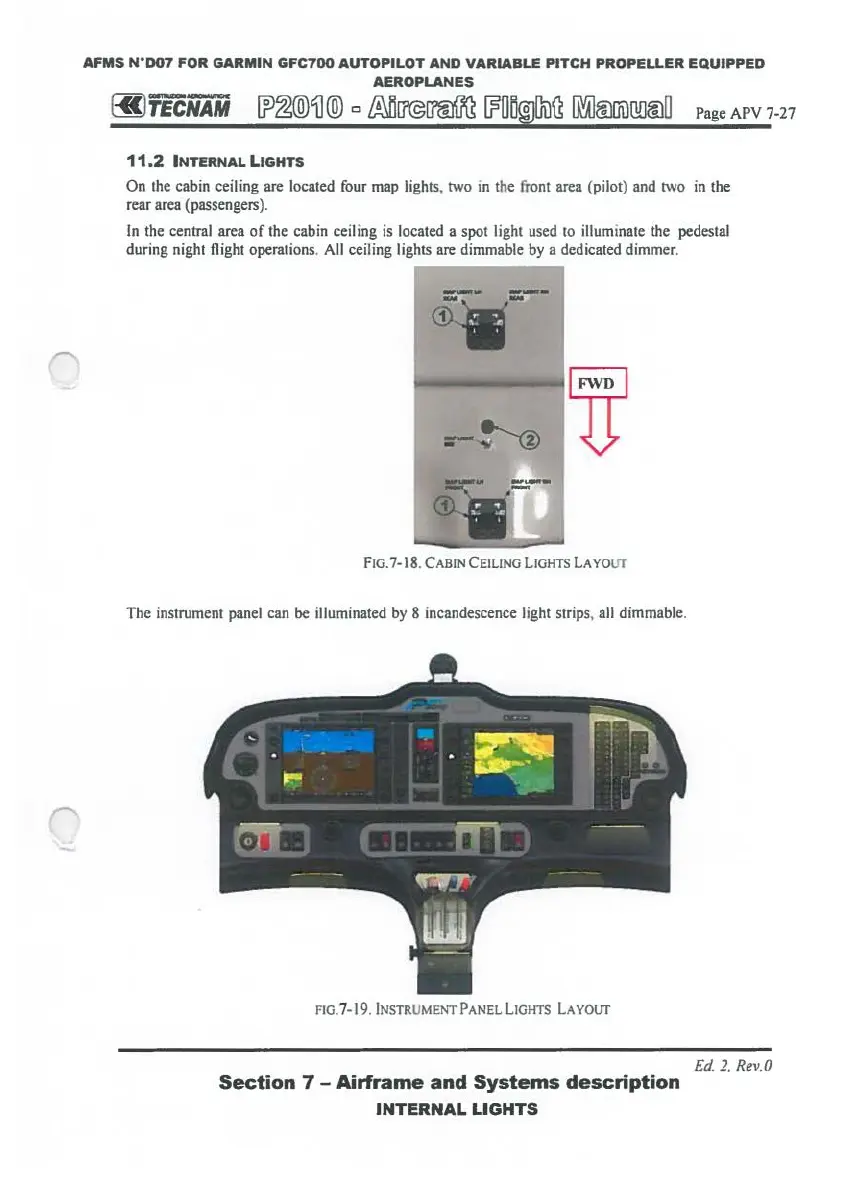

FIG.
7-
I 8. CABIN CEILING LIGHTS LAYOUT
The instrument panel can
be
illuminated by 8 incandescence light strips, all dimmable.
FIG
. 7- I 9 . INSTRUMENT PANEL LIGHTS LA
YO!Jf
Section
7 -
Airframe
and
Systems
description
INTERNAL
LIGHTS
Ed.
2,
Rev.O
