AFMS N"D07 FOR GARMIN GFC700 AUTOPILOT AND VARIABLE PITCH PROPELLER EQUIPPED
AEROPLANES
~TECNAM [?~@1J@
0
&!l[f@~ l:fDH@lfil{k riYAJ@IJilllil@D Page APVI-17

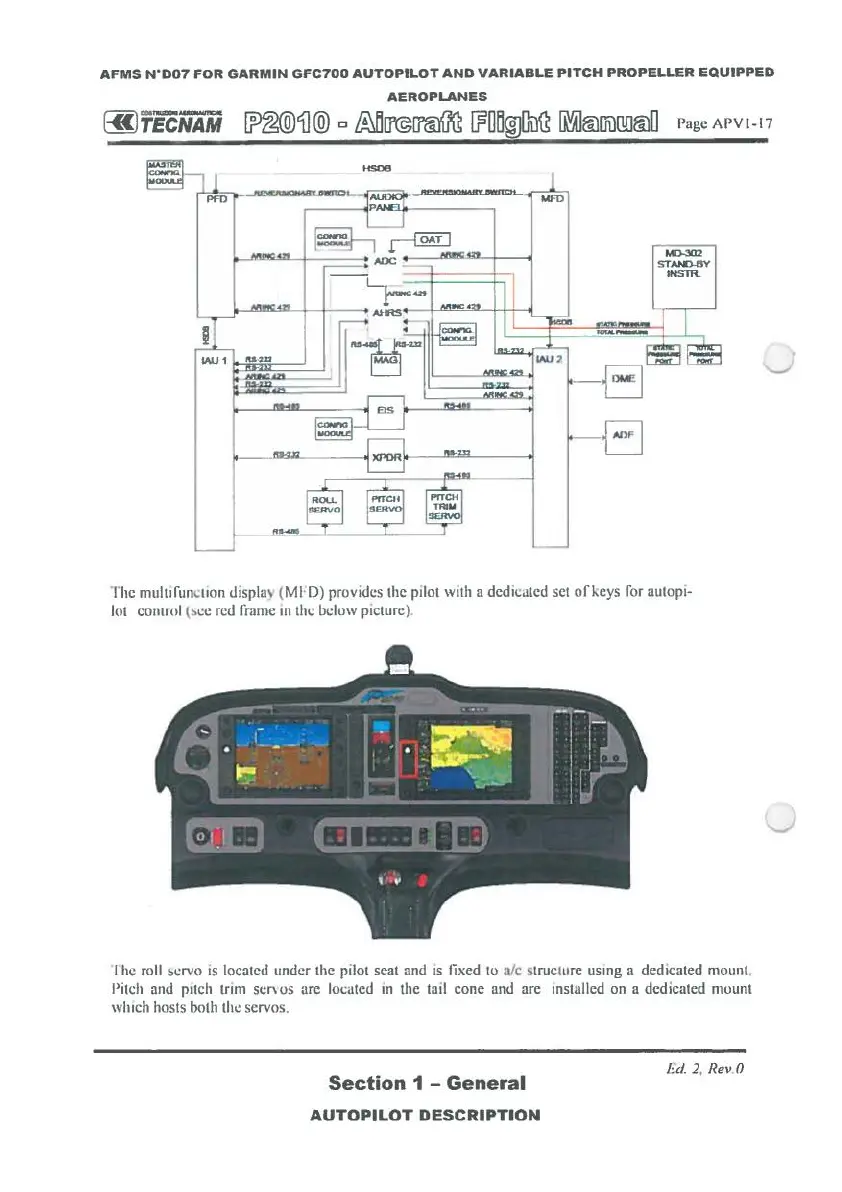

HSOB
MFD
The mulurunction display (MFD) provides the pilot with a dedicated set or keys for autopi-
lot conllol ( ~ ce red frame in the below picture).
I he roll ~crvo is located nnder the pilot scat and is fixed to ale structure using a dedicated mount.
I' itch and pitch trim sef\ os are located In the tail cone and are installed on a dedicated mount
wl11ch hosts both the servos.
Section 1 - General
AUTOPILOT DESCRIPTION
Ed. 2, Rev .O
