TECNICOMAR MINIMAR PLUS - Page 37

Instructions for the installation, use and maintenance of Tecnicomar watermaker
9-37

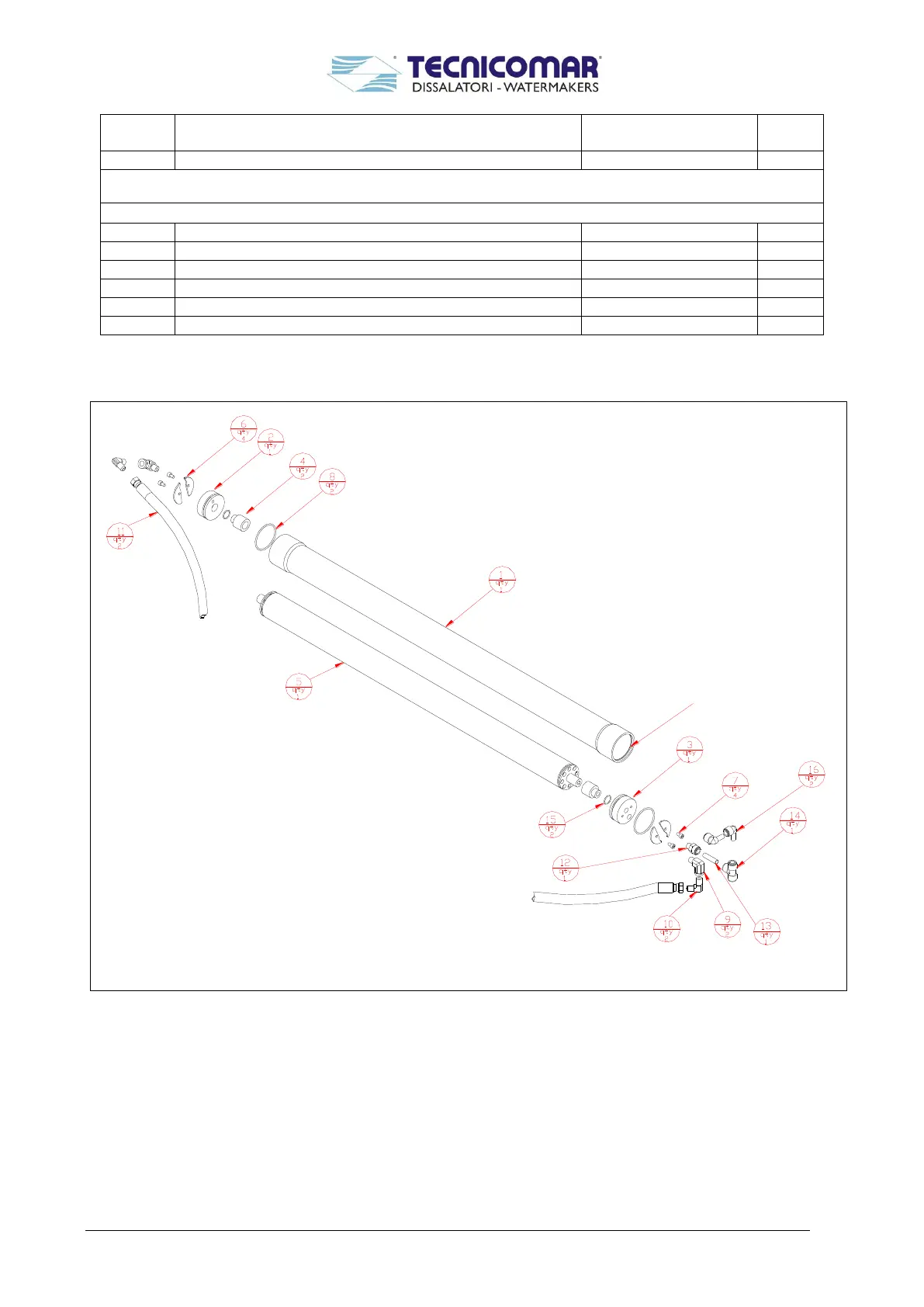

fig. 1: Pressure vessel group
6-a
6-b
Equal elbow Ø10
Equal elbow Ø8
201RP00010G000
201RP00008G000
1
1
7
Salinity and temperature probe 3/8”
A14SS000000000
1
(a) for models: SAILOR C 1000 – 1500 – 2000 – 2/40 -3/40 ; BICOMPACT
(b) for models: SAILOR C 200 - 400 – 600 - 1/21 – 2/21 – 3/21 ; MINIMAR PL 200 – 400 – 600
ELECTRONIC BOARDS (fig. 6)
No.
PART NAME
ITEM CODE
QTY
1
Tiny2 mother board (230V)
A14SB0000TINY2
1
1
Tiny2 mother board (400-415V)
A14SB0400TINY2
1
1
Tiny2 mother board (440 V)
A14SB0440TINY2
1
1
Tiny2 mother board (460V)
A14SB0460TINY2
1
2
Tiny2 cover board
A14COTINY20000
1
