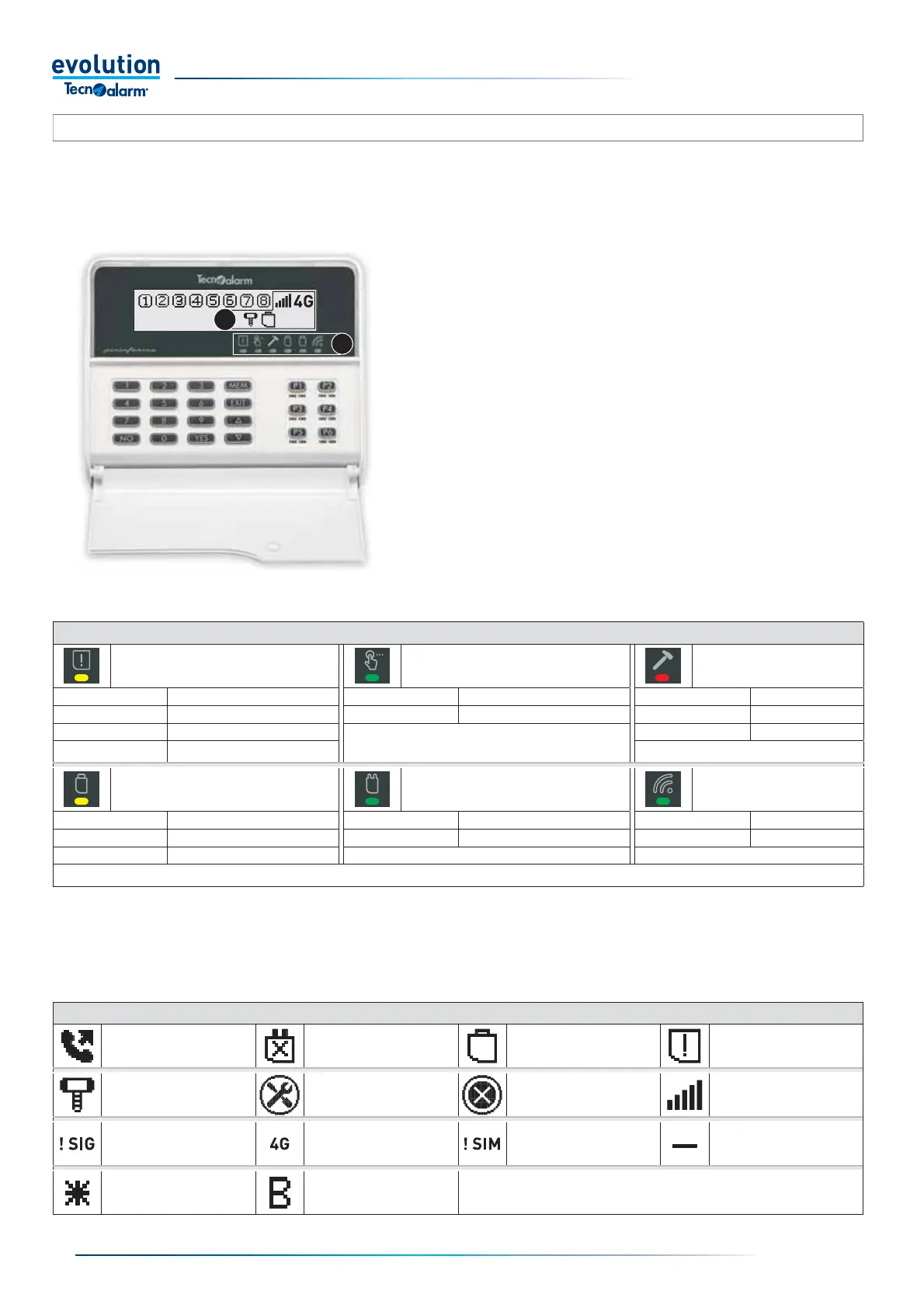

2-5.2 - EV LCD console
Box A
Operating statuses shown by dynamic icons on the display, the mobile
signal icon constantly shows the signal strength, other signalling icons are
shown on the display only when the event occurs.
Box B
Operating statuses displayed by graphic icons with LEDs, the icons are
located horizontally on the right below the display, they provide use and
fault signals.
With the EV LCD console it is possible to manage the operating programs of the System, interact with the remote controls, and
access the system consultation and programming menus reserved for the user.
The console displays the operating statuses of the system using two groups of icons, visible in boxes A and B.
ICON/LED INDICATORS
General fault status
(yellow LED)
Console in use
(green LED)
Tamper alarm status
(red LED)
Off Status OK Off Waiting Off Status OK
On Fault memory On Console in use On Alarm memory*
Fast fl ashing Active fault Flashing Active alarm
Slow fl ashing Telecommunication fault
Operating status of the system batteries
(yellow LED)
Control panel electrical
power supply status
(green LED)
Key code reading
(green LED)
Off Status OK Off Power failure Off Waiting
On Low battery memory On Status OK Flashing Key read
Flashing Battery faulty or out of power
*Warning: the tamper memory can only be cleared by the installer
DYNAMISCHE PICTOGRAMMEN WEERGEGEVEN OP HET DISPLAY
Telecommunication
in progress
No 230V AC power supply General low battery signalling General fault signalling
Tamper signalling Active console fault No wireless communication
GSM mobile signal strength
dynamic indication
Insuffi cient mobile signal
strength
Mobile network used dynamic
indication
SIM Card not detected
Thermostat in operation
Control output OFF
Thermostat in operation
Control output ON
Thermostat blocked
