TECO JSDAP Series User Manual

3-3
Once the first parameter in a parameter group is displayed use Increment or Decrement keys to
select the required parameter then use Enter key in order to view and alter the parameter setting, once
this is done then press Enter key again to save the change.
Notes: On each parameter display the first digit will be flashing, the enter key can be used to move
between digits.

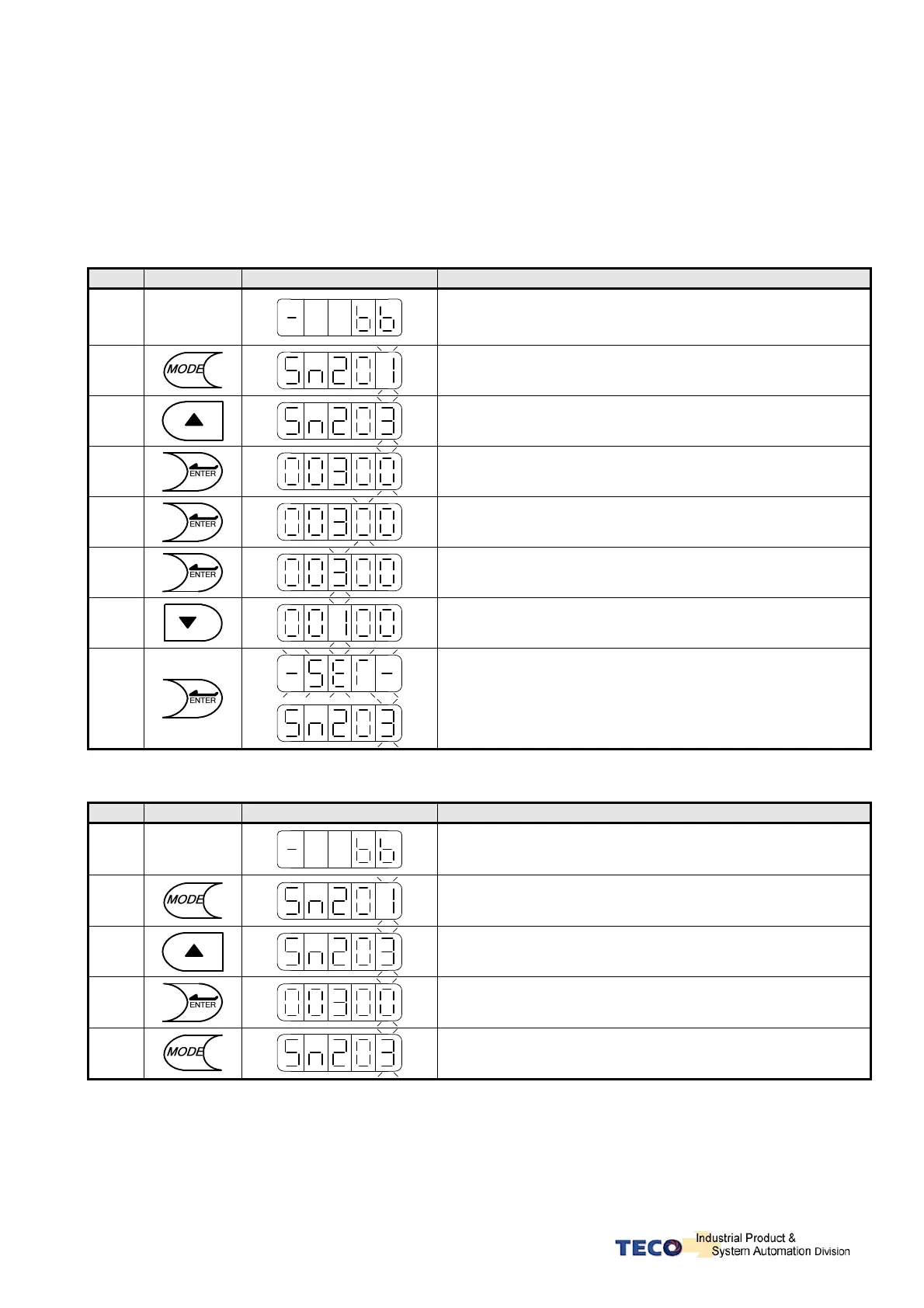

Example procedures are shown below: -
Ex: Setting Speed Parameter Sn203 to 100rpm.
Step Key
LED Display after Operation
Description
1 Power On
Display status of servo drive
2
Press MODE-Key 6 times to select Sn 201
3
Press INCRMENT- Key twice Sn203 is displayed.
4
To view the Sn203 preset value by press ENTER-Key for 2
seconds
5
Shift to the second digit by press ENTER- Key once
6
Shift to next Digit by press ENTER-Key once again
7
Change the digit preset value by press the DECREMET-Key
twice
8
To save the altered preset value, Press the ENTER- Key for 2
seconds until “SET”is displayed briefly and then display is
returned to parameter Sn203
Following example shows the sequence where a parameter preset value is displayed.
When no change is made and it is skip back to the original parameter by pressing the Mode-Key.
Step Key
LED Display after Operation
Description
1 Power ON
When power on drive status parameter will display
2
Pressing MODE-Key 6 times, Sn 201 will be displayed.
3
Pressing INCRMENT- Key twice Sn203 is displayed.
4
To view the Sn203 preset press ENTER-Key for 2 seconds.
5
No change is made and LED display return to last select
parameter Sn203, press MODE-Key once skip
