TECO JSMA-PLC08AB - Page 18

18

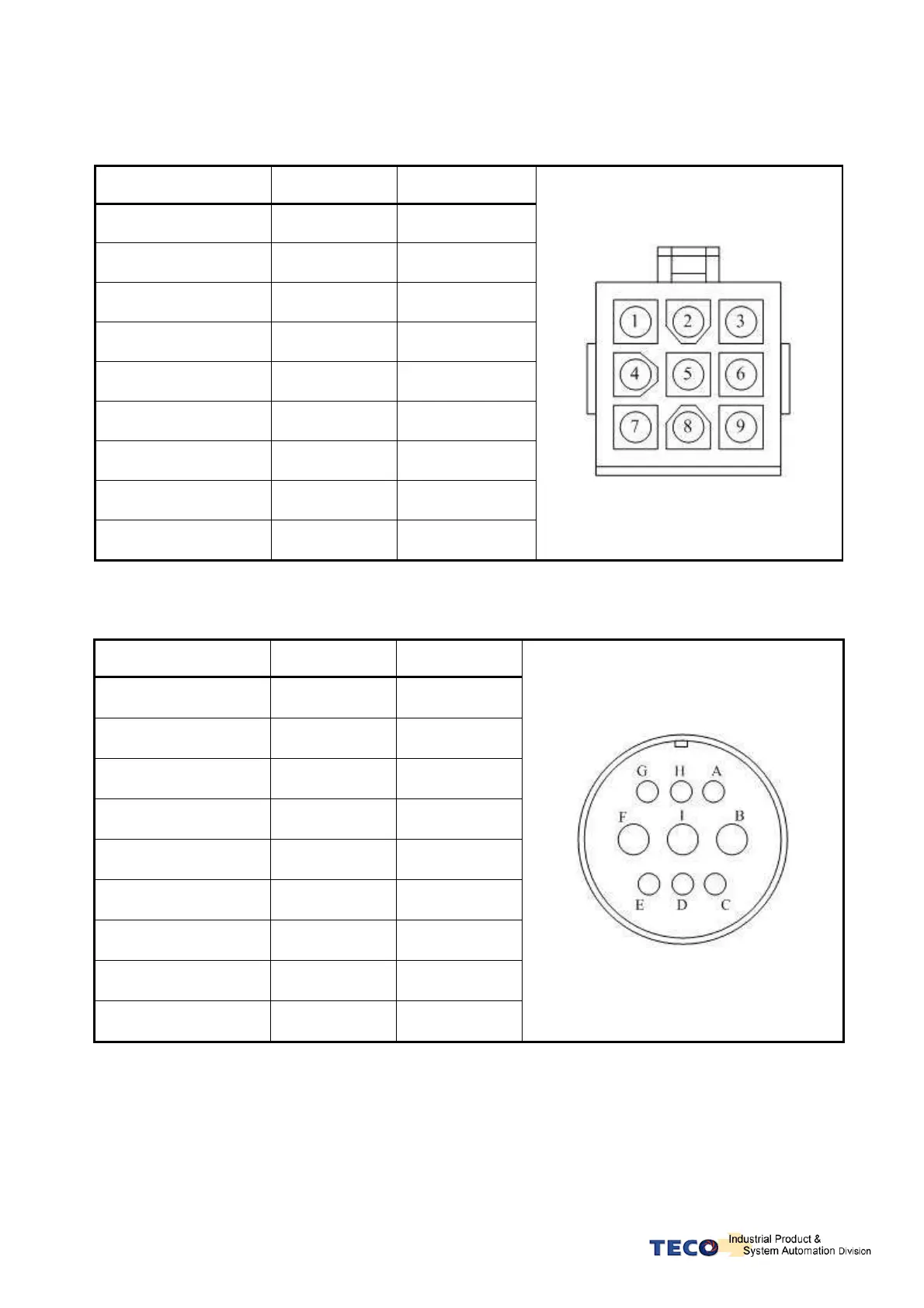

Table of Motor-Encoder Wiring
(1)General Joint:
Terminal Symbol Color Signal
1 White +5V
2 Black 0V
3 Green A
4 Blue /A
5 Red B
6 Purple /B
7 Yellow Z
8 Orange /Z
9 Shield FG
(2) Military Specifications Joint
Terminal Symbol Color Signal
B White +5V
I Black 0V
A Green A
C Blue /A
H Red B
D Purple /B
G Yellow Z
E Orange /Z
F Shield FG
