TECO JSMA-PLC08AB User Manual

44
Address
Parameter Name & Function Default Unit
Setting
Range
RS232 RS485

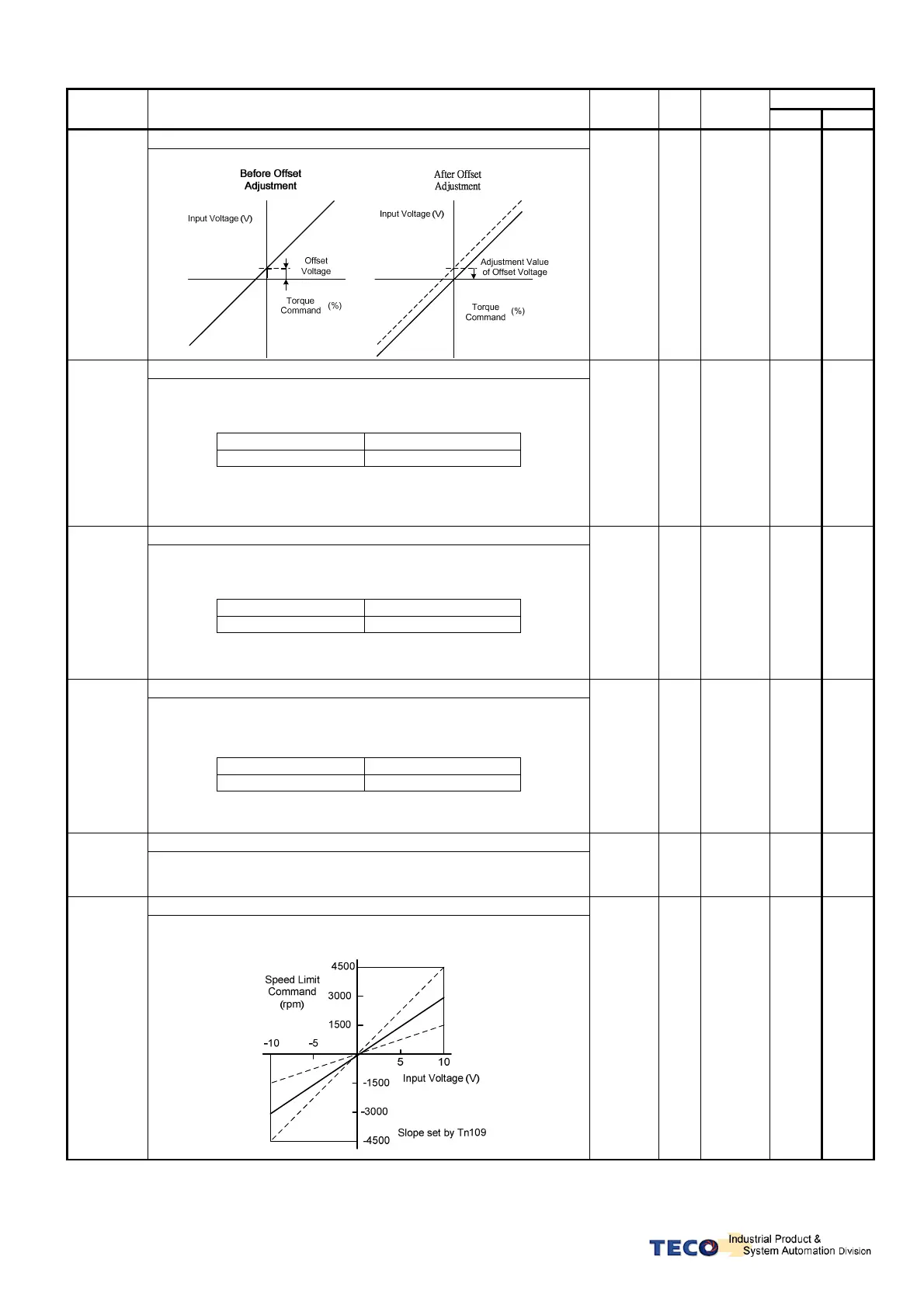

Torque Command, analog input voltage offset
Tn104
The offset amount can be adjusted by this parameter.
0 mV
-10000
│
10000
522H 0104H
Preset Speed Limit 1. ( Torque control mode)
In Torque control, input contacts SPD1 and SPD2 can be used to
select Preset speed limit 1. As follows:
Input Contact SPD2 Input Contact SPD1
0 1
Tn105
Note: Input contacts status “1” (ON) and “0” (OFF).
Refer to 5-6-1 to set high or low input logic levels.
100 rpm
0
│
3000
526H 0105H
Preset Speed Limit 2. ( Torque control mode)
Tn106
In Torqu
e control, input contacts SPD1 and SPD2 can be used to
select Preset speed limit 2. As follows:
Input Contact SPD2 Input Contact SPD1
1 0
Note: Input contacts status “1” (ON) and “0” (OFF)
Refer to 5-6-1 to set high or low input logic levels.
200 rpm
0
│
3000
527H 0106H
Preset Speed Limit 3. ( Torque control mode)
Tn107
In Torque control, input contacts SPD1 and SPD2 can be used to
select Preset speed limit 3. As follows:-
Input Contact SPD2 Input Contact SPD1
1 1
Note: Input contacts status “1” (ON) and “0” (OFF)
Refer to 5-6-1 to set high or low input logic levels.
300 rpm
0
│
3000
528H 0107H
Torque output monitor value
Tn108
When the torque level in CW or CCW direction become greater
then this value setting, the output contact INT operate.
0 %
0
│
300
C30H 0108H
Analog Speed Limited Proportion Controller
Tn109
This function used for adjusted analog voltage command
compared with the slope of speed limit command.
3000
rpm
/10V
100
│
4500
C0DH 0109H
