NT935 ETH

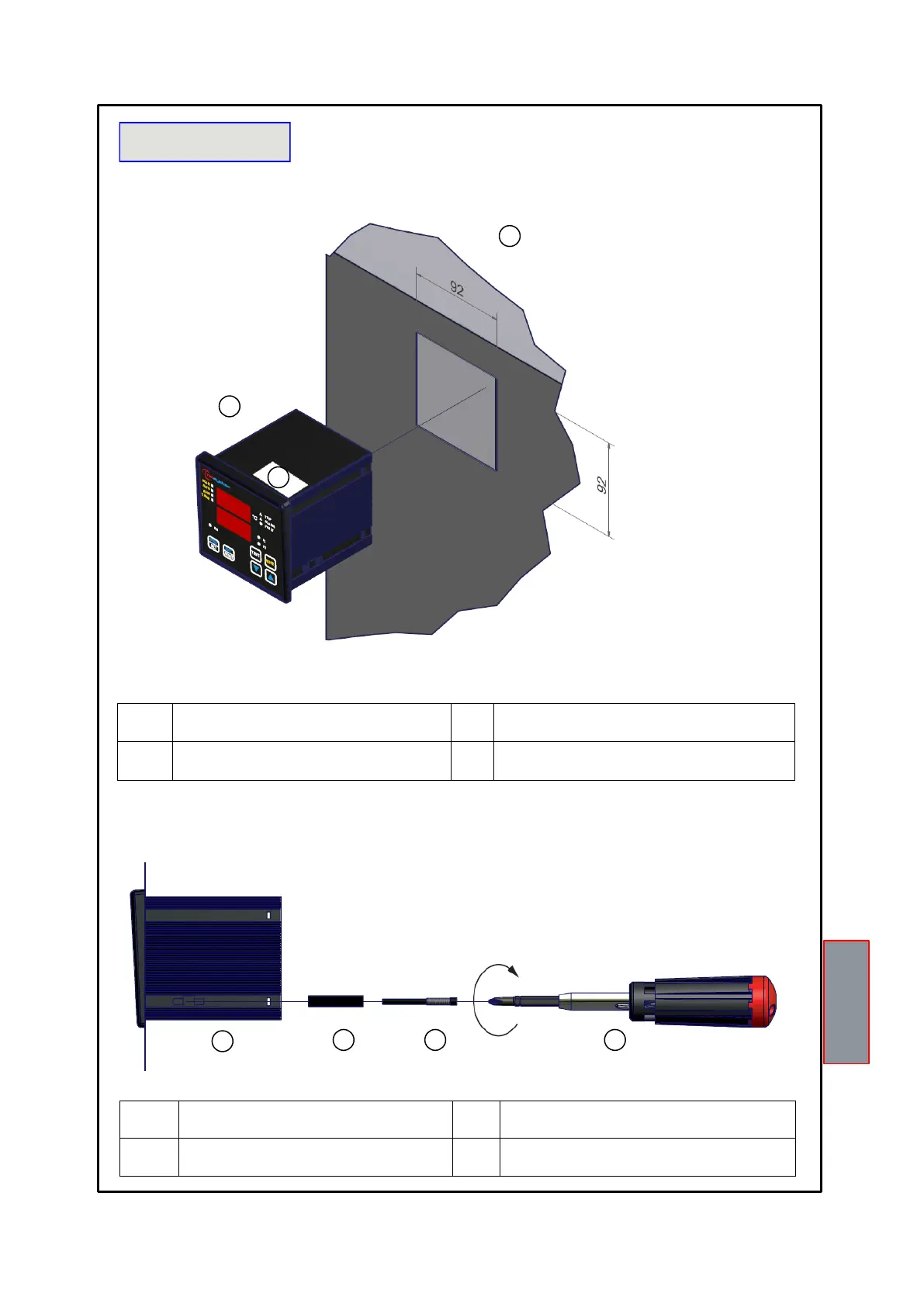

Fix the unit securely with the blocks supplied.
1)
Control unit
2)
Panel hole dimensions (+0.8mm tolerance)
3)
Identification label
1)
Control unit
3)
Fixing screw
2)
Fixing block
4)
Cross-head screwdriver #1X100mm
MOUNTING
1
1MN0007 REV. 0
2
3
1
2
3
4
1MN0008 REV. 0
Drill a 92 x 92 mm hole in the panel sheet.
