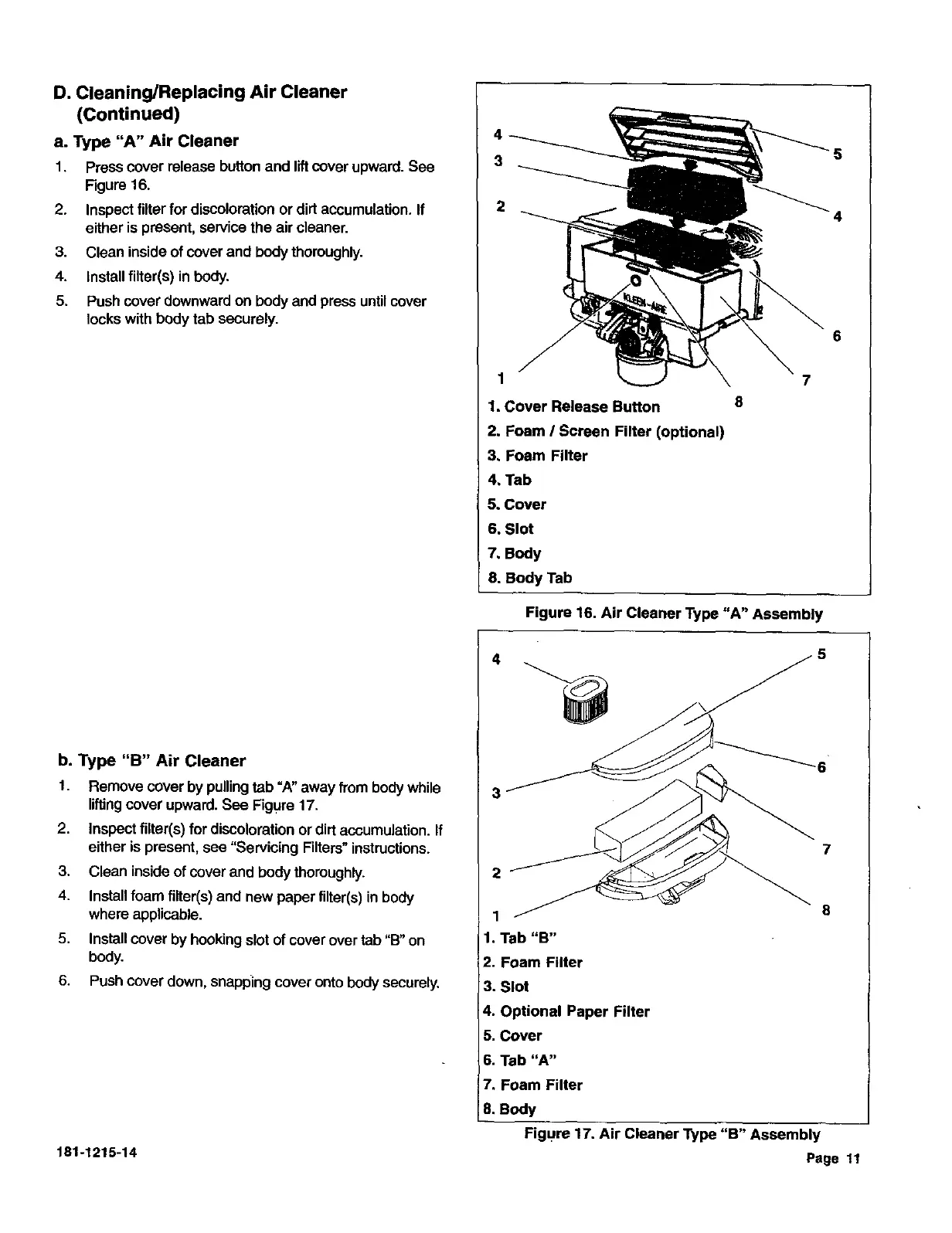

D. Cleaning/Replacing Air Cleaner
(Continued)
a. Type "A" Air Cleaner
1, PreSScover release buttonand liftcover upward. See
Figure16.
2. Inspectfilterfor discolorationor dirt accumulation. If
either ispresent, service the air cleaner.
3. Clean insideof cover and bodythoroughly.
4. installfilter(s) in body.
5. Push cover downwardon body and preSSuntilcover
locks with bodytab securely.
b. Type "B" Air Cleaner
1. Remove cover by pullingtab =A"away frombody while
liftingcover upward.See Figure 17.
2. Inspectfilter(s)for discolorationor dirtaccumulation. If
either ispresent, see "Servicing Filters"instructions.
3. Clean insideof cover and bodythoroughly.
4. Installfoam filter(s) and new paper filter(s)in body
where applicable.
5. Installcover by hookingslotof coverover tab "B" on
body.
6. Push cover down, snappingcover onto bodysecurely.
181-1215-14
4
3
2
1
1. Cover Release Button 8
2. Foam / Screen Filter (optional)
3, Foam Filter
4, Tab
5, Cover
6. Slot
7, Body
8. Body Tab
Figure 16. Air Cleaner Type "A" Assembly
4
6
7
4
2
7
1 8
1. Tab "B"
2. Foam Filter
3. Slot
4. Optional Paper Filter
5. Cover
6. Tab "A"
7. Foam Filter
8, Body
Figure 17. Air Cleaner Type "B" Assembly
