Tecumseh TM SERIES User Manual

13
COMPONENTS
3-7

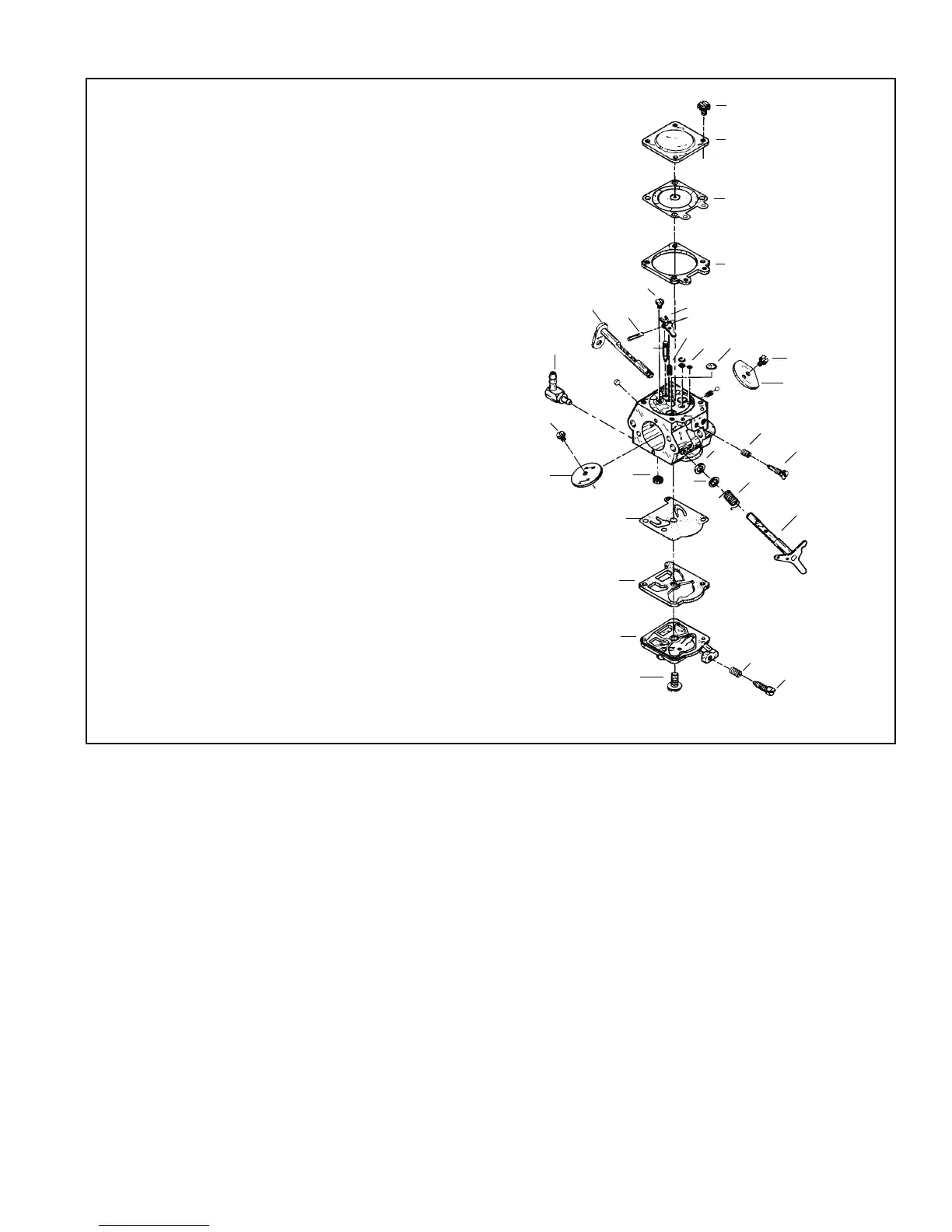

WALBRO CARBURETOR
1. Diaphragm Cover Screw
2. Metering Diaphragm Cover
3. Diaphragm
4. Diaphragm Gasket
5. Metering Lever
6. Metering Lever Screw
7. Metering Lever Pin
8. Metering Lever Spring
9. Inlet Valve Needle
10. Inlet Valve Seat
11. Welch Plug
12. Choke Shaft
13. Choke Shutter Screw
14. Choke Shutter
15. Idle Mixture Screw
16. Idle Speed Screw
17. Throttle Shaft
18. Throttle Shaft Return Spring
19. Throttle Shutter Screw
20. Throttle Shutter
21. Fuel Fitting
22. Fuel Inlet Screen
23. Pump Diaphragm
24. Pump Cover Gasket
25. Pump Cover
26. Pump Cover Screw
27. Tension Spring
28. Dust Seal
29. Dust Seal Washer
8
11
12
13
19
20 22
26
27
29
2
1
3
5
17
18
23
24
25
27
28
21
7
6
10
16
4
14
15
9
