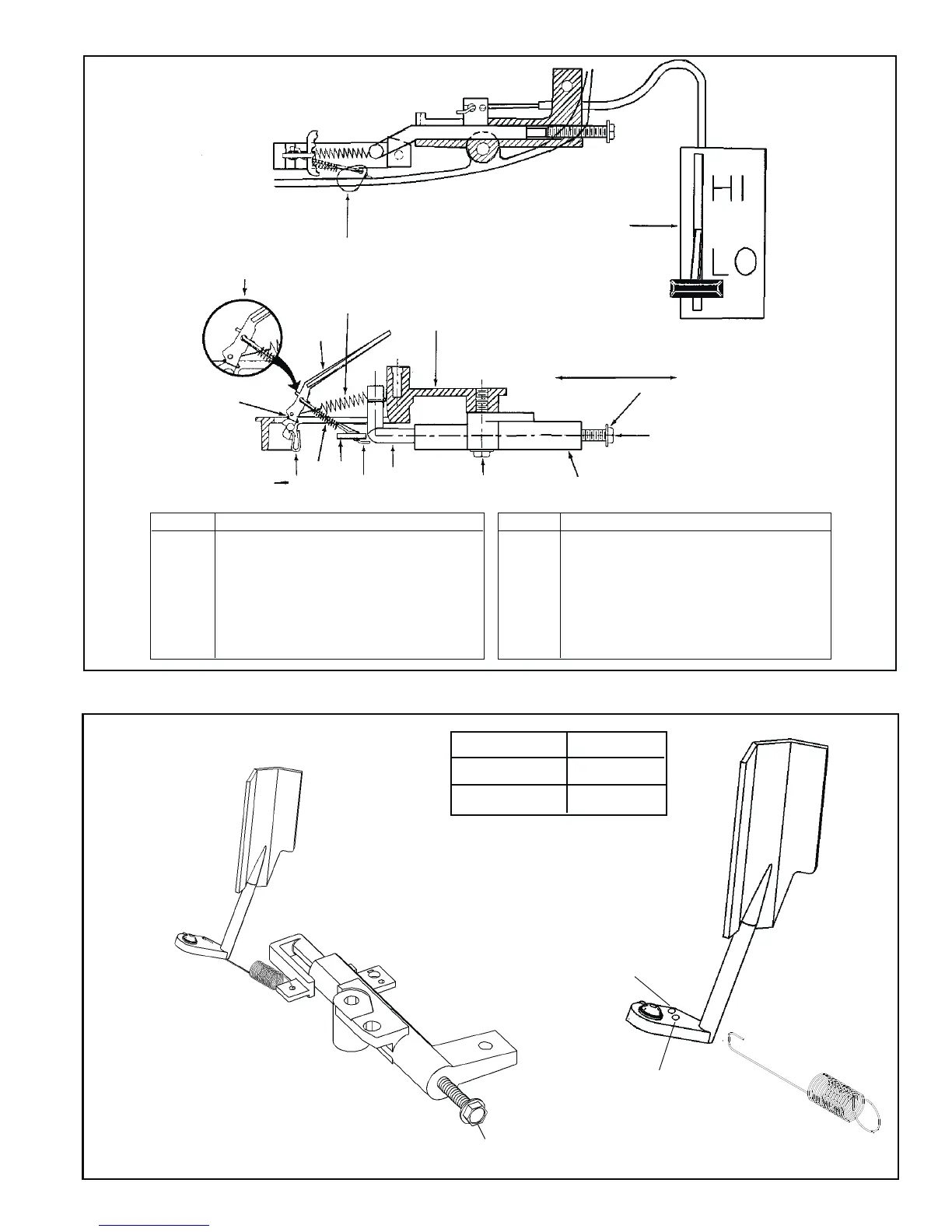

27
Adjust governed high speed with speed control
plunger pulled back against speed adjustment
screw. Turn speed adjusting screw IN to
decrease engine RPM or OUT to increase
RPM.
Speed Adjusting Screw
14
9
6
4
10
13
5
8
2
4
7
AIR VANE MUST ROTATE
FREELY AFTER CLIP
IS INSTALLED
11
12
3
1
TC TYPE I and
some TC Type II
4-4
ITEM DESCRIPTION
1 Base - Housing
2 Body Assy. - Speed Control
3 Screw
4 Carburetor Throttle Plate
5 Air Vane
6 Spring - Backlash
7 Link - Governor
ITEM DESCRIPTION
8 Spring - Governor
9 Clip - Spring
10 Spring and Link Attachment
11 Speed Control Plunger
12 Speed Adjustment Screw
13 Notch in Air Vane for Governor
Spring Attachment
14 Speed Control Lever
ADJUST GOVERNED HIGH SPEED WITH SPEED CONTROL PLUNGER
PULLED BACK AGAINST SPEED ADJUSTMENT SCREW
DECREASE
INCREASE
SPEED ADJUST SCREW
TC TYPE II/TM
4-5
Decrease (IN)
Increase (OUT)
Speed Adjusting Screw
Spring Color Spring Position
Orange or Green 1
Pink, Red, or Black 2
Spring Position 1
Spring Position 2
