teel 4RJ47 - Page 5

Models 4RJ47, 4RJ48, 4RJ49, 4RJ50, 4P035A and 4P036A
5
Teel Operating Instructions and Parts Manual
®
E
N
G
L
I
S
H
TABLE VI 2” SINGLE PIPE DEEP WELL PERFORMANCE AND EJECTOR CHART – EJECTOR PACKAGE 2P484
Feet to Pressure in psi Pressure in psi Pressure in psi
Water 20 30 40 50 20 30 40 50 20 30 40 50
GPH w/J32P-24 Venturi & #54 Nozzle GPH w/J32P-29 Venturi & #54 Nozzle GPH w/J32P-18 Venturi & #52 Nozzle
30’ 755 726 648 492 1115 935 740 520 450 390 340 295
40 669 636 559 420 915 745 555 360 405 350 300 255
50 583 558 468 330 740 540 385 195 370 325 275 235
60 511 486 378 240 585 420 240 66 340 295 250 210
70 438 408 306 186 – – – – 305 260 220 180
80 354 330 234 132 – – – – 275 235 195 155
90 – – – – – – – – 240 200 165 125
100 – – – – – – – – 215 180 145 105
110 – – – – – – – – 165 135 105 75
120 – – – – – – – – 135 110 80 54
Model 4P035A Model 4P036A
1 HP 1
1
⁄2 HP 1
1
⁄2 HP
NOTE: psi = Pounds per square inch (pressure).
Performance Chart (Continued)
20
40
60
80
100
To Household
Water System
To Pressure
Tank
Relief
Valve
Priming
Port
20
40
60
80
100
Pump
Discharge
Port
To Household
Water System
To Pressure
Tank
Relief
Valve
Priming
Port
Pump
Discharge
Ports
Models 4RJ47, 4RJ48, 4RJ50
Models 4P035A, 4P036A

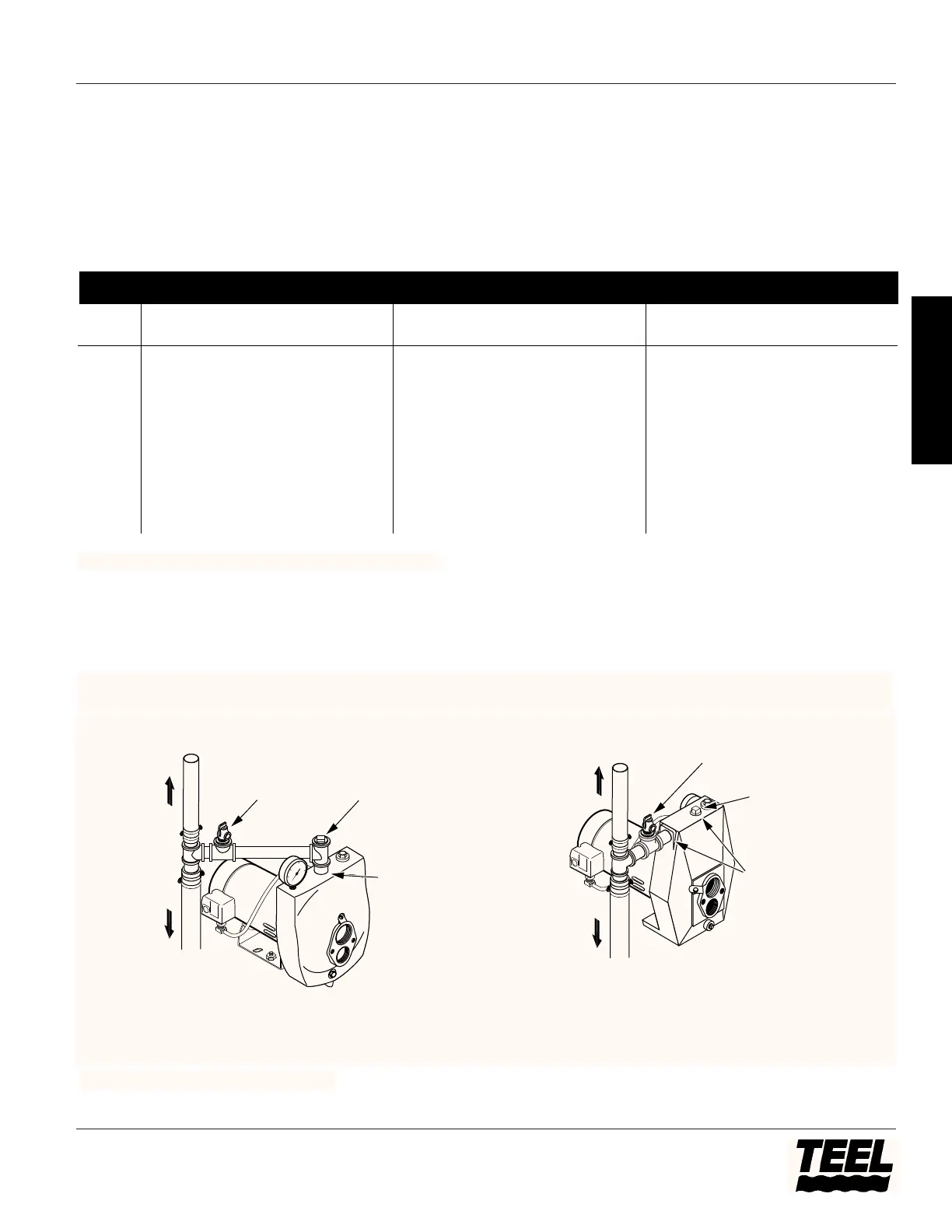

Typical Discharge Piping Connections for Convertible Jet Pumps
Figure 2
Models 4RJ47, 4RJ48, 4RJ50 Models 4P035A, 4P036A
