Teeter DEX - Assembly Instructions; Pre-Assembly Preparation

ITEMS FOR ASSEMBLY ITEM #’s
Leg Roller Assembly D1-1007
Leg Roller Adjustment Frame D1-1011
Leg Roller Shaft D1-1010
Two (2) Flat Washers (M8) H1-4108
Two (2) Hex Bolts
(M8 x 25mm) H1-1412
Frame Assembly
Support Post D1-1003
Base Frame D1-1002
Four (4) Hex Bolts
(3/8-16) H1-1502
Eight (8) Flat Washers (3/8) H1-1302
Four (4) Lock Washers
(3/8) H1-1301
Four (4) Capped Nuts
(3/8-16) H1-3504
Carefully remove the individual parts from the carton. You should have all of the items listed below. If any items are
missing or damaged, contact your retailer or the manufacturer directly (See Pg. 4 of the Instructional Training Manual).
Required tools: 13 mm Box Wrench, 9/16” Box Wrench and/or adjustable wrenches
* all hardware arrives pre-assembled to the corresponding parts
ASSEMBLY INSTRUCTIONS
Cane Shaped Handles
R1-2038
Leg Roller Adjustment Frame
D1-1011
Lap Pad Assembly
D1-1004
Base Frame
D1-1002
Support Post
D1-1003
DEX
TM

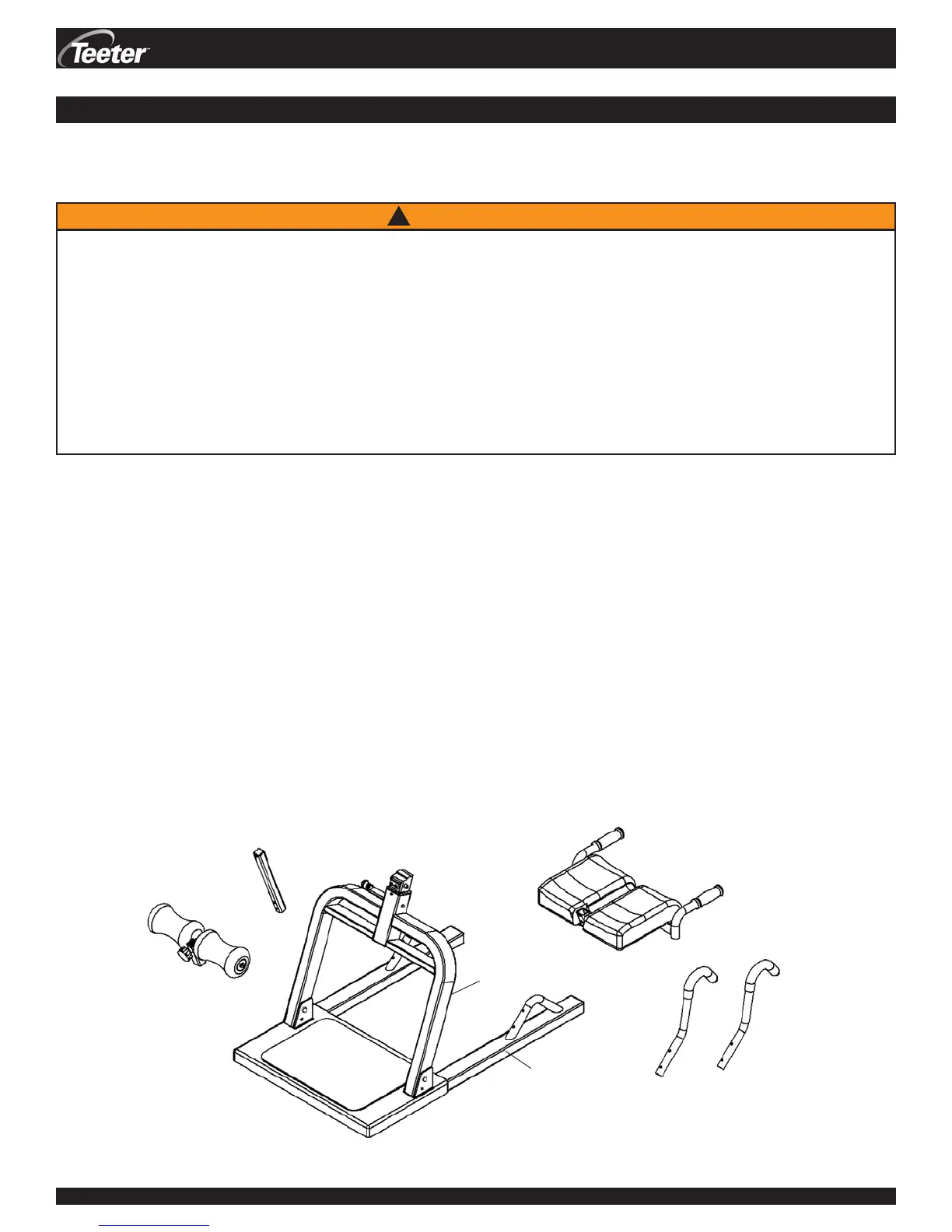

Assembly Instructions #LD-1001 Pg. 1
Before you begin: These instructions will guide you in properly assembling the unit. Please review all the steps before
beginning assembly. Carefully adhere to the Assembly Instructions and Instructional Training Manual to help ensure user
safety and product integrity.
1. Failure to assemble and/or use the equipment as directed may void the manufacturer’s warranty on this product and could
result in injury or death.
2. It is your responsibility to familiarize yourself with the proper use of the equipment and the inherent risks of inversion, such
as falling on your head or neck, pinching, entrapment or equipment failure.
3. Do not use the DEX
TM
until you have thoroughly and carefully read the Instructional Training Manual, reviewed all other
accompanying documents, and inspected the equipment.
4. Choose a level surface for assembling and operating the DEX
TM
.
5. Follow each step in sequence. Do not skip ahead.
6. Make sure that all fasteners are secure.
7. Replace defective components immediately and/or keep the equipment out of use until repair.
8. Schedule daily, weekly and monthly equipment inspections. Make sure that the parts rotate smoothly and that all fasteners
are secure.
!
WARNING
PRE-ASSEMBLY
Lap Pad Assembly D1-1004
Two (2) Flat Washers
(3/8) H1-1302
One (1) Hex Bolt (3/8-16) H1-1303
One (1) Hex Nut
(3/8-16) H1-1304
Cane Shaped Handle Assembly R1-2038
Eight (8) Curved Washers
(M8) H1-4108
Four (4) Hex Bolts
(M8 50mm) H1-1410
Four (4) Capped Nuts (M8 nylon) H1-3009
Leg Roller Shaft
D1-1010
