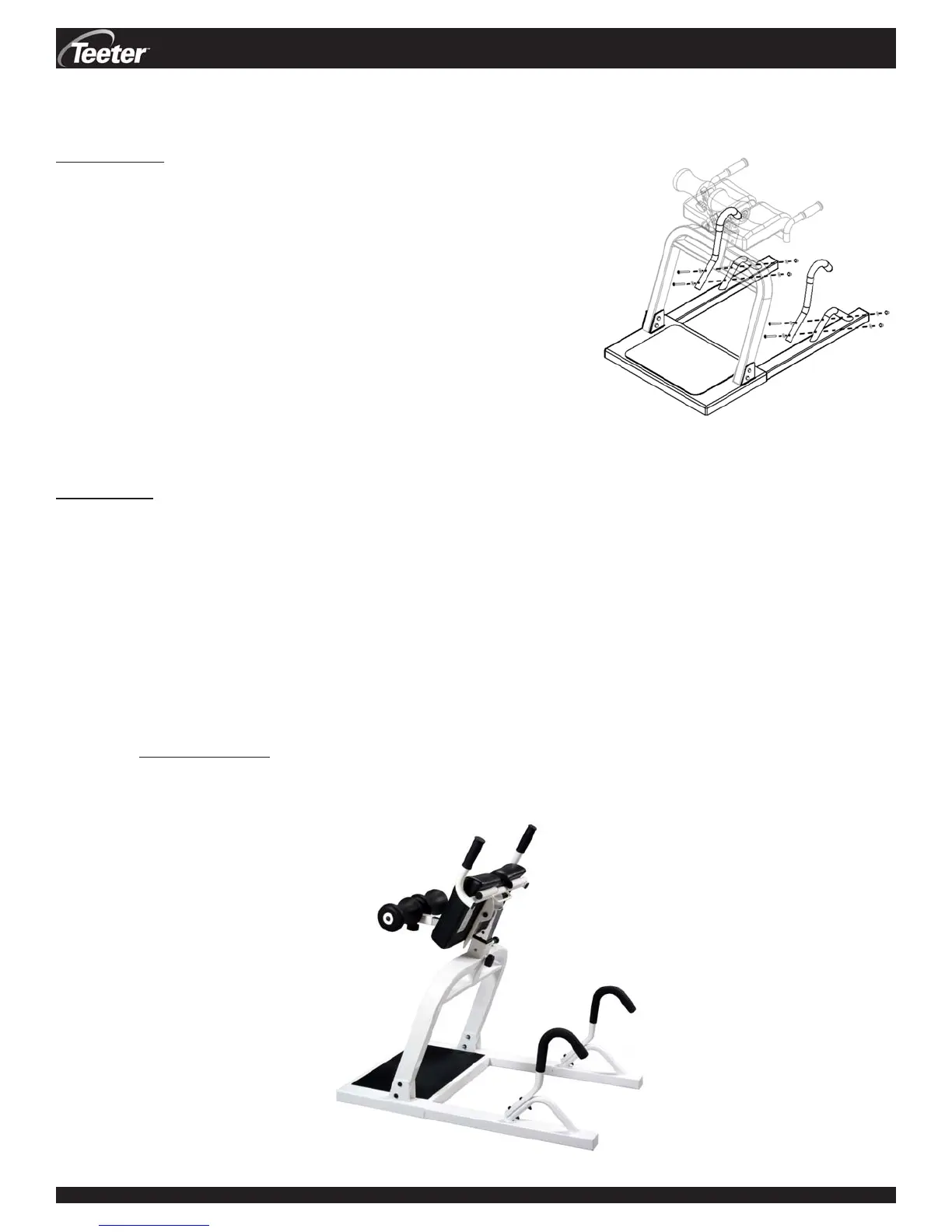

STEP FOUR
Attach the Cane Shaped Handles (R1-2038) to the Base Frame
(D1-1002)
• You must remove the Hex Bolts, Curved Washers and Capped
Nuts from the handle supports on the Base Frame before
proceeding. Keep this hardware nearby.
• Align the two holes in the Cane Shaped Handles to the holes in
the handle supports on the Base Frame (See Figure 4).
• Insert a Hex Bolt with Curved Washer through both holes on
each Cane Shaped Handle. Finish with another Curved Washer
and secure with a Capped Nut using a 13 mm Wrench.
Figure 4
DEX
TM
Assembly Instructions #LD-1001 Pg. 3
ASSEMBLY INSTRUCTIONS
STEP FIVE
Testing the Assembly
PRIOR TO USE:
• Test the Lap Pad for smooth and steady rotation.
• Ensure that all fasteners are secure.
The assembly of the DEX • decompression & extension
TM
is now complete! Please remember:
• Read the Instructional Training Manual and accompanying materials thoroughly before using the DEX
TM
. Improper
use could result in serious injury or death.
• Please complete and mail the warranty card.
• Visit www.STLIntl.com for information on the Power VI
TM
Inversion Table, another valuable tool for core training
offering unique and complimentary benefits.
