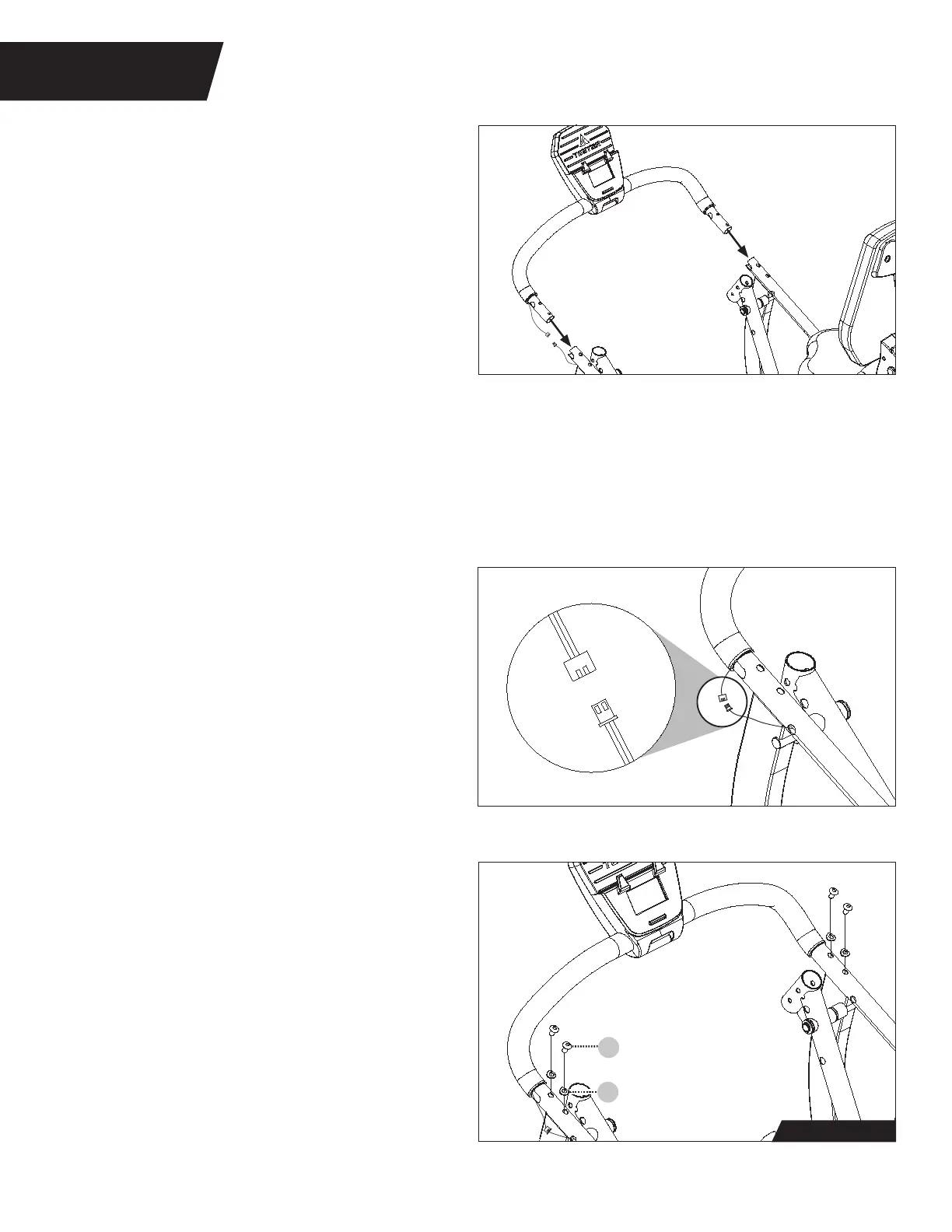

Console Front Support Bar Installation
IMPORTANT: Do not pull or pinch the
Speed Sensor Wire during the Console
Front Support Bar Installation.
Figure 13: Open the Battery Compartment
located on the back of the console. Ensure
that the battery contacts and compartment
are clean. Locate the (2) included batteries
(AA 1.5 V Alkaline) and install them in
the back of the Console in the Battery
Compartment, noting (+) and (-) symbols.
108
Bolt
109
Curved Washer
9
STEP 4
ASSEMBLE SUPPORTS
Step 4a Hardware
Figure 15
Figure 14
Figure 13
Figure 15: Use the Step 4a Hardware Kit
to attach the Console Front Support Bar.
Hand tighten 4 × Bolts with 4 × Curved
Washers as shown. The Curved Washers
should wrap around the shape of the
Lower Console Support Tube.
Proceed to fully tighten the Bolts with the
Allen Wrench.
Figure 14:
Carefully connect the Speed
Sensor Wires.
Ensure that the Speed Sensor Wires remain on the outside. Align both ends of the Console Front
Support Bar with the Lower Console Support Tube and insert.
