Teeter FreeStep - Page 9

STEP
2

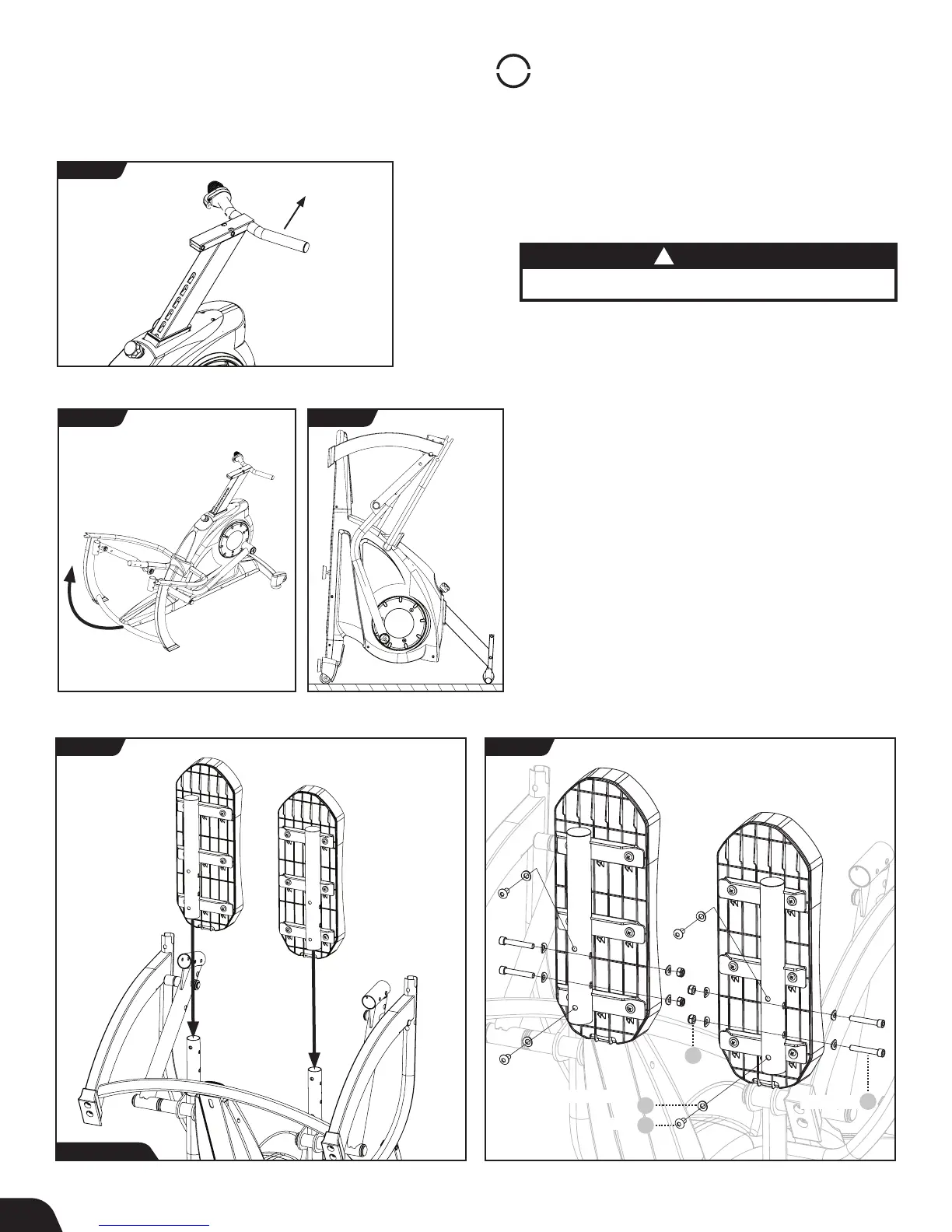

Assemble Pedals
Pedal Installation
• Locate the Seat Post and raise it to the highest position
by pulling up on the Seat Handle (Figure 4).
• To have better access while installing the pedals, position
the FreeStep
™
to rest on its back side by lifting up on the
Front Crossbar and rotating on the Rear Stabilizer until the
Seat Post is resting on the ground (Figure 5 and Figure 6).
• Locate the Pedals, noting Right and Left markings. Insert
both Pedals onto the corresponding Base Pedal Arm
(Figure 7).
• Use the Step 2 Hardware Kit to attach the Pedals.
Hand tighten 4 × Large Bolts with 4 × Curved Washers and
4 × Nuts with 4 × Curved Washers as shown (Figure 8).
The Curved Washers should wrap around the shape of the
Base Pedal Arm and Pedal Mount Tube.
• Proceed to hand tighten 4 × Bolts with 4 × Washers as
shown (Figure 8). Proceed to fully tighten all the nuts and
bolts with Allen and Box-Ended wrenches (Figure 8).
• Once the Pedals are installed, return the FreeStep
™
to
the upright position by lowering the Front Crossbar and
rotating on the Rear Stabilizer.
FIGURE 4
FIGURE 5
FIGURE 7 FIGURE 8
FIGURE 6
Pull Handle
Lift and Flip
REVISIONS
ENGR DATE REV SHT ZONE DESCRIPTION
NMS 10/18/2017 A 1 8D A1: RELEASE FOR PATENT
PARTS LIST
ITEM QTY NET DIMENSIONS/DESCRIPTION NOTE MATERIAL SHT
REVISION STATUS
SHT 1
REV A
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
Teeter_STRIDER ASSEMBLY 201703
SHEET 1 OF 1
REV FILE NAME
TITLE:
NICK SOLLER
ENGR
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
DRAWN
FINISH
AS PROCURED
UNLESS NOTED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: FULL SIZE:
D
A
EXPECTATIONS LLC
PUYALLUP, WA 98391
TOLERANCES
UNLESS NOTED
=
.1
=
.03
= .005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
Teeter_STRIDER ASSEMBLY 201703
SHEET 1 OF 1
REV FILE NAME
TITLE:
NICK SOLLER
ENGR
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
DRAWN
FINISH
AS PROCURED
UNLESS NOTED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: FULL SIZE:
D
A
EXPECTATIONS LLC
PUYALLUP, WA 98391
TOLERANCES
UNLESS NOTED
=
.1
=
.03
= .005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
REVISIONS
ENGR DATE REV SHT ZONE DESCRIPTION
NMS 10/18/2017 A 1 8D A1: RELEASE FOR PATENT
PARTS LIST
ITEM QTY NET DIMENSIONS/DESCRIPTION NOTE MATERIAL SHT
REVISION STATUS
SHT 1
REV A
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
Teeter_STRIDER ASSEMBLY 201703
SHEET 1 OF 1
REV FILE NAME
TITLE:
NICK SOLLER
ENGR
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
DRAWN
FINISH
AS PROCURED
UNLESS NOTED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: FULL SIZE:
D
A
EXPECTATIONS LLC
PUYALLUP, WA 98391
TOLERANCES
UNLESS NOTED
=
.1
=
.03
= .005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
Teeter_STRIDER ASSEMBLY 201703
SHEET 1 OF 1
REV FILE NAME
TITLE:
NICK SOLLER
ENGR
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
DRAWN
FINISH
AS PROCURED
UNLESS NOTED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: FULL SIZE:
D
A
EXPECTATIONS LLC
PUYALLUP, WA 98391
TOLERANCES
UNLESS NOTED
=
.1
=
.03
= .005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
Step 2 Hardware
111
10
10 8
10 9
Large Bolt
Nut
Bolt
Curved Washer
7
CAUTION
!
Use caution to avoid tipping and when lifting heavy objects.
