10
• Ensure that the A-Frame is fully open and locked at the
Spreader Arms (Figure 17).
• Rotate the Table Bed into its use position (Figure 18).
• Loosen the Main Shaft De-Rattler Knob at the base of the
Main Shaft Housing.
NOTE: The De-Rattler Knob is an optional feature that prevents a slight
shift when you invert. Product security is not compromised if you
choose not to tighten the knob.
• With the Height Adjustment Settings on the Main Shaft facing up,
slide the end of the Main Shaft into the Main Shaft Housing at the
base of the Table Bed.
• Pull out the Height-Selector Locking Pin to allow the Main Shaft to
slide in further and release in the desired height setting. Refer to the
Owner’s Manual for more information on selecting your height setting.
• The Main Shaft MUST REST against the Crossbar of the A-Frame
(Figure 19).
NOTE: The Crossbar prevents the Table Bed from rotating forward
when the user steps on the Ankle Comfort Dial. If the Main Shaft does
not rest on the Crossbar as shown in Figure 19, then the Table Bed has
been assembled backwards onto the A-Frame. This must be corrected
before use.
STEP
5
Assemble Main Shaft to Table Bed
The Contour L5 is shown here. Your actual model may vary.

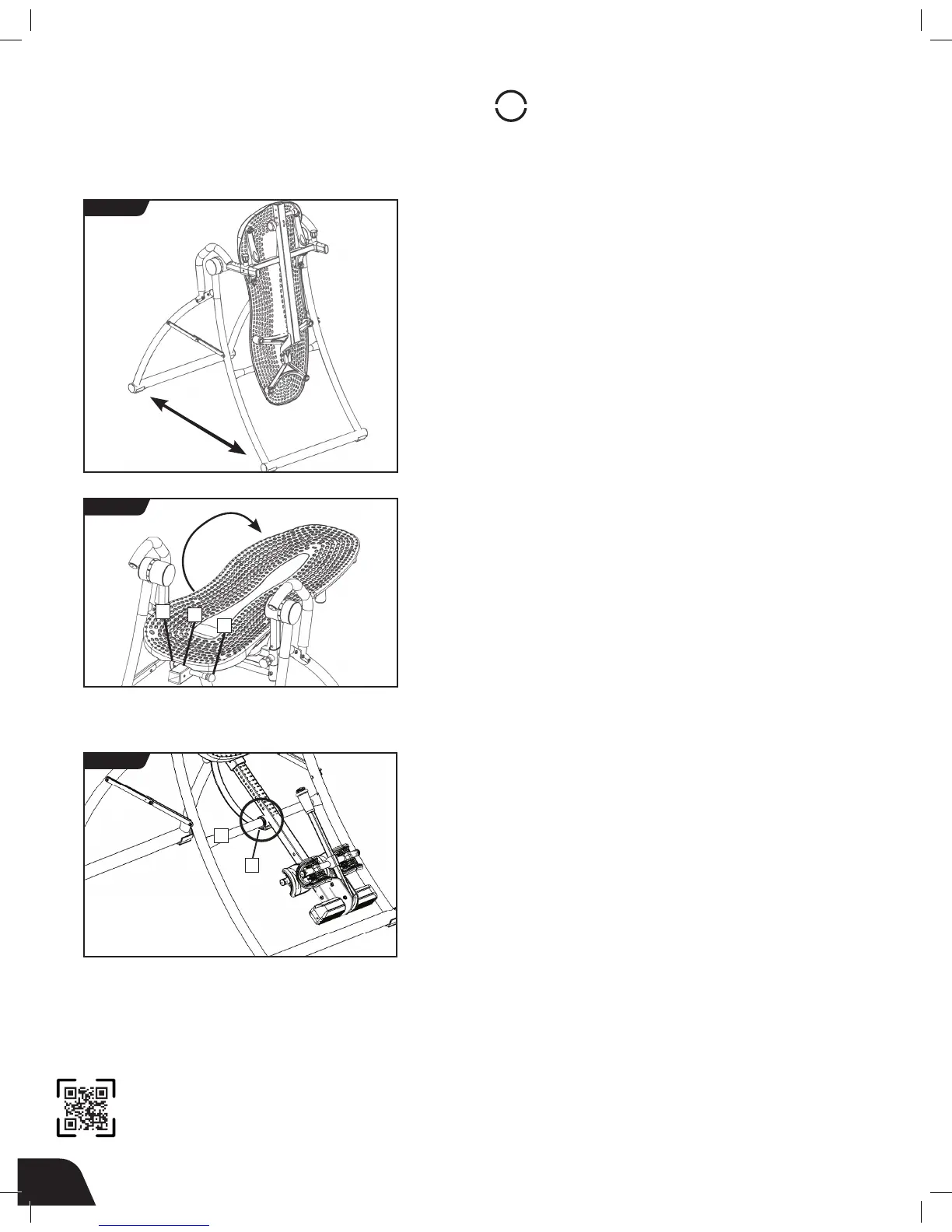

FIGURE 17
FIGURE 18
FIGURE 19
1 - De-Rattler Knob 2 - Main Shaft Housing
3 - Height-Selector Locking Pin
2
1
3
1 - Crossbar 2 - Proper Resting Position
2
1
