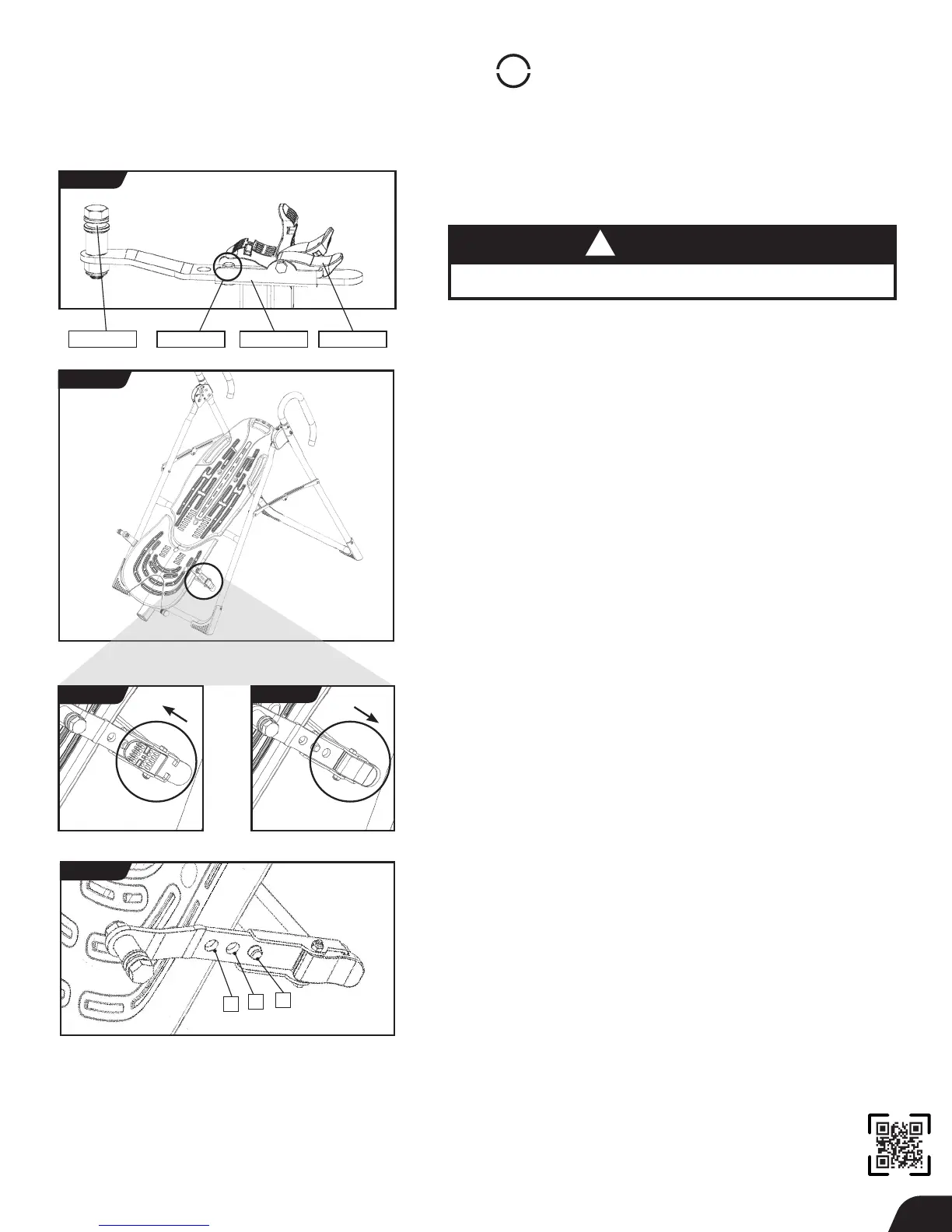

Teeter NXT-S - Page 13

STEP
6
Assemble Roller Hinges to Table Bed
UNLOCKED
Bracket Pin
Cam Lock
Pivot Pin
Bracket
C
B
A
UNLOCK
LOCK
LOCKED
FIGURE 15
FIGURE 17
FIGURE 16
FIGURE 18
FIGURE 19
NEVER disassemble the Roller Hinge Pivot Pin.
WARNING
!
• For ease of assembly, rest the Table Bed against the Crossbar
(Figure 16) at the front of the A-Frame.
• On one side of the Table Bed, lift and hold the Cam Lock up all
the way to unlock (Figure 17).
• In your other hand, hold one Roller Hinge near the Pivot Pin.
With the Pivot Pin facing out (away from the Table Bed), slide the
bottom of the Roller Hinge between the Cam Lock and the Bracket.
TIP: Make sure that the Cam Lock is completely open when inserting
the Roller Hinge, otherwise assembly will be more difficult.
• Engage one of the holes in the Roller Hinge over the Bracket Pin.
Figure 19 shows the Roller Hinge installed correctly, with the
Bracket Pin engaged in Setting C.
NOTE: Refer to the Owner’s Manual for an explanation of the hole
settings. If you are unsure, use Setting C to start.
• Push down on the Cam Lock (Figure 18) to lock it and secure the
Roller Hinge.
• Repeat on other side. Make sure the Roller Hinges are in the
same hole setting on both sides.
• Familiarize yourself with the 3-Hole Roller Hinge and Cam Lock
terms (Figure 15).
