Teikoku API-685 - Sectional View (6 A-8901)

Teikoku USA | Chempump Instruction Manual HE-10677-P (1018)20
D. Sectional View (6A-8901)

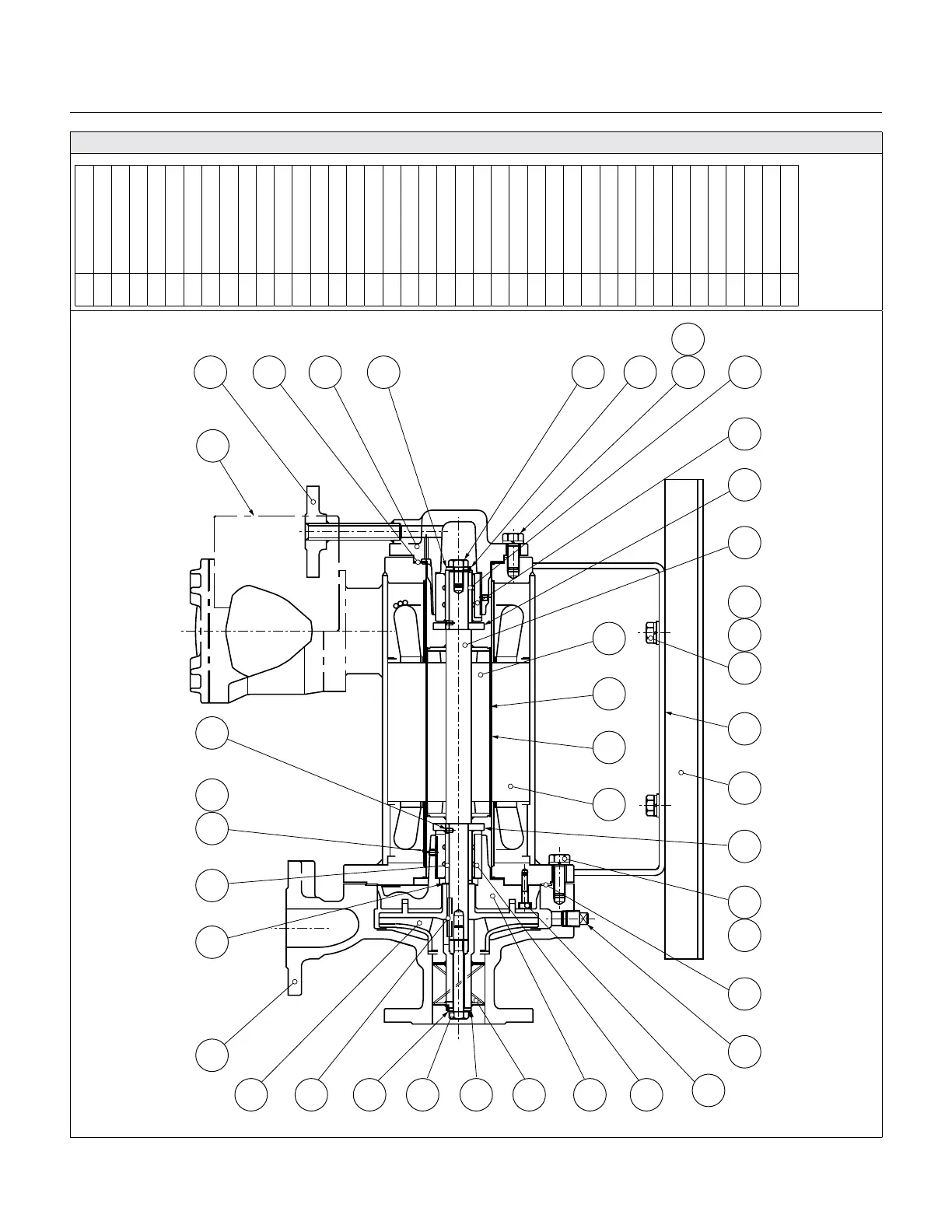

Figure D-1. Sectional View: Teikoku Type-R (Plan 13-SE) Refrigeration Pump
01 Casing 02 Impeller 04 Inducer 14 R.B.Housing
15A Bearing B
15B Bearing A
16 Shaft 17 Shaft Sleeve 18 Thrust Collar 19 Rotor Assembly 20 Stator Assembly 21 Rotor Can 22 Stator Can 24 Terminal Box Ass’y 32 F.B. Housing 38 Reverse Pipe 40 Base 41 Holder
46A Bolt
46B Bolt
46C Bolt 46D Bolt
46E Bolt
46F Bolt
48 Set Screw
53A Spring Washer
53B Spring Washer
53C Spring Washer
54 Plain Washer
55A Washer
55B Washer
55C Washer
56 Adjusting Washer
57A Lock Washer
57B Lock Washer
58A Key
59 Plug 60 Pin
66A Gasket
66B Gasket
38
1920 2122
24
40
41
56
16
17
18
32
14
17
18
59
04
01
02
60
66B
55C
46E
57B
46F 53C
46D 53B
54
15B46C 53A
66A
46B
15A 58A 57A 46A 55A
48
55B
