Teikoku API-685 - Operation; Procedure Before Initial Start; Preparation and Trial Operation

Teikoku USA | Chempump Instruction Manual HE-10677-P (1018)7

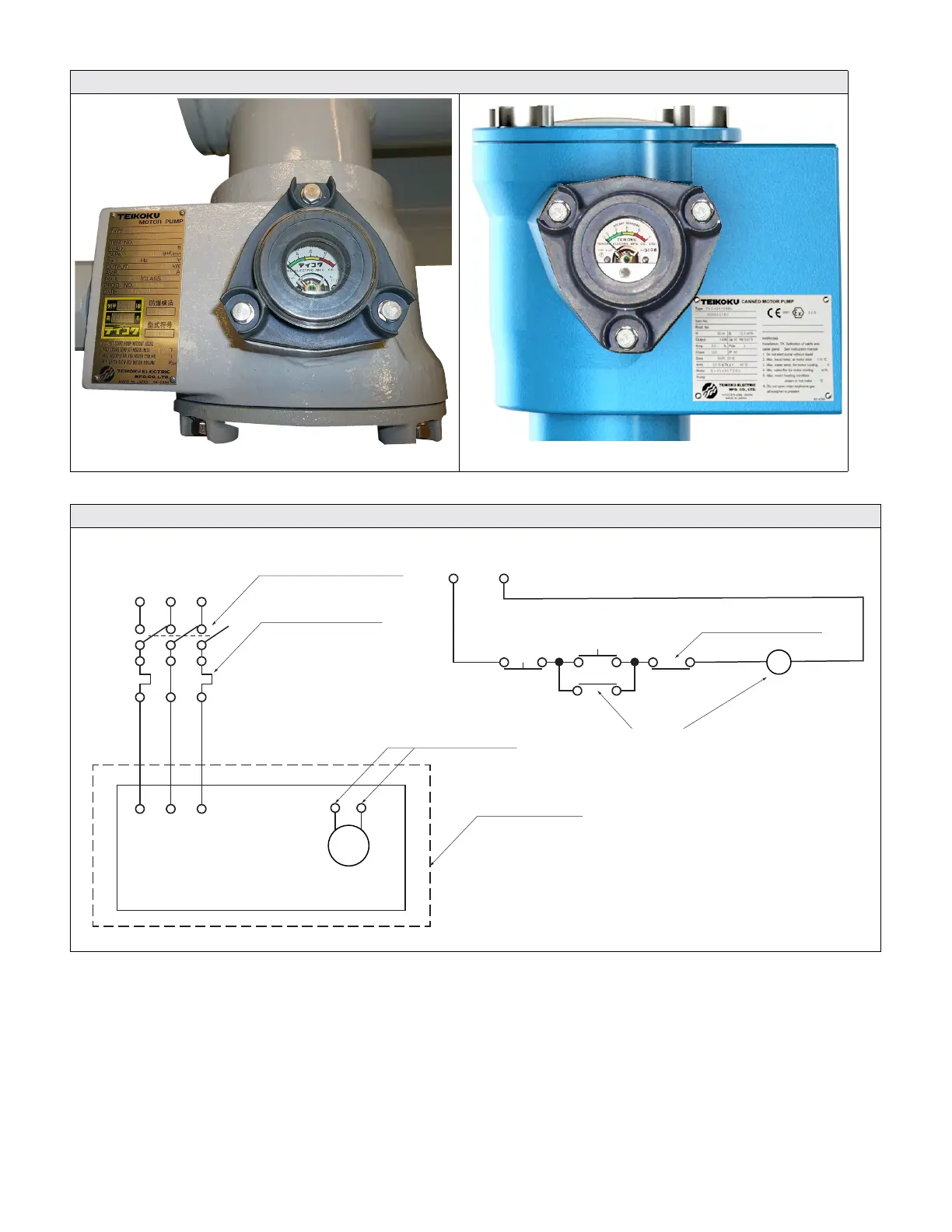

Figure 2-1. Teikoku Type-R (Plan 13-SE) TRG
Figure 2-2. Teikoku Type-R (Plan 13-SE) 460 Volt, 3-Phase
R TS
U WV
MAGNETIC CONTACTOR
THERMAL OVERLOAD
PROTECTIVE DEVICE
TRG
MAGNETIC CONTACTOR
TEIKOKU SUPPLY
G1 G2
OFF
ON
X
NOTE: Teikoku Type R motors manufactured for the
industrial refrigeration market do not include
Thermal Cut-Outs (TCOs). For electrical data refer to
the pump-specic Motor/Pump Data Sheet.
FOR TRG WIRES ONLY
THERMAL OVERLOAD
PROTECTIVE DEVICE
