Teison TS-EVC07-003(S) - Installation Tips and Wiring

Copyright © Teison Energy Technology Co.,Ltd. All Rights Reserved. 8 | P a g e

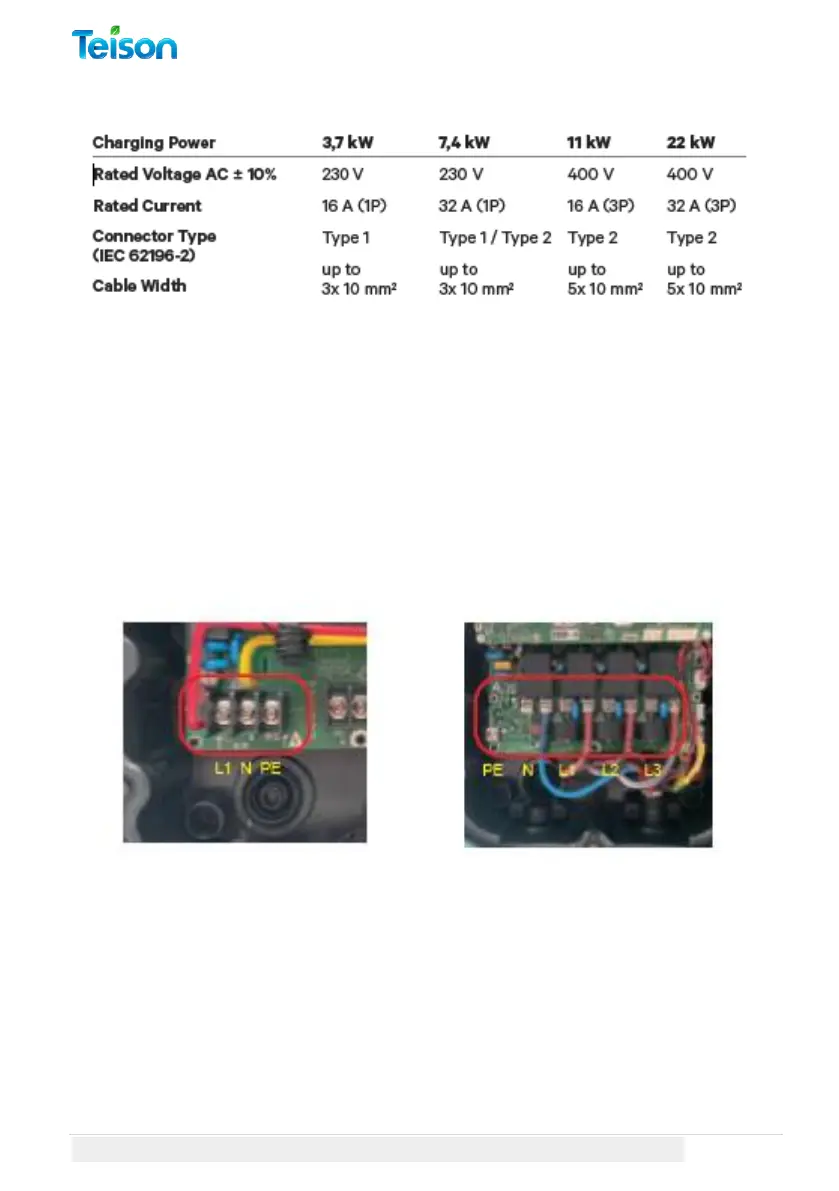

Installing Tips:
This EV Charger is equipped with internal Residual current protection: TYPE B
(AC 30MA + DC 6 MA).
External RCCB is required: Type A or Type B according to local regulations.
Wiring Diagram:
Single Phase:
Three Phase:
