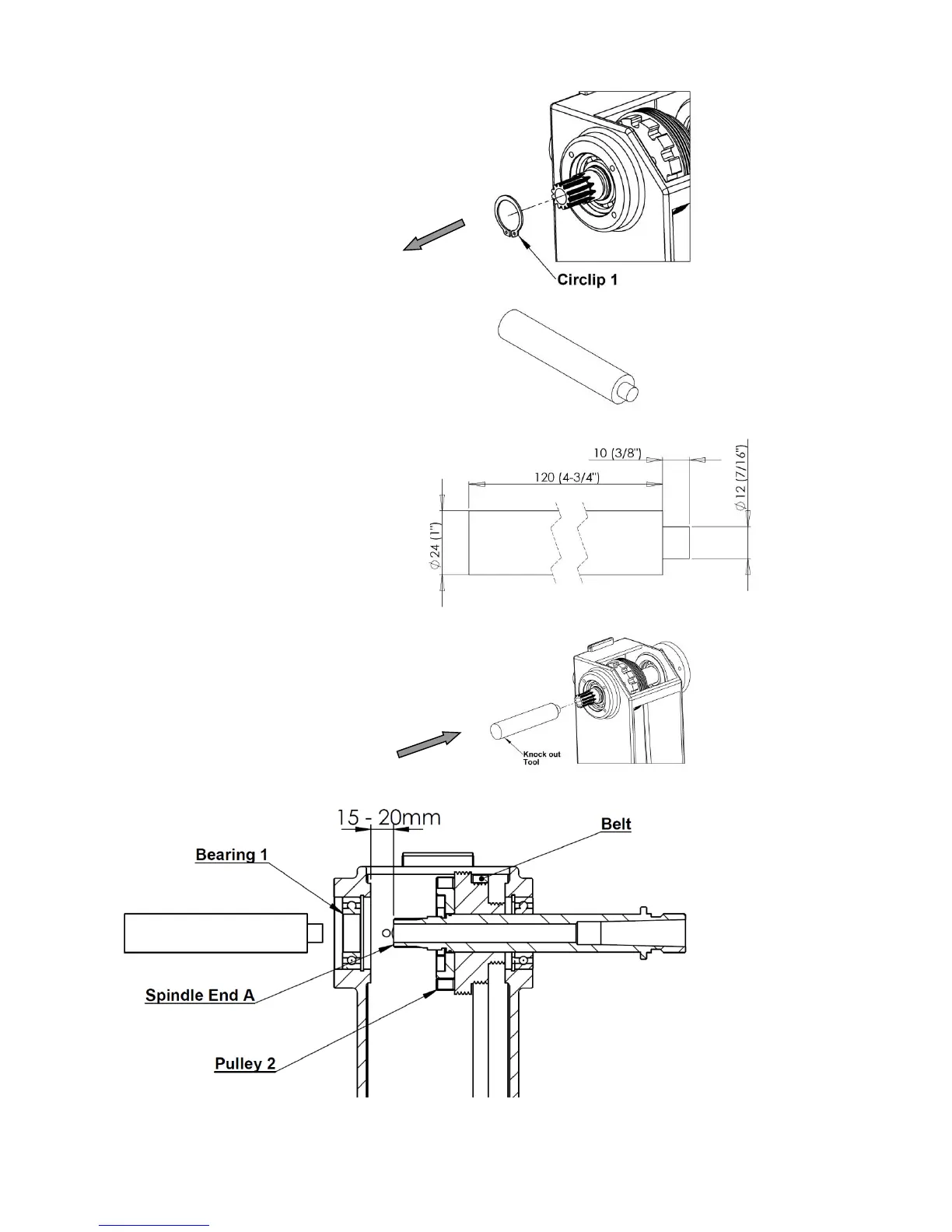

4. Remove Circlip 1 from the
Spindle.
5. Knockout tool requirements:
The knockout tool can be any
round shaft less between 14mm &
24mm (9/16" & 1").
An ideal knock out tool can be
turned to dimensions in drawing to
right.
6. Using the knock out tool and a
small mallet or hammer, tap out
the spindle from Spindle end A
until Spindle end A is
approximately 15 – 20mm (3/4”)
from the inside of Bearing 1.
