SYNAPSE30 30W FM Exciter User Manual
Input Connector
DB9 female ([7] fig. 2)

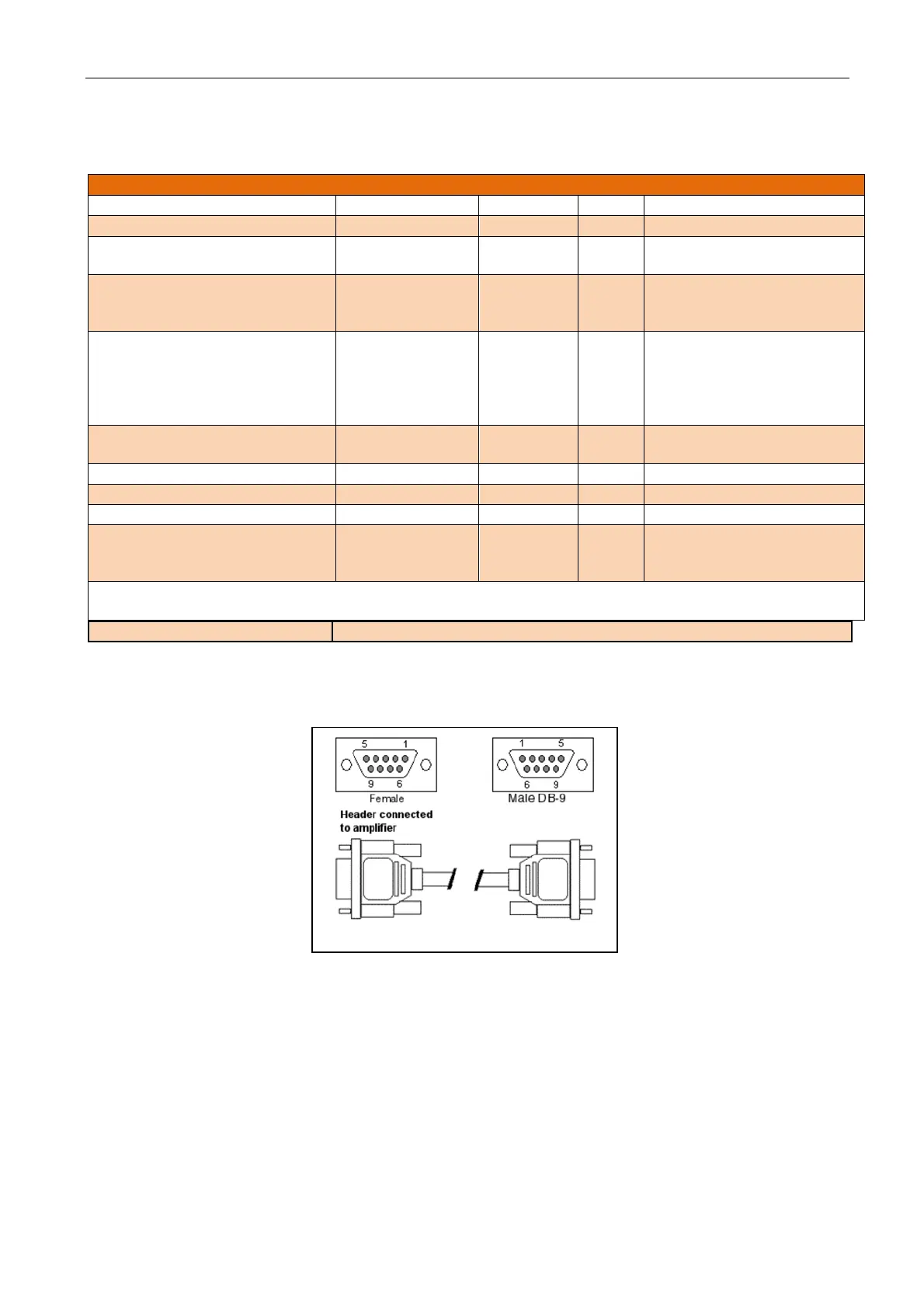

Pinout DB9 Connector
page was intentionally left blank
AUXILIARY TELEMETRY DB9 (REAR PANEL)
Pin
Description
Acronyms
Type
I/O
Value @ / Impedance
1
GROUND –
GND
Gnd
-
2
Current reading – reads
power Amp current
IPA
Analog
value
Æ
3.0V/3A
3
Voltage reading – reads
voltage supplied to power
Amp
VPA
Analog
value
Æ
3.0V/30V
4
Interlock Input – if not
continuously connected to
or open from ground
depending on selection:
N.O or N.C causes ‘Wait’
Interlock In
Control
(TC)
Å
Interlock CMD: L/H= Inhibit
5
Interlock Out
Interlock Out
Signal
(TS)
Æ
GND= Interlocked
6
TP
7
12V0
12 Volt
Power
Æ
8
GROUND –
GND
Gnd
-
9
Forward Output Power –
reads Forward RF Output
power
OUT-FWD-MEAS
Analog
value
Æ
3.0V/30W
Symbols:
Æ
Output
Å
Input
