SYNAPSE30 30W FM Exciter User manual

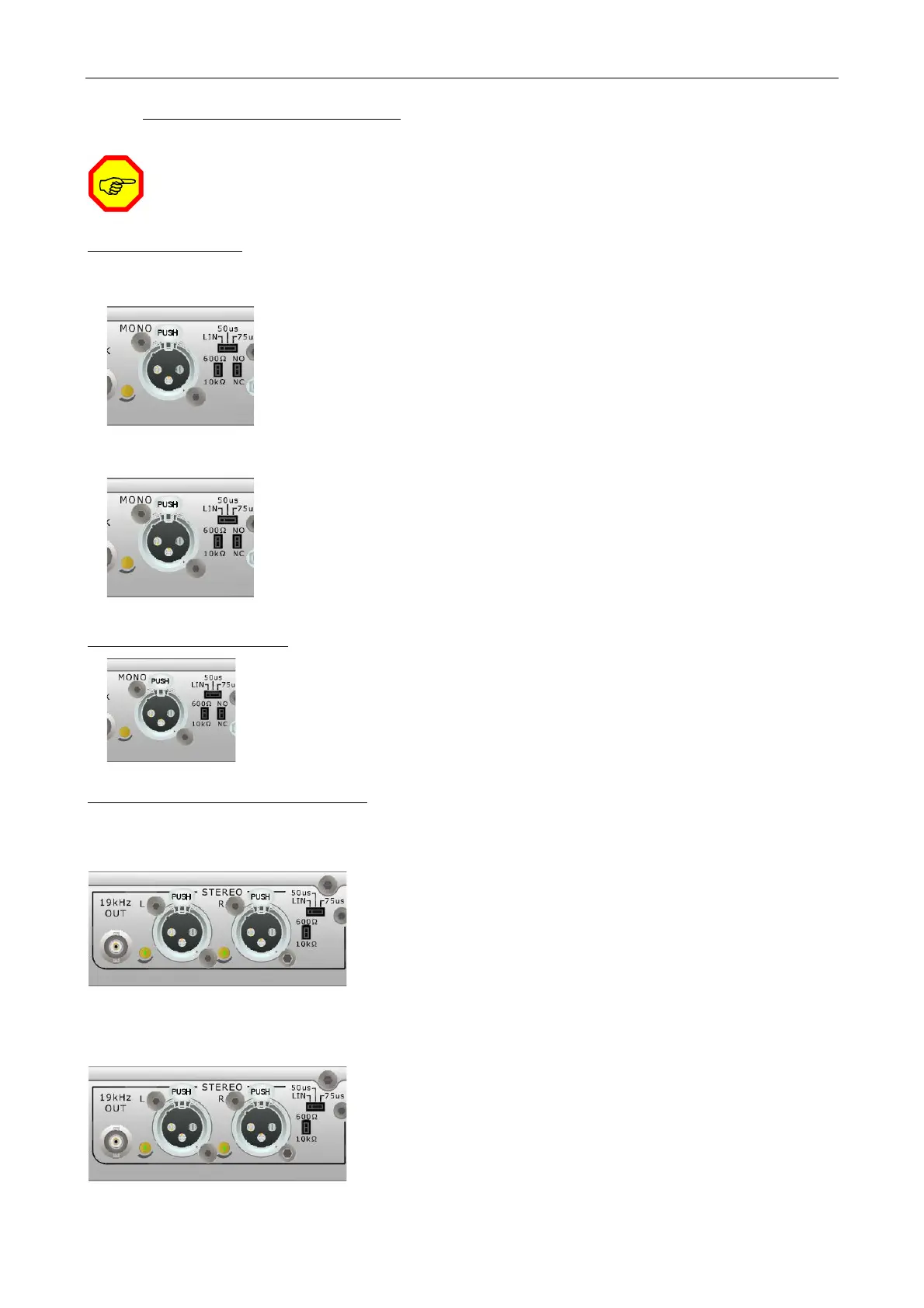

PRELIMINARY SETTINGS

All manual setting are on the rear panel

MONO CHANNEL

Input Impedance Setting and ADJ input Level

Set switch to on 600 or 10K to get the desired input impedance

Trimmer for ADJ AF Input

Preemphasis Mono Channel Setting

Set switch to on Lin-50uS or 75uS to get the desired Preemphasis

INTERLOCK SETTING

Set switch to N.O or N.C

Gli apparati di default vengono settati NO

STEREO CHANNEL OPTIONAL

Input Impedance

Set switch to on 600 or 10K to get the desired input

impedance

Trimmer for ADJ AF Input.Left & Right channel.

Preemphasis Stereo Channel Setting

Set switch to on Lin-50uS or 75uS to get the desired

Preemphasis
