SYNAPSE30 2G 30W FM Exciter User Manual
1

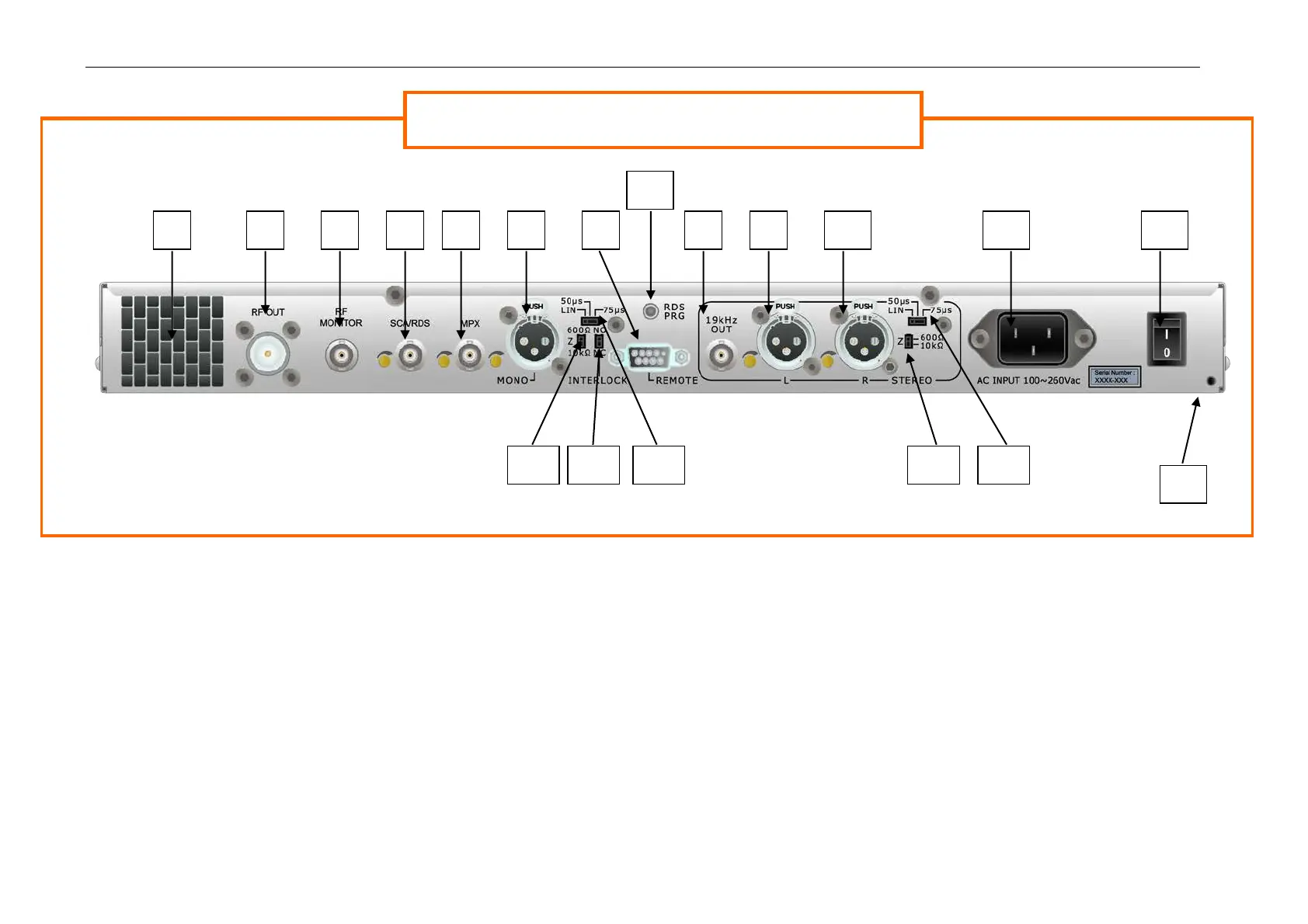

Fig.2
1 - Air Grid Input Outlet
2 - N Female Connector - RF Output
3 - BNC Female Connector – RF Monitor
4 - BNC Female Connector - AUX
5 - BNC Female Connector – MPX
6 - XLR Female Connector – Mono
7 - DB9 Connector - Remote control
8 - BNC Female Connector – 19 KHz Out
9 - XLR Female Connector – L Channel
10 - XLR Female Connector – R Channel
11 - VDE 3p 10A Mains Socket
12 - ON/OFF Switch
13 - Heart Connection
14 - Audio Mono impedance
15 - Interlock
16 - Mono Preemphasis
17 - Audio Stereo impedenze
18 - Stereo Preemphasis
19 - RDS Program (Optional)
SYNAPSE30 200 Rear View
5
6
3
11
7
13
12
SYNAPSE 30 Rear View
4
2
8
9
10
14
15
16
17
18
19
