SYNAPSE30-2G 30W FM Exciter User Manual
1
2
6
5
4
7
3

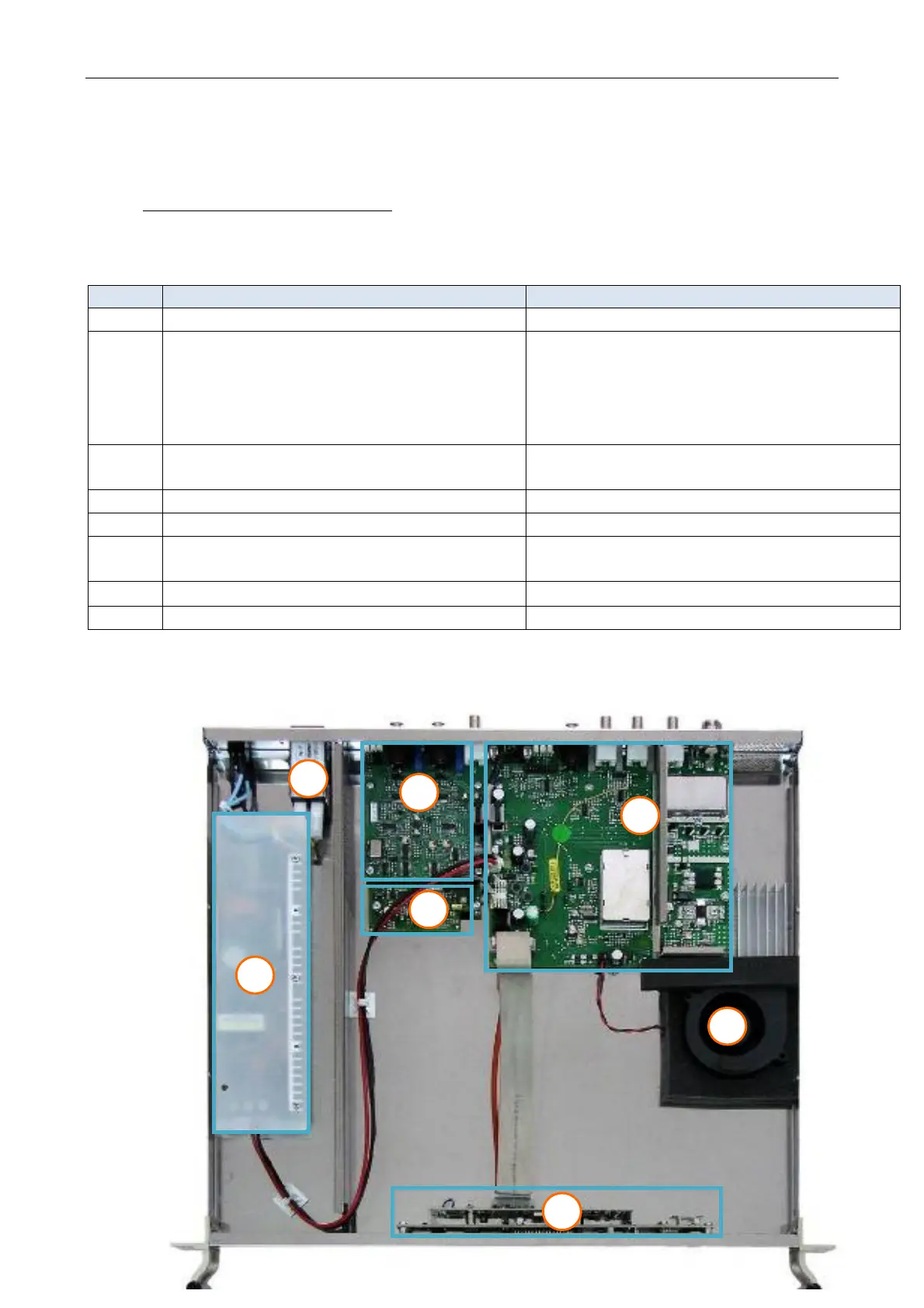

Section Six
SERVICE & MAINTENANCE
EXCITER SUBSYSTEMS
The Exciter is built using the following parts which are replaceable units:
N°item
Description
Code Spare part
1
Mainboard with RF Power and Filter
SDM00810 – SYNAPSE30 MAINBOARD
2
Logic & Display Board
SDI03601 – SYNAPSE30 1HE uP BOARD
SDI03602 – SYNAPSE30 DISPLAY
BOARD
SDI03604 – SYNAPSE30 1HE LED
BOARD
3
AC/DC Power Supply 100-240Vac in
27V-3.8A
APA00060
4
Compact DC Blower 24V 0.27A
ZBD00010
5
RDS Module (Optional)
SDZ00100 - RDS – BOARD
6
Stereo Coder Module (Optional)
SDI03100 – SYNAPSE30
STEREOCODER BOARD
7
VDE Socket with filter
JAH00100
8
24 VDC Blower
ZBD00010
Parts Overview
