Tektronix 2213 Instruction Manual

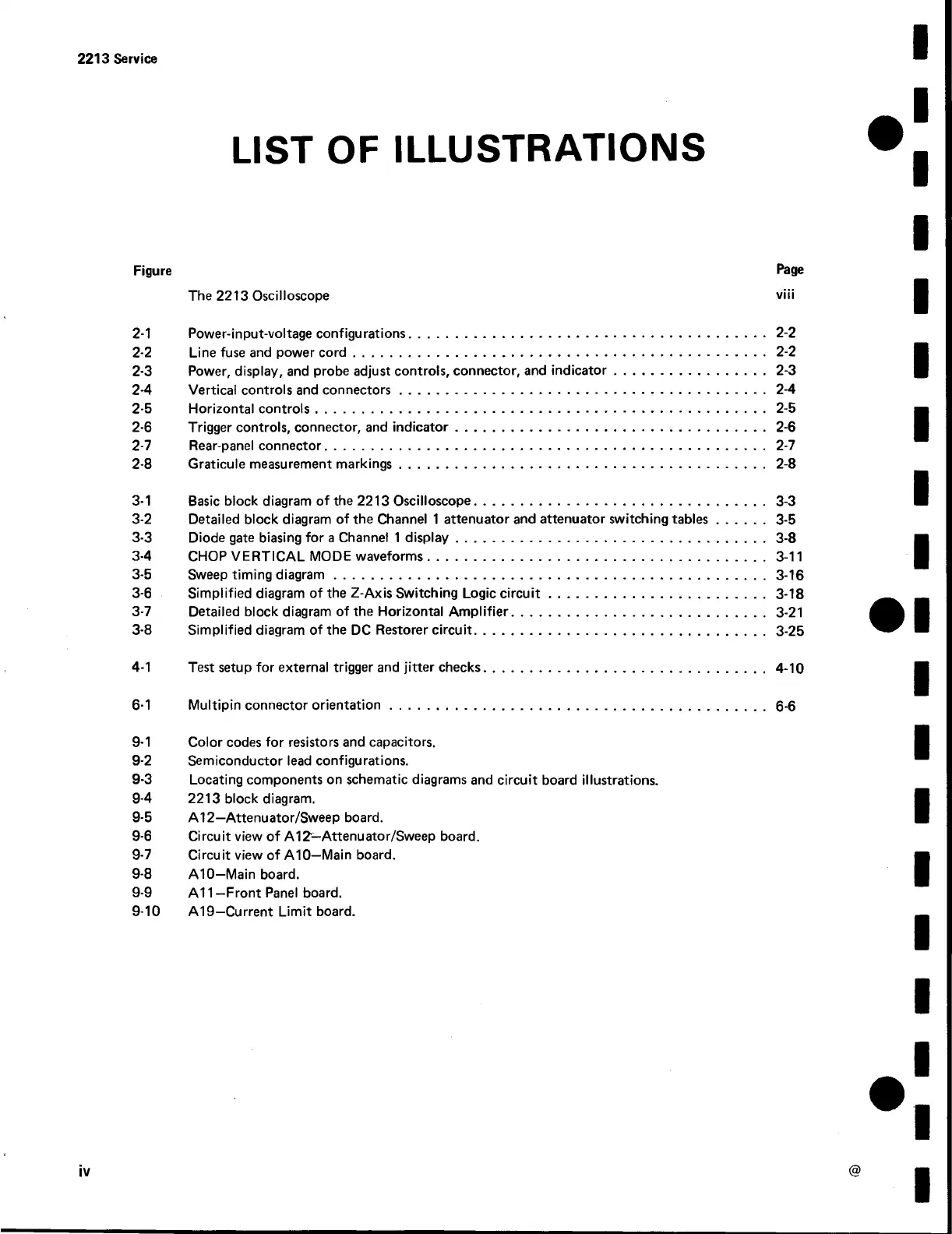

LIST OF ILLUSTRATIONS
2213 Service
Figure Page
The 2213 Oscilloscope viii
2-1 Power-input-voltage configurations.................................................................................................. 2-2
2-2 Line fuse and power c o rd ..................................................................................................................2-2
2-3 Power, display, and probe adjust controls, connector, and indicator .......................................... 2-3
2-4 Vertical controls and connectors.....................................................................................................2-4
2-5 Horizontal controls............................................................................................................................2-5
2-6 Trigger controls, connector, and indicator ..................................................................................... 2-6
2-7 Rear-panel connector......................................................................................................................... 2-7
2- 8 Graticule measurement markings.....................................................................................................2-8
3- 1 Basic block diagram of the 2213 Oscilloscope ................................................................................ 3-3
3-2 Detailed block diagram of the Channel 1 attenuator and attenuator switching tables .............. 3-5
3-3 Diode gate biasing for a Channel 1 display......................................................................................3-8
3-4 CHOP VERTICAL MODE waveforms............................................................................................. 3-11
3-5 Sweep timing diagram .......................................................................................................................3-16
3-6 Simplified diagram of the Z-Axis Switching Logic c irc u it............................................................3-18
3-7 Detailed block diagram of the Horizontal Am plifier ...................................................................... 3-21
3- 8 Simplified diagram of the DC Restorer circuit................................................................................ 3-25
4- 1 Test setup for external trigger and jitter checks.................................................................................4-10
6-1 Multipin connector orientation....................................................................................................... 6-6
9-1 Color codes for resistors and capacitors.
9-2 Semiconductor lead configurations.
9-3 Locating components on schematic diagrams and circuit board illustrations.
9-4 2213 block diagram.
9-5 A12—Attenuator/Sweep board.
9-6 Circuit view of A1Z—Attenuator/Sweep board.
9-7 Circuit view of A10—Main board.
9-8 A10—Main board.
9-9 A11 —Front Panel board.
9-10 A19—Current Limit board.
