Performance Check Procedure—2213 Service

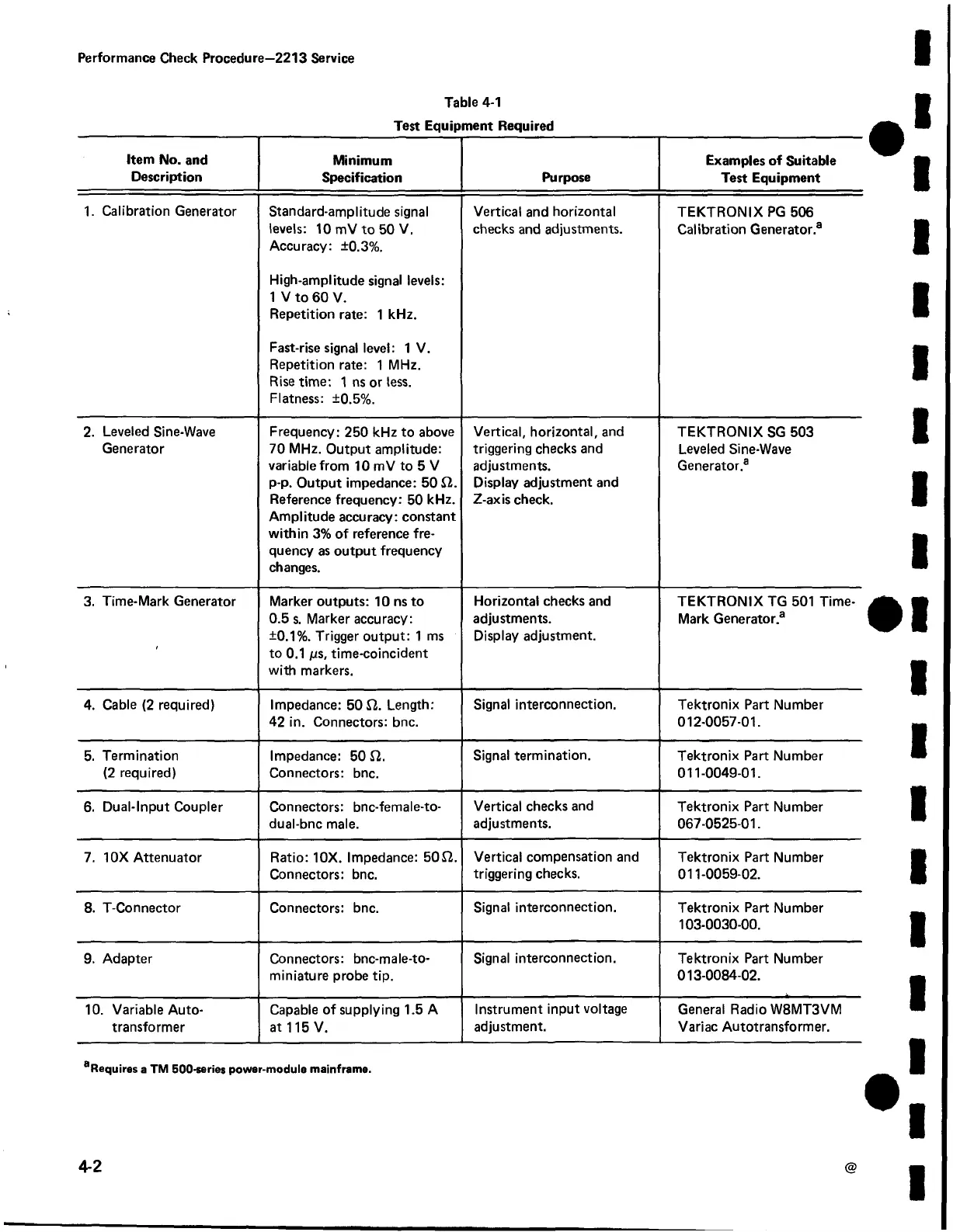

Table 4-1
Test Equipment Required
Item No. and
Description
Minimum
Specification
Purpose
Examples of Suitable
Test Equipment
1. Calibration Generator
Standard-amplitude signal
levels: 10 mV to 50 V.
Accuracy: ±0.3%.
High-amplitude signal levels:
1 V to 60 V.
Repetition rate: 1 kHz.
Fast-rise signal level: IV .
Repetition rate: 1 MHz.
Rise time: 1 ns or less.
Flatness: ±0.5%.
Vertical and horizontal
checks and adjustments.
TEKTRONIX PG 506
Calibration Generator.8
2. Leveled Sine-Wave
Generator
Frequency: 250 kHz to above
70 MHz. Output amplitude:
variable from 10 mV to 5 V
p-p. Output impedance: 50 £2.
Reference frequency: 50 kHz.
Amplitude accuracy: constant
within 3% of reference fre
quency as output frequency
changes.
Vertical, horizontal, and
triggering checks and
adjustments.
Display adjustment and
Z-axis check.
TEKTRONIX SG 503
Leveled Sine-Wave
Generator.8
3. Time-Mark Generator Marker outputs: 10 ns to
0.5 s. Marker accuracy:
±0.1%. Trigger output: 1 ms
to 0.1 jus, time-coincident
with markers.
Horizontal checks and
adjustments.
Display adjustment.
TEKTRONIX TG 501 Time-
Mark Generator.8
4. Cable (2 required)
Impedance: 50 £2. Length:
42 in. Connectors: bnc.
Signal interconnection.
Tektronix Part Number
012-0057-01.
5. Termination
(2 required)
Impedance: 50 £2.
Connectors: bnc.
Signal termination.
Tektronix Part Number
011-0049-01.
6. Dual-Input Coupler
Connectors: bnc-female-to-
dual-bnc male.
Vertical checks and
adjustments.
Tektronix Part Number
067-0525-01.
7. 10X Attenuator Ratio: 10X. Impedance: 50f2.
Connectors: bnc.
Vertical compensation and
triggering checks.
Tektronix Part Number
011-0059-02.
8. T-Connector
Connectors: bnc.
Signal interconnection.
Tektronix Part Number
103-0030-00.
9. Adapter Connectors: bnc-male-to-
miniature probe tip.
Signal interconnection.
Tektronix Part Number
013-0084-02.
10. Variable Auto
transformer
Capable of supplying 1.5 A
at 115 V.
Instrument input voltage
adjustment.
General Radio W8MT3VM
Variac Autotransformer.
aRequires a TM 500-series power-module mainframe.
4-2
@
