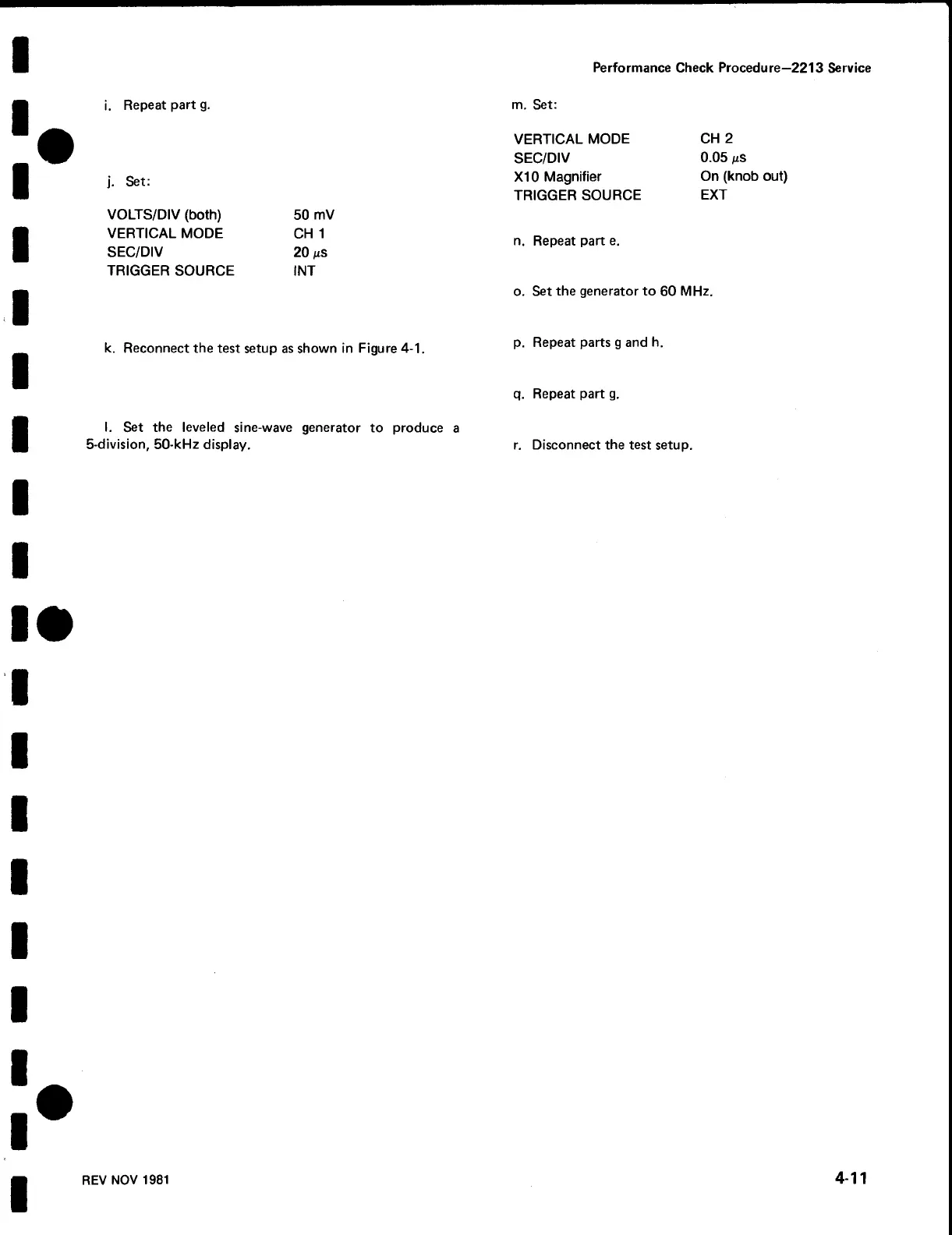

Performance Check Procedure—2213 Service
i. Repeat part g.
j. Set:
VOLTS/DIV (both)
50 mV
VERTICAL MODE CH 1
SEC/DIV
20 ns
TRIGGER SOURCE
INT
m. Set:
VERTICAL MODE
SEC/DIV
X I0 Magnifier
TRIGGER SOURCE
CH 2
0.05 fis
On (knob out)
EXT
n. Repeat part e.
o. Set the generator to 60 MHz.
k. Reconnect the test setup as shown in Figure 4-1. p‘ ^ epeat Parts 9 and h
I. Set the leveled sine-wave generator to
5-division, 50-kHz display.
produce a
q. Repeat part g.
r. Disconnect the test setup.
REV NOV 1981
4-11
