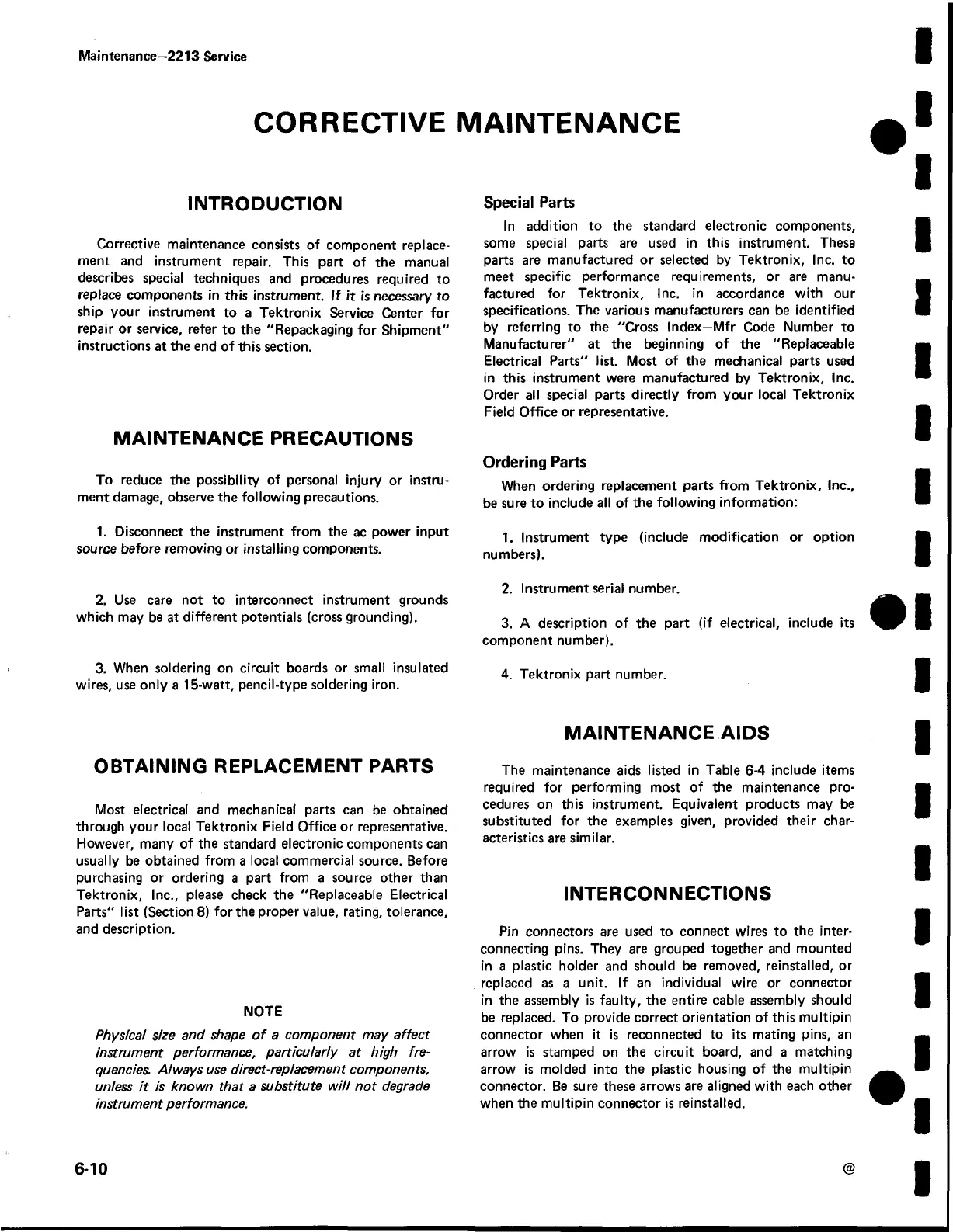

Maintenance—2213 Service
CORRECTIVE MAINTENANCE
INTRODUCTION
Special Parts
Corrective maintenance consists of component replace
ment and instrument repair. This part of the manual
describes special techniques and procedures required to
replace components in this instrument. If it is necessary to
ship your instrument to a Tektronix Service Center for
repair or service, refer to the "Repackaging for Shipment"
instructions at the end of this section.
In addition to the standard electronic components,
some special parts are used in this instrument. These
parts are manufactured or selected by Tektronix, Inc. to
meet specific performance requirements, or are manu
factured for Tektronix, Inc. in accordance with our
specifications. The various manufacturers can be identified
by referring to the "Cross Index—Mfr Code Number to
Manufacturer" at the beginning of the "Replaceable
Electrical Parts" list. Most of the mechanical parts used
in this instrument were manufactured by Tektronix, Inc.
Order all special parts directly from your local Tektronix
Field Office or representative.
MAINTENANCE PRECAUTIONS
Ordering Parts
To reduce the possibility of personal injury or instru
ment damage, observe the following precautions.
When ordering replacement parts from Tektronix, Inc.,
be sure to include all of the following information:
1. Disconnect the instrument from the ac power input
source before removing or installing components.
1. Instrument type (include modification or option
numbers).
2. Use care not to interconnect instrument grounds
which may be at different potentials (cross grounding).
2. Instrument serial number.
3. A description of the part (if electrical, include its
component number).
3. When soldering on circuit boards or small insulated
wires, use only a 15-watt, pencil-type soldering iron.
4. Tektronix part number.
OBTAINING REPLACEMENT PARTS
MAINTENANCE AIDS
The maintenance aids listed in Table 6-4 include items
Most electrical and mechanical parts can be obtained
through your local Tektronix Field Office or representative.
However, many of the standard electronic components can
usually be obtained from a local commercial source. Before
purchasing or ordering a part from a source other than
Tektronix, Inc., please check the "Replaceable Electrical
Parts" list (Section 8) for the proper value, rating, tolerance,
and description.
required for performing most of the maintenance pro
cedures on this instrument. Equivalent products may be
substituted for the examples given, provided their char
acteristics are similar.
INTERCONNECTIONS
Pin connectors are used to connect wires to the inter
NOTE
connecting pins. They are grouped together and mounted
in a plastic holder and should be removed, reinstalled, or
replaced as a unit. If an individual wire or connector
in the assembly is faulty, the entire cable assembly should
be replaced. To provide correct orientation of this multipin
Physical size and shape o f a component may affect
instrument performance, particularly at high fre
quencies. Always use direct-replacement components,
unless it is known that a substitute will not degrade
instrument performance.
connector when it is reconnected to its mating pins, an
arrow is stamped on the circuit board, and a matching
arrow is molded into the plastic housing of the multipin
connector. Be sure these arrows are aligned with each other
when the multipin connector is reinstalled.
6-10
@
