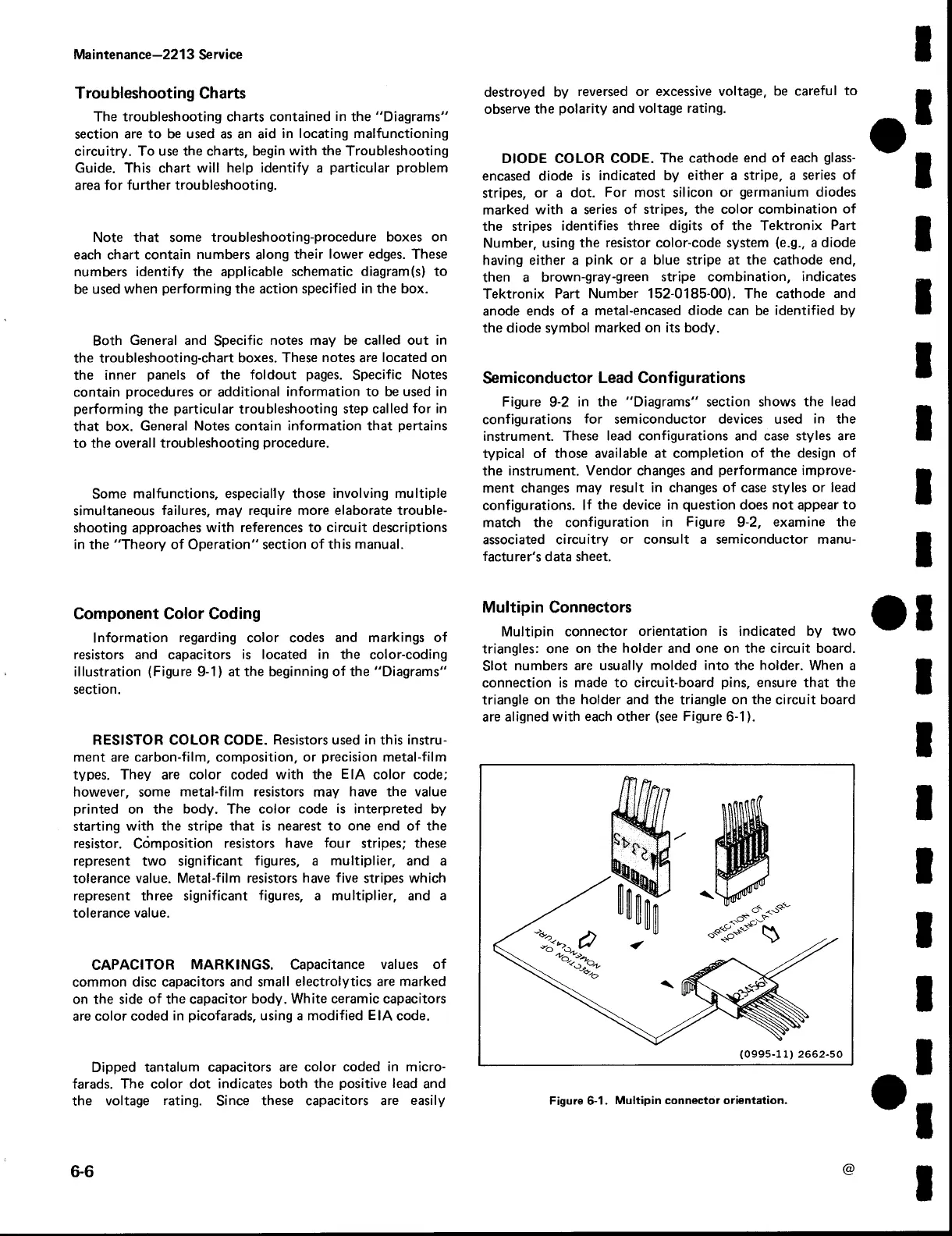

M aintenance-2213 Se r vice
Tro u bles h ooting C h arts
T he tro ub les h ooting c h arts contai n e d in t h e "Diagrams"
section are to be u se d as an aid in locating malfunctioning
circuitry . To use the charts, b egin with t he Troubleshooting
Guide . This chart will hel p i d entify α particular p roblem
area for further troubleshooting
.
N ote that some troubleshooting- p roce d ure boxes on
each chart contain numbers along their lower edges . These
numbers i d entify the applicable schematic d iagram(s) to
be u se d when performing the action s p ecifie d in the box .
B
oth General an d
Sp
ecific notes may b e called out in
the troubleshooting-chart boxes . These notes are locate d
on
the inner p anels of the fol dout p ages . Specific N otes
contain proce d ures or a dd itional information to be u sed in
p erforming the p articular troubleshooting step called for in
that box . General N otes contain information that pertains
to the overall troubleshooting procedure .
Some malfunctions, especial l y those involving multi p le
simultaneous failures, may r equire more elaborate trouble-
shooting approaches with references to circuit descriptions
in the "Theory of Operation" section of this manual .
Com p onent
Color
Co d
ing
Information regarding color codes and markings of
resistors and capacitors is locate d in the color-co d ing
illustration (Figure 9-1) at the b eginning of the "Diagrams"
section .
RESISTOR COLOR CODE . R esistors use d i n t his instru-
ment are carbon-film, composition, or precision metal-film
types . They are color coded with t he ΕΙΑ color code ;
h owever, some metal-film resistors may have the value
printed on the body . The color co d e is interpreted by
starting with t he stripe that is nearest to one end of the
resistor . Composition resistors h ave four stripes ; these
r epresent
two significant figures, α multiplier, and α
tolerance
value . M etal-film resistors have five stripes which
represent three significant figures, α multi
p lier,
an d α
tolerance value .
CAPACITOR MARKINGS . Cap acitance values of
common d isc capacitors and small electrolytics
are
marked
on the si de of the capacitor body . White ceramic capacitors
are color co de d in
p
icofarads,
using α
modifie d ΕΙΑ code
.
Di p ped
tantalum capacitors are color code d in micro-
f arads . The color dot indicates both t he positive lea d an d
t he voltage rating . Since these capacitors are easily
6-6
d estroyed by r everse d or excessive voltage,
b e caref u l to
o b serve the p olarity an
d voltage rating .
DIODE COLOR CODE
. The cathode end of each glass-
encase d diode is
in d icate d by either α stripe, α series of
stripes, or α
d ot . F or most silicon or germanium d iodes
marked with α series of stripes, the color combination of
the stripes identifies three d igits of the Tektronix
P
art
N umber, using the resistor color-code system
(e .g .,
α
d io de
h aving either α p
ink
or α blue stri
p e
at
the
catho
d e end ,
then
α
bro w n-gray-green stripe combination, in d icates
Tektronix P art N umber 152-0185-00) . The cathode and
ano d e end s of α metal-encase d dio d e can b e i d entifie d by
the d iode symbol marked on its b ody .
Semicond uctor L ea d Configurations
F igure
9-2
in the "Diagrams" section shows the lea d
configurations
for semicon d uctor devices use d in the
instrument . These lea d configurations and case styles are
typical
of those
available
at
completion of the d esign of
the instrument . V end or changes and p
erformance improve-
ment changes
may result in changes of case styles or lead
configurations . If
the device in question does not appear to
match t he
configuration in Figure
9-2,
examine the
associated
circuitry or consult α semiconductor manu-
facturer's data
sheet
.
M ulti p
in
Connectors
Multipin
connector orientation is indicated by two
triangles :
one
on
the holder and one on the circuit boar d .
Slot
numbers are usually molded into the holder . When α
connection is made to circuit-boar d pins, ensure that the
triangle on the h ol d er an d t he triangle on the circuit board
are aligned with each other (see F igure 6-1) .
F igure 6-1 .
Multipin connector o rientation .
