Section 3-—2246 Operators
CONTROLS, CONNECTORS,
AND INDICATORS
CRT, POWER, and DISPLAY
See Figure 3-1 for items 1 through 9.
© POWER Switch—Turns instrument power on and
off. Press in for ON; press again for OFF.
Power-on is indicated by the front-panel control but-
tons. At least one of the back-lighted buttons will be
lit at any time the instrument is on. Front-panel
switch settings present at power-off will be returned
when power is reapplied to the instrument (except
for the menus and the B SEC/DIV switch setting if
different than the A SEC/DIV switch setting). The A
AND B SEC/DIV settings are locked together at
power up. Potentiometer settings are not retained in
memory.
Tektronix 2246
(2) A INTEN Control—Adjusts brightness of the A
trace. Brightness is increased when the control is
rotated clockwise.
B
INTEN
Contrel—Adjusts
brightness
of
the
B
Delayed
Sweep
trace
and
the
intensified
zone
on
the
A
trace.
Brightness
is
increased
when
the
control
is
rotated
clockwise.
FOCUS Control—-Adjusts the traces, readout, and
cursors for optimum display definition.
G) TRACE ROTATION Control—Aligns the ert trace
with the horizontal graticule lines.
0
(e)
000000
30 |e |
jo
T el
©
o
9
o
o
Dell Del De
Ch
6083-03

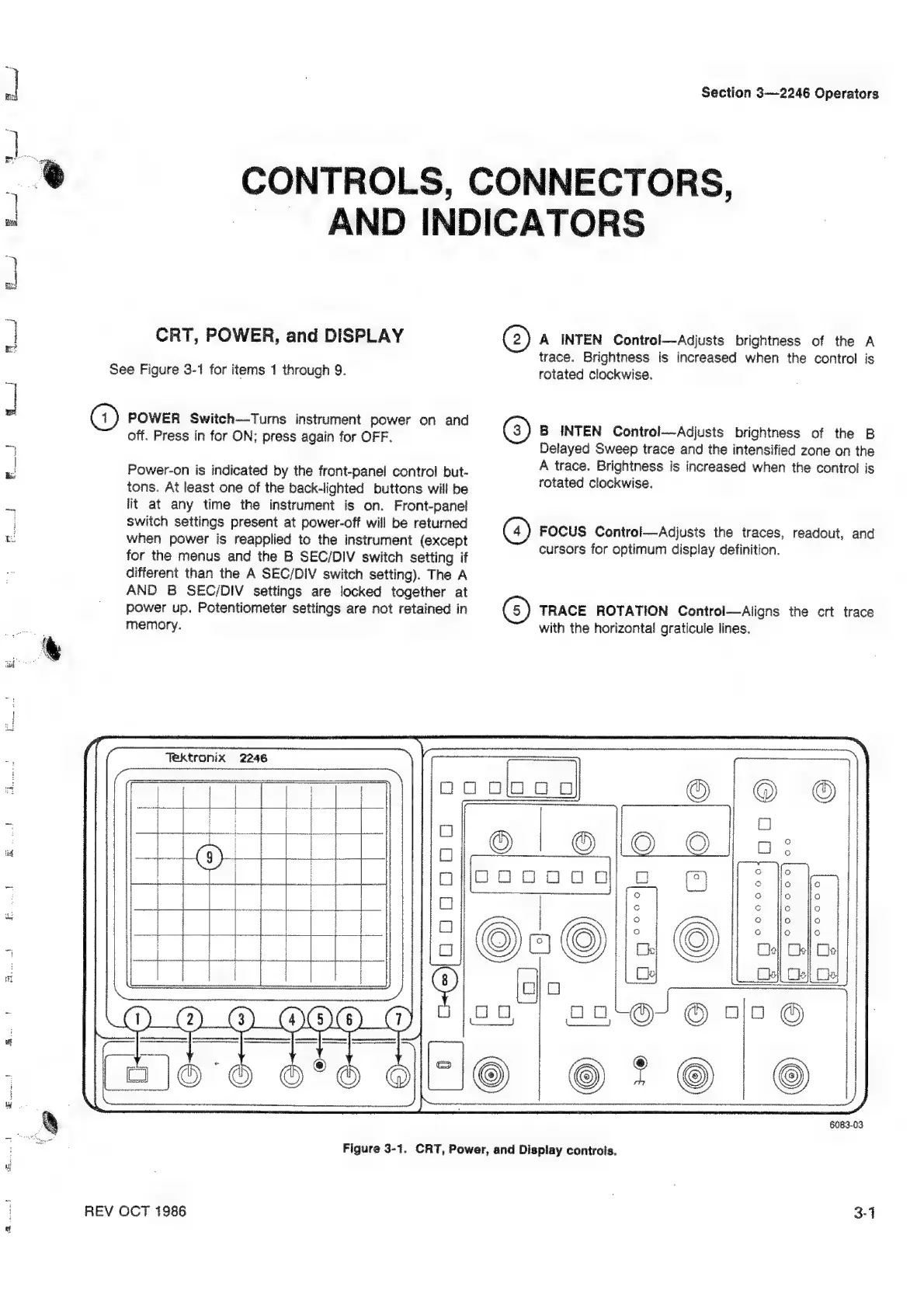

Figure 3-1. CRT, Power, and Display controis.
REV OCT 1986
3-1
