Tektronix 2246 User Manual

Measurement
Processes
and
Applications—
2246
Operators

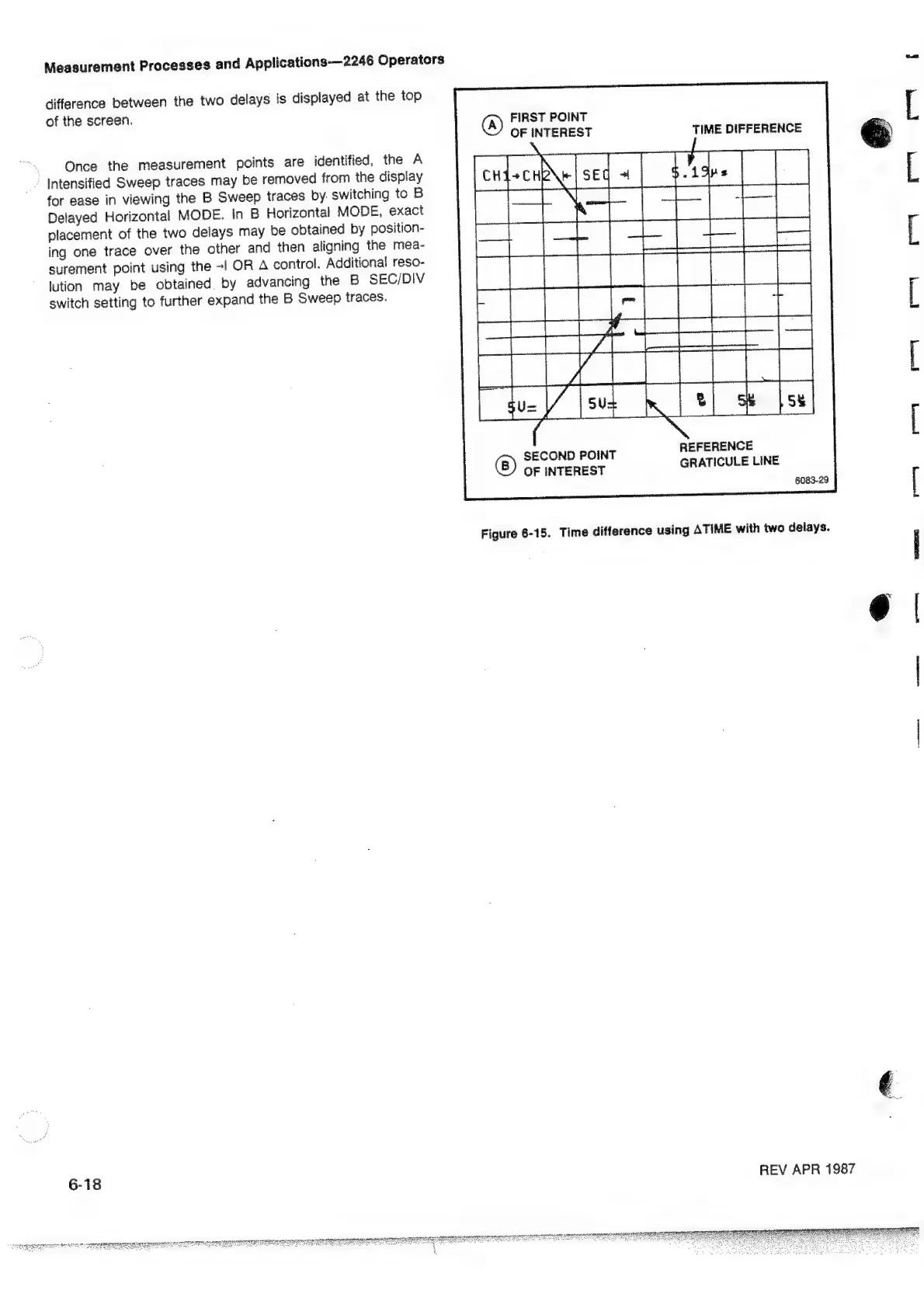

Z
difference
between
the
two
delays
is
displayed
at
the
top
of
the
screen.
EIRST
POINT
OF
INTEREST
TIME
DIFFERENCE
.
Once
the
measurement
points
are
identified,
the
A
Intensified
Sweep
traces
may
be
removed
from
the
dispiay
for
ease
in
viewing
the
B
Sweep
traces
by
switching
to
B
Delayed
Horizontal
MODE.
In
B
Horizontal
MODE,
exact
placement
of
the
two
delays
may
be
obtained
by
position-
ing
one
trace
over
the
other
and
then
aligning
the
mea-
surement
point
using
the
-|
OR
A
control.
Additional
reso-
lution
may
be
obtained.
by
advancing
the
B
SEC/DIV
switch
setting
to
further
expand
the
B
Sweep
traces.
REFERENCE
SECOND POINT
OF
INTEREST
GRATICULE
LINE
6083-29
6-18
REV
APR
1987
