Basic Applications
NOTE
For triggering to be set up properly when the AUTO SETUP
button is pressed, connect the trigger-source signal to the
lowest numbered channel that will be turned on.
2. Set:
VERTICAL MODE As desired
Horizontal MODE A or X-Y
3. Press AUTO SETUP button.
4. Press the CURSOR VOLTS button to display the measurement selection
menu and select the I- VOLTS~I cursors. The voltage cursors are
initialized to the peak-to-peak levels of the lowest numbered displayed
channel of either CH 1 or CH 2 (see Figure 5-3).
PK-PK VOLTAGE
|
46 |5aU
. 598=
6556-26

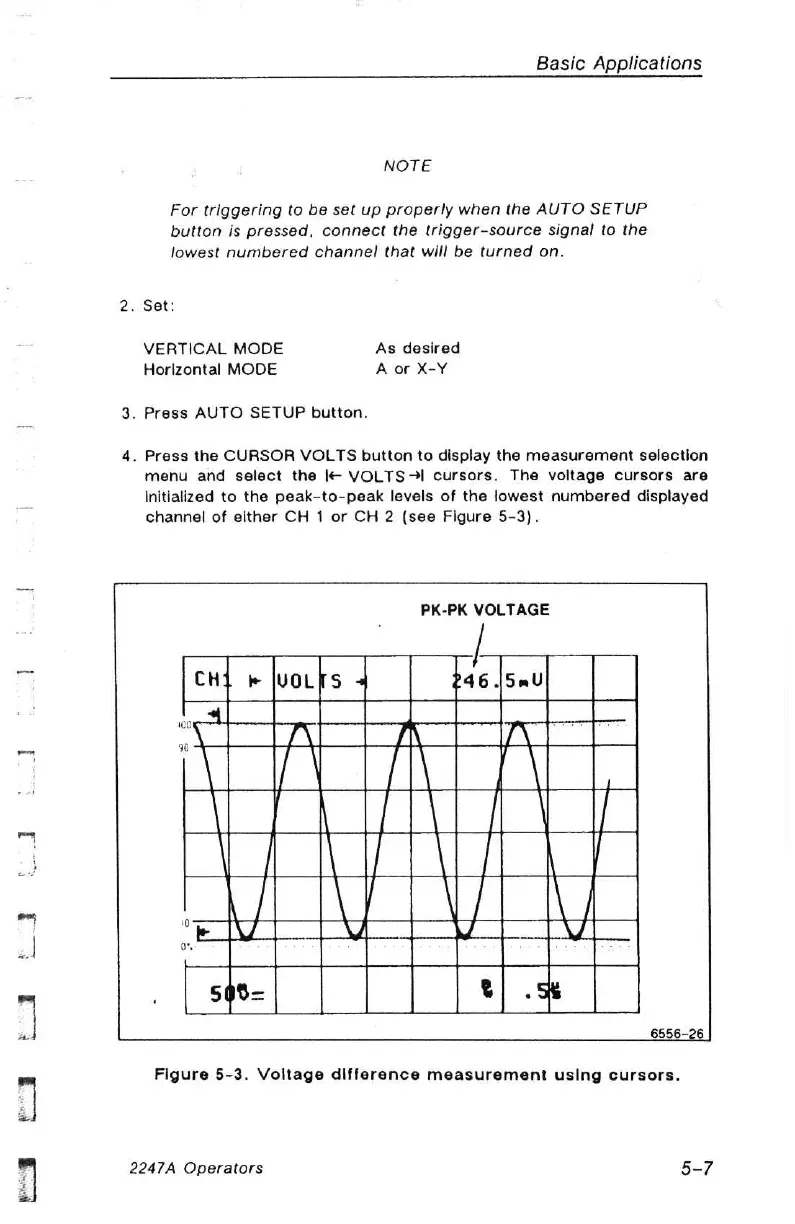

Figure 5-3. Voltage difference measurement using cursors.
2247A Operators 5-7
