Introduction
PRODUCT OVERVIEW
Description
The
2247A
Is
a
100
MHz,
four-channel,
dual-sweep,
portable
oscilloscope
for
general-purpose
use
(Figure
1-1),
A
microprocessor~based
operating
system
controls
most
of
the
functions
in
the
instrument,
including
a
fully
integrated
menu-driven
voltage
and
time
measurement
system
-with
SmartCursors®.
A
counter/timer
(C/T)
is
Integrated
into
the
trigger
sys-
tem
to
provide
many
automated
counting
and
timing
measurements
with
high
accuracy.
Other
features
include
single-button
automatic
front-panel
setup
and
a
menu-driven
store/recall
setup
functlon.
A
menu-driven
service
mode
provides
for
configuring
of
certain
menu
and
readout
displays,
internal
calibration,
and
servicing
diagnostics.

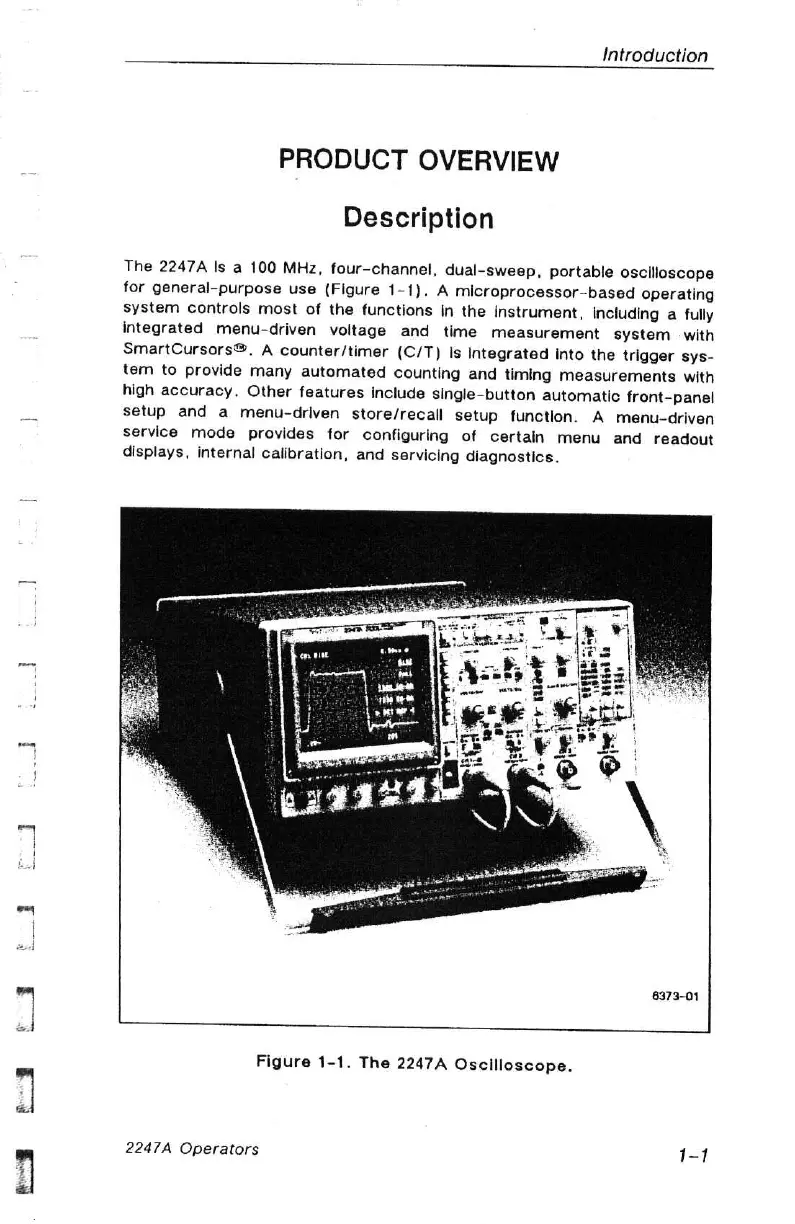

Figure
1-1.
The
2247A
Oscilloscope.
