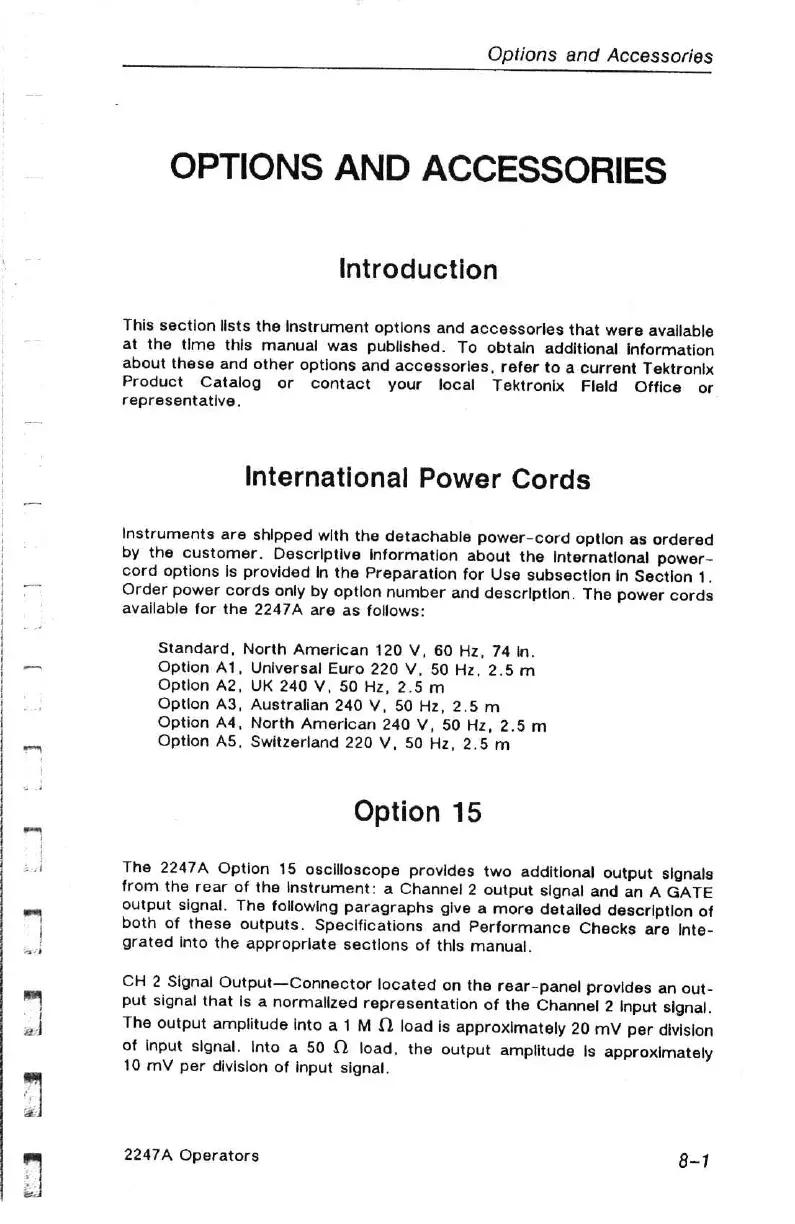

Options and Accessories
OPTIONS
AND
ACCESSORIES
Introduction
This
section
lists
the
Instrument
options
and
accessorles
that
were
avallable
at
the
time
this
manual
was
published.
To
obtain
additional
information
about
these
and
other
options
and
accessories,
refer
to
a
current
Tektronix
Product Catalog
or
contact
your
local
Tektronix
Field
Office
or
representative.
International Power Cords
Instruments
are
shipped
with
the
detachable
power-cord
option
as
ordered
by
the
customer.
Descriptive
information
about
the
International
power-
cord
options
Is
provided
In
the
Preparation
for
Use
subsection
in
Section
1.
Order
power
cords
only
by
option
number
and
description.
The
power
cords
available
for the 2247A
are as
follows:
Standard,
North
American
120
V,
60 Hz,
74
In.
Option
A1,
Universal
Euro
220
V,
50
Hz,
2.5m
Option
A2,
UK
240
V,
50
Hz,
2.5m
Option
A3,
Australian
240
V,
50
Hz,
2.5m
Option
A4,
North
American
240
V,
50
Hz,
2.5m
Option
AS,
Switzerland
220
V,
50
Hz,
2.5m
Option 15
The
2247A
Option
15
oscilloscope
provides
two
additional
output
signals
from
the
rear
of
the
Instrument:
a
Channel
2
output
signal
and
an
A
GATE
output
signal.
The
following
paragraphs
give
a
more
detalled
description
of
both
of
these
outputs.
Specifications
and
Performance
Checks
are
Inte-
grated
into
the
appropriate
sections
of
thls
manual.
CH
2
Signal
Output—Connector
located
on the
rear-panel
provides
an
out-
put
signal
that
is
a
normalized
representation
of
the
Channel
2
Input
signal.
The
output
amplitude
into
a
1M
2
load
is
approximately
20
mV
per
division
of
Input
signal.
Into
a
50
Q
load,
the
output
amplitude
is
approximately
10
mV
per
division
of
input
signal.
2247A
Operators
8-1
