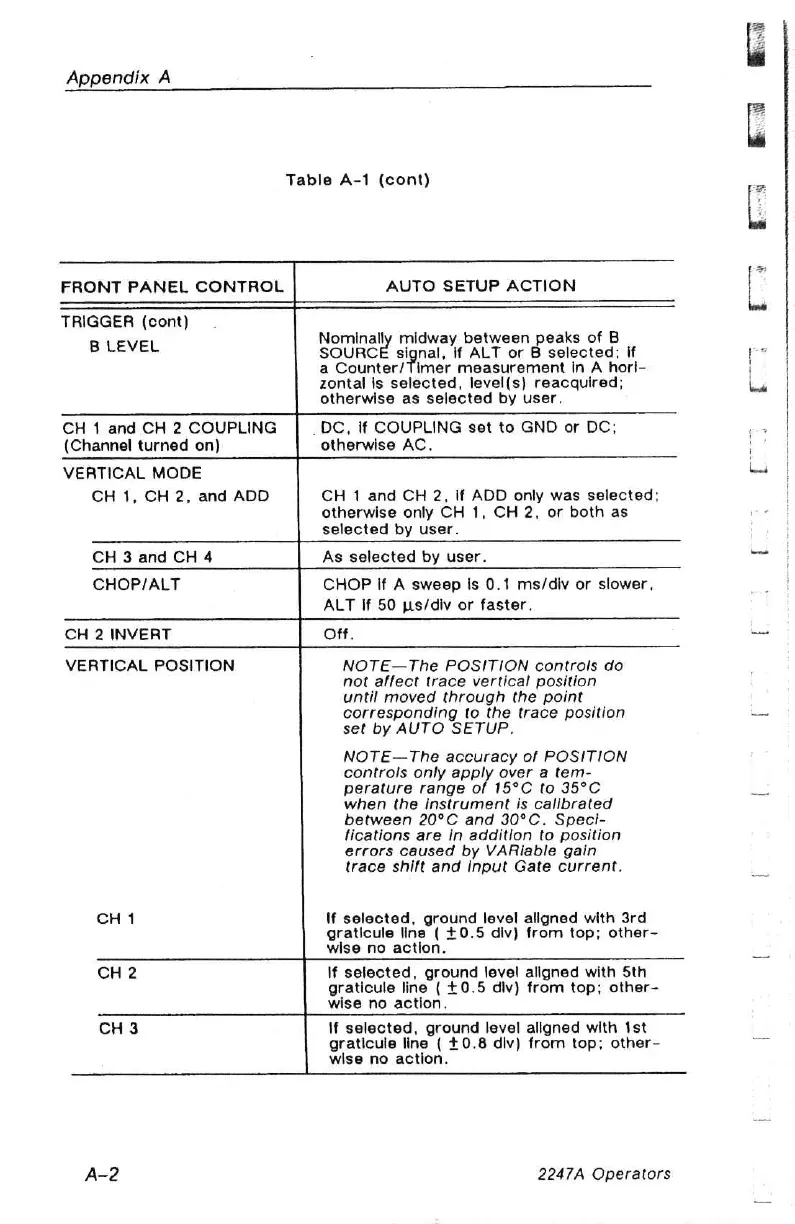

Appendix
A
Table
A-1
(cont)
FRONT PANEL
CONTROL
AUTO
SETUP
ACTION
TRIGGER
(cont)
B
LEVEL
Nominall
midway
between
peaks
of
B
SOURC!
nal,
if
ALT
or
B
selected;
if
a
Gaunten!
imer
measurement
in
A
horl-
zontal
is
selected,
level(s)
reacquired;
otherwise
as
selected
by
user.
CH
1
and
CH
2
COUPLING
(Channel
turned
on)
DC,
If
COUPLING
set
to
GND
or
DC;
otherwise
AC.
VERTICAL
MODE
CH
1,
CH
2,
and
ADD
CH
1
and
CH
2,
if
ADD
only
was
selected;
otherwise
only
CH
1,
CH
2,
or
both
as
selected
by
user.
CH
3
and
CH
4
As
selected
by
user.
CHOP/ALT
CHOP
if
A
sweep
is
0.1
ms/div
or
slower,
ALT
If
50
js/div
or
faster.
CH
2
INVERT
Off.
VERTICAL
POSITION
CH
1
CH
2
CH3
NOTE—The
POSITION
controls
do
not
affect
trace
vertical
position
until
moved
through
the
point
corresponding
to
the
trace
position
set
by
AUTO
SETUP.
NOTE—The
accuracy
of
POSITION
controls
only
apply
over
a
tem-
perature
range
of
15°C
to
35°C
when
the
Instrument
is
calibrated
between
20°C
and
30°C.
Speci-
fications
are
in
addition
to
position
errors
caused
by
VARiable
gain
trace
shift
and
input
Gate
current.
\f
selected,
ground
level
allgned
with
3rd
graticule
line
(
+0.5
div)
from
top;
other-
wise
no
action.
If
selected,
ground
level
aligned
with
5th
graticule
line
(
+0.5
div)
from
top;
other-
wise
no
action.
\f
selected,
ground
level
aligned
with
{st
graticule
line
(
+0.8
div)
from
top;
other-
wise
no
action.
2247A
Operators
