Tektronix 2247A

Appendix A

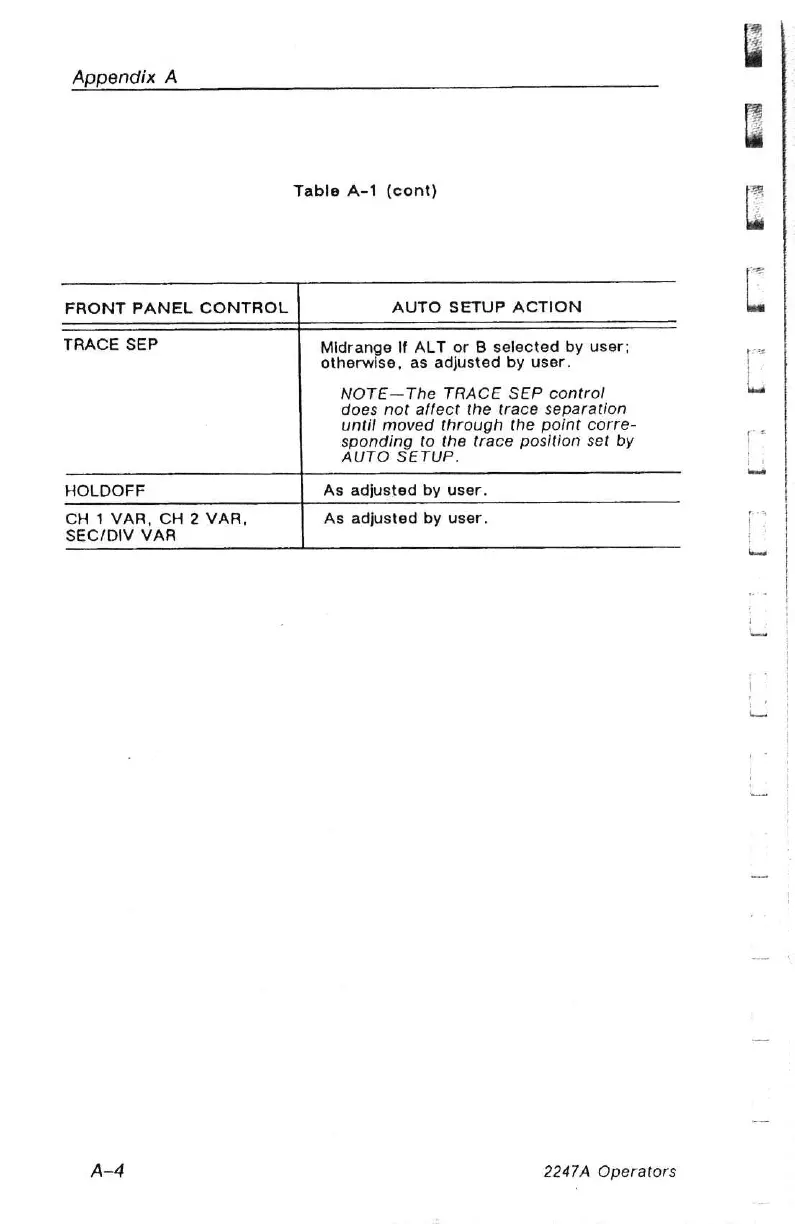

Table A-1 (cont)
FRONT PANEL CONTROL
AUTO SETUP ACTION
TRACE SEP Midrange If ALT or B selected by user;
otherwise, as adjusted by user.
NOTE—The TRACE SEP control
does not affect the trace separation
until moved through the point corre-
sponding to the trace position set by
AUTO SETUP.
HOLDOFF As adjusted by user.
CH 1 VAR, CH 2 VAR, As adjusted by user.
SEC/DIV VAR
A-4
2247A Operators
