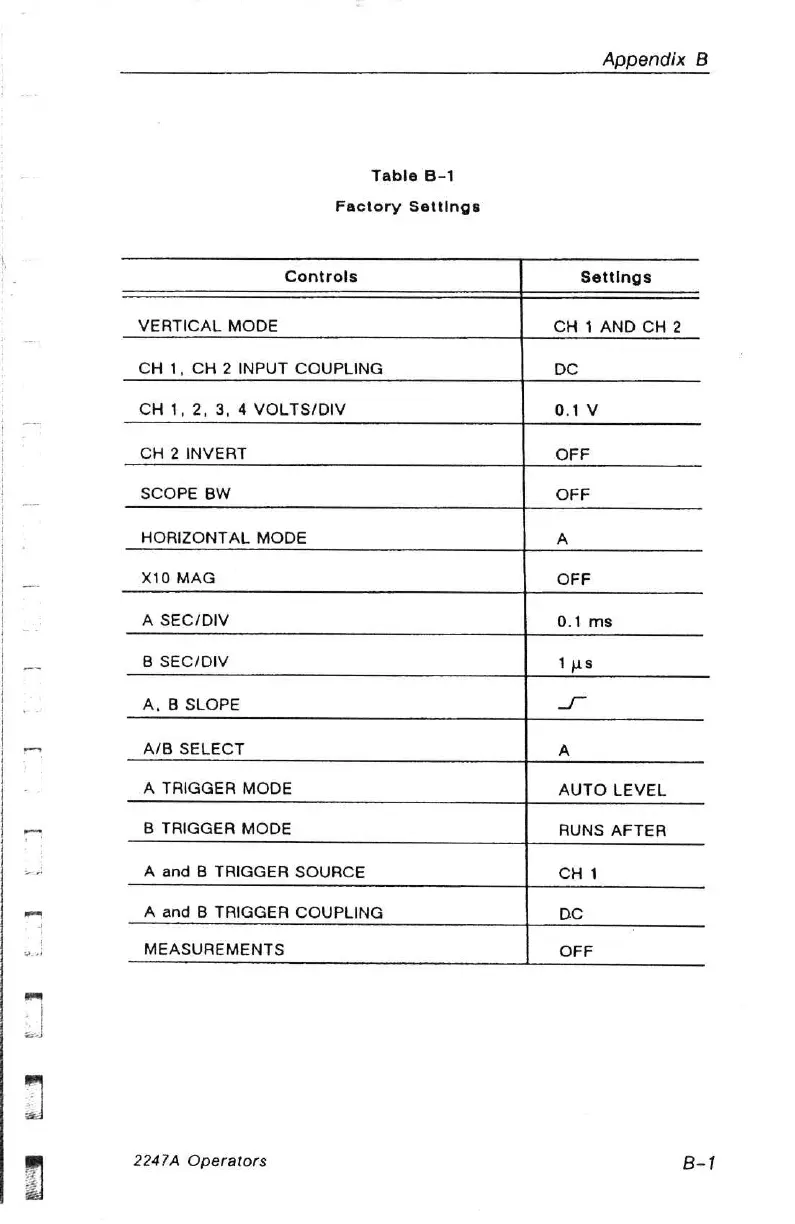

Table B-1
Factory Settings
Appendix B
Controls
Settings
VERTICAL MODE
CH 1 AND CH 2
CH 1, CH 2 INPUT COUPLING bc
CH
1, 2, 3, 4 VOLTS/DIV O1V
CH 2 INVERT OFF
SCOPE BW OFF
HORIZONTAL MODE A
X10 MAG OFF
A SEC/DIV 0.1 ms
B SEC/DIV 1ps
A, B SLOPE =
A/B SELECT A
A TRIGGER MODE AUTO LEVEL
B TRIGGER MODE RUNS AFTER
A and B TRIGGER SOURCE CH1
A and B TRIGGER COUPLING DC
MEASUREMENTS OFF
