Tektronix 2247A

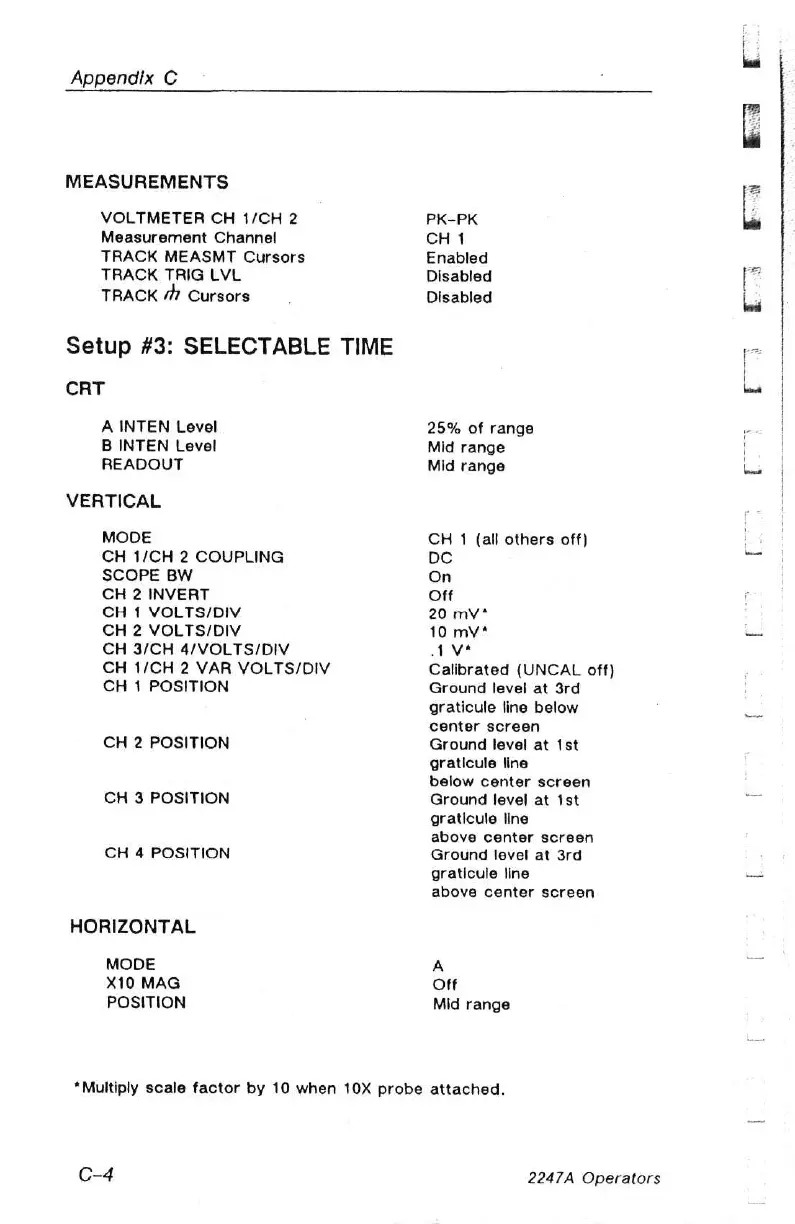

Appendix C
MEASUREMENTS
VOLTMETER CH 1/CH 2
Measurement Channel
TRACK MEASMT Cursors
TRACK TRIG LVL
TRACK ‘7 Cursors
Setup #3: SELECTABLE TIME
CRT
A INTEN Level
B INTEN Level
READOUT
VERTICAL
MODE
CH 1/CH 2 COUPLING
SCOPE BW
CH 2 INVERT
CH 1 VOLTS/DIV
CH 2 VOLTS/DIV
CH 3/CH 4/VOLTS/DIV
CH 1/CH 2 VAR VOLTS/DIV
CH 1 POSITION
CH 2 POSITION
CH 3 POSITION
CH 4 POSITION
HORIZONTAL
MODE
X10 MAG
POSITION
PK-PK
CH1
Enabled
Disabled
Disabled
25% of range
Mid range
Mid range
CH 1 (all others off)
bc
On
Off
20 mvV*
10 mV*
lV‘
Calibrated (UNCAL off)
Ground level at 3rd
graticule line below
center screen
Ground level at 1st
graticule line
below center screen
Ground level at Ist
graticule line
above center screen
Ground level at 3rd
graticule line
above center screen
A
Off
Mid range
*Multiply scale factor by 10 when 10X probe attached.
2247A Operators
