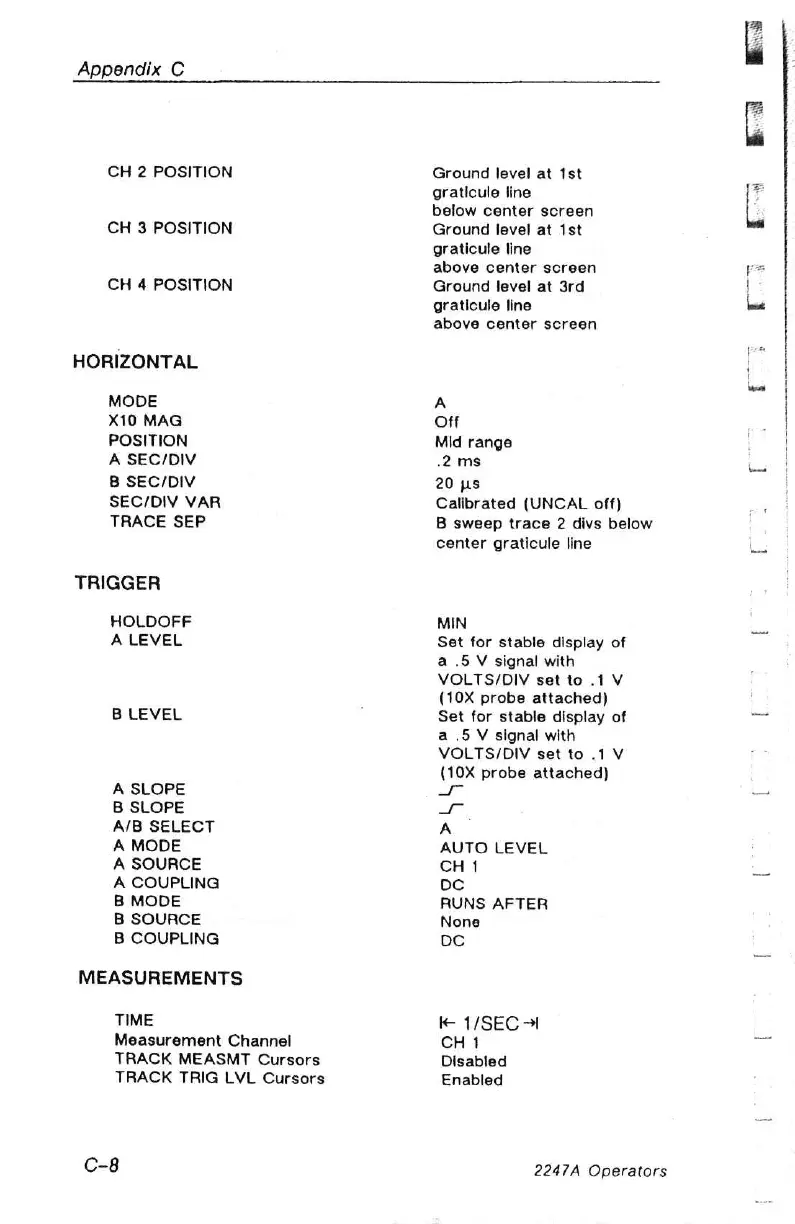

Tektronix 2247A

Appendix C
CH 2 POSITION
CH 3 POSITION
CH 4 POSITION
HORIZONTAL
MODE
X10 MAG
POSITION
A SEC/DIV
B SEC/DIV
SEC/DIV VAR
TRACE SEP
TRIGGER
HOLDOFF
A LEVEL
B LEVEL
A SLOPE
B SLOPE
A/B SELECT
A MODE
A SOURCE
A COUPLING
B MODE
B SOURCE
B COUPLING
MEASUREMENTS
TIME
Measurement Channel
TRACK MEASMT Cursors
TRACK TRIG LVL Cursors
Ground level at 1st
graticule line
below center screen
Ground level at 1st
graticule line
above center screen
Ground level at 3rd
graticule line
above center screen
A
Off
Mid range
.2ms
20 ps
Calibrated (UNCAL off)
B sweep trace 2 divs below
center graticule line
MIN
Set for stable display of
a .5 V signal with
VOLTS/DIV set to .1 V
(10X probe attached)
Set for stable display of
a .5 V signal with
VOLTS/DIV set to .1V
(10X probe attached)
=f
wh
A
AUTO LEVEL
CH1
oc
RUNS AFTER
None
oC
¢ 1/SEC 71
CH 1
Disabled
Enabled
2247A Operators
c
a
3
