Tektronix 2247A

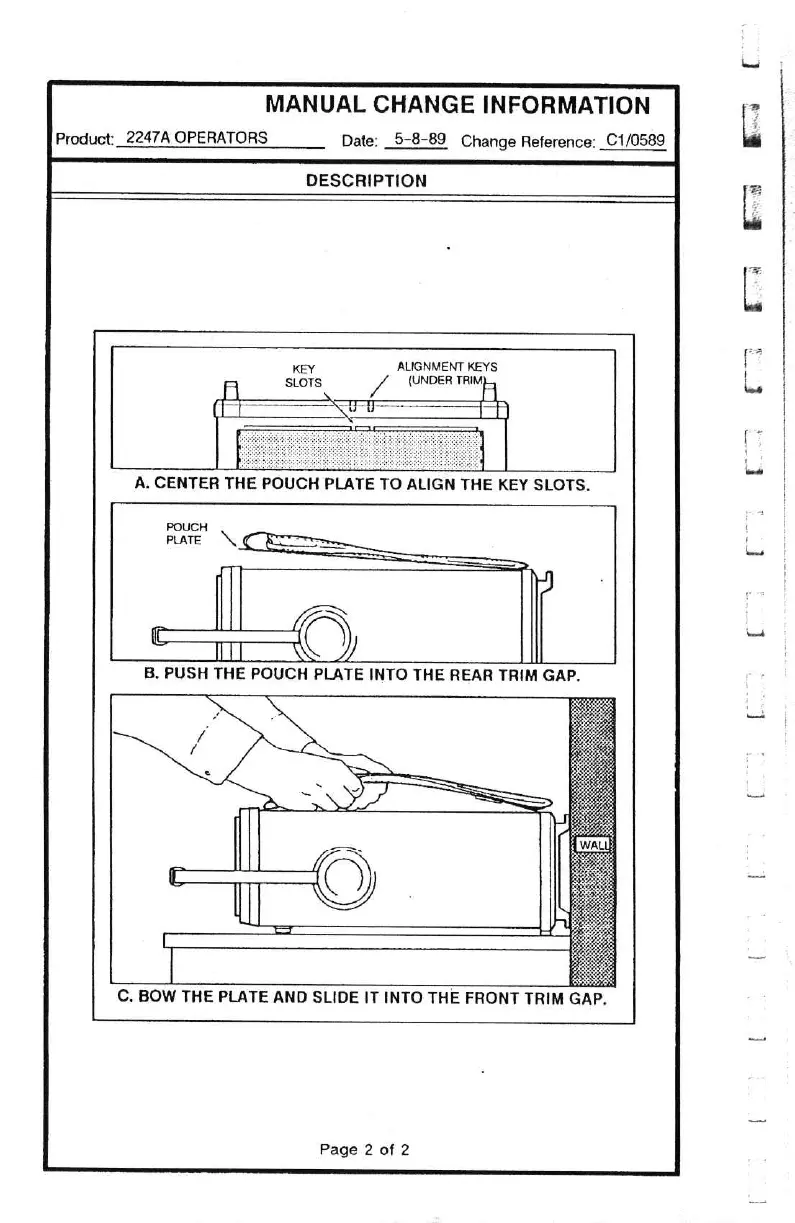

MANUAL CHANGE INFORMATION
Product: _2247A OPERATORS Date: _5-8-89 Change Reference: _C1/0589
C
DESCRIPTION
KEY ALIGNMENT KEYS
A SLOTS J (UNDER TAM
NS
A. CENTER THE POUCH PLATE TO ALIGN THE KEY SLOTS.
POUCH
pute \
le,
B, PUSH THE POUCH PLATE INTO THE REAR TRIM GAP.
WALL
C. BOW THE PLATE AND SLIDE IT INTO THE FRONT TRIM GAP.
Page 2 of 2
