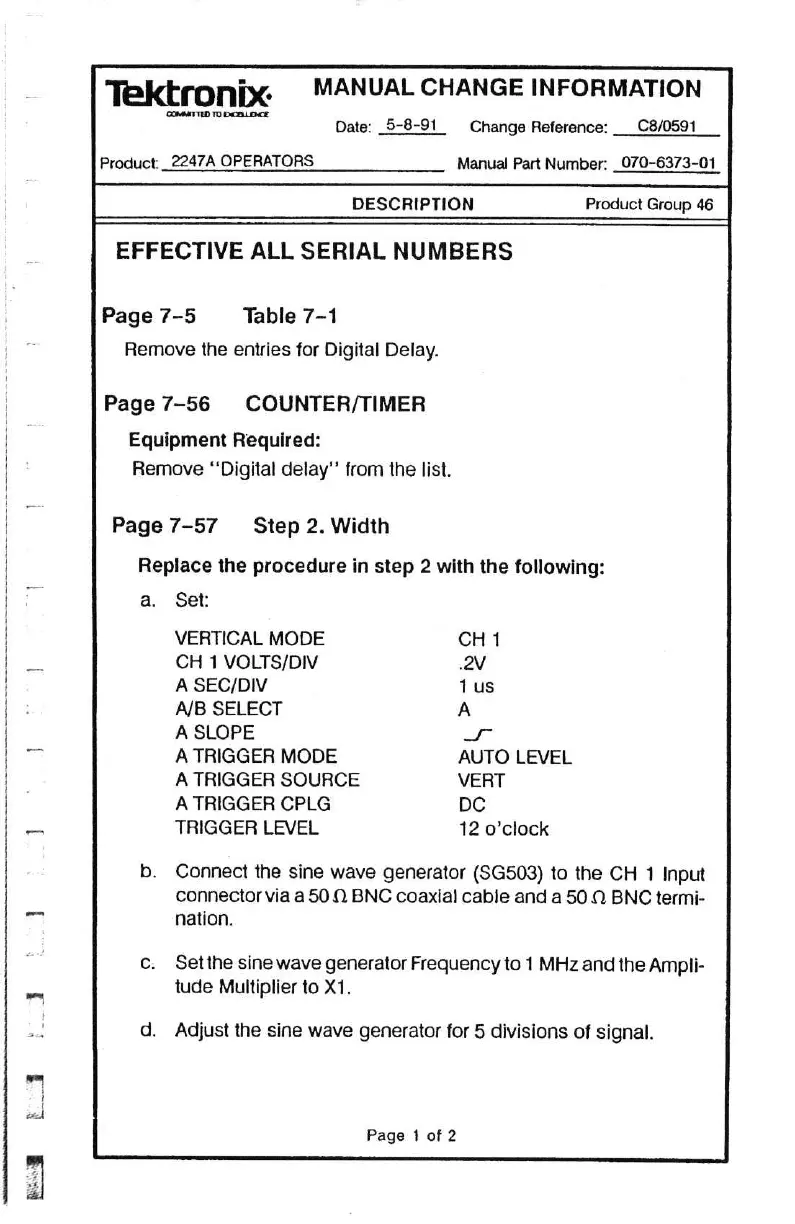

Tektronix, MANUAL CHANGE INFORMATION
Date: _5-8-91 Change Reference: ___C8/0591
Product:_2247A OPERATORS Manual Part Number: _070-6373-01
DESCRIPTION Product Group 46
EFFECTIVE ALL SERIAL NUMBERS
Page 7-5 Table 7-1
Remove the entries for Digital Delay.
Page 7-56 COUNTER/TIMER
Equipment Required:
Remove ‘“‘Digital delay”’ from the list.
Page 7-57 = Step 2. Width
Replace the procedure in step 2 with the following:
a. Set:
VERTICAL MODE CH 1
CH 1 VOLTS/DIV .2V
A SEC/DIV tus
A/B SELECT A
A
SLOPE JS
A TRIGGER MODE AUTO LEVEL
A TRIGGER SOURCE VERT
A TRIGGER CPLG Dc
TRIGGER LEVEL 12 o’clock
b. Connect the sine wave generator (SG503) to the CH 1 Input
connector via a 50. BNC coaxial cable and a 50 0 BNC termi-
nation.
c. Setthe sine wave generator Frequency to 1 MHz and the Ampli-
tude Multiplier to X1.
d. Adjust the sine wave generator for 5 divisions of signal.
Page 1 of 2
