io
i
ae
|
t3
ey
Controls,
Connectors,
and
Indicators
rosition
@)
0,0
HOLO:
MIN
SETUP
CURSORS/TIME
POSITION
OR
our
AD)
6
ry)
UNCAL
A
Au’.
Aano
B
SEC/DIV
TRACE
SEP
(}
POSITION
gO
O
6373-054

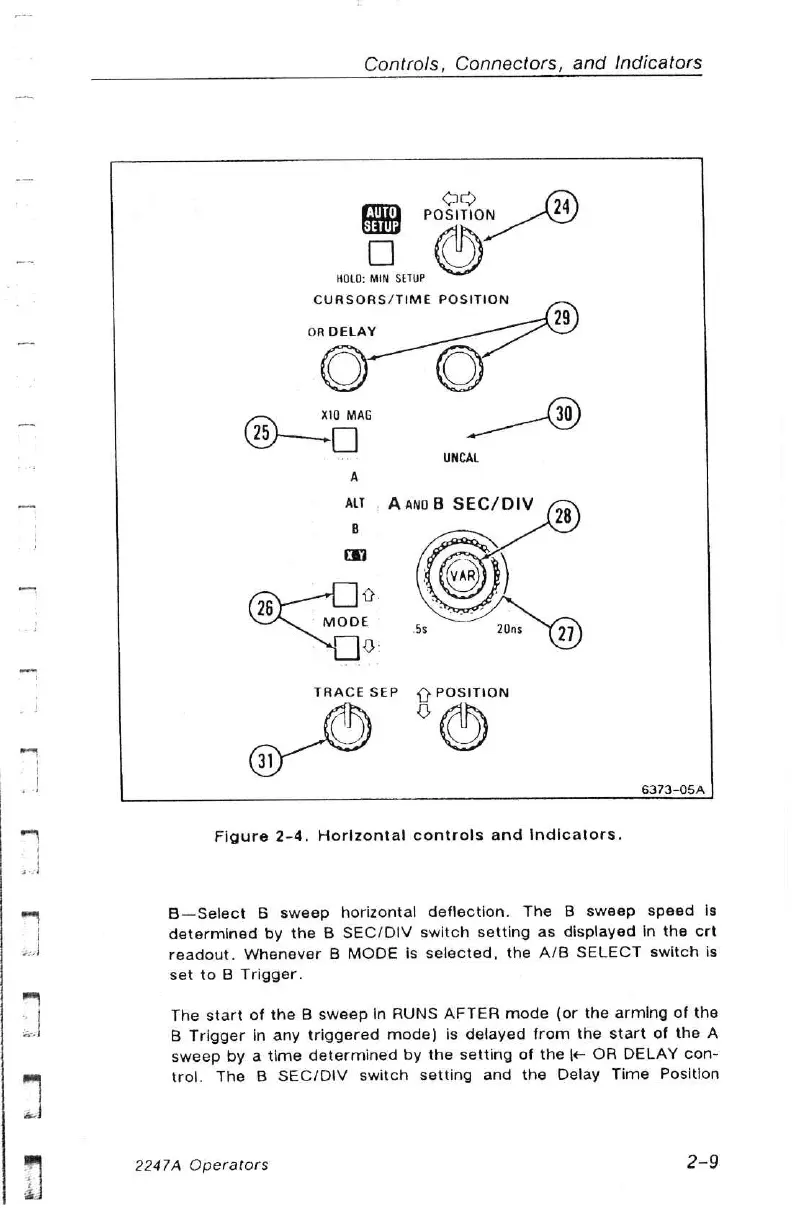

Figure
2-4,
Horizontal
controls
and
indicators.
B—Select
B
sweep
horizontal
deflection.
The
B
sweep
speed
is
determined
by
the
B
SEC/DIV
switch
setting
as
displayed
In
the
ert
readout.
Whenever
B
MODE
is
selected,
the
A/B
SELECT
switch
is
set
to
B
Trigger.
The
start
of
the
B
sweep
In
RUNS
AFTER
mode
(or
the
arming
of
the
B
Trigger
in
any
triggered
mode)
is
delayed
from
the
start
of
the
A
sweep
by
a
time
determined
by
the
setting
of
the
|-
OR
DELAY
con-
trol.
The
B
SEC/DIV
switch
setting
and
the
Delay
Time
Position
2247A
Operators
2-9
